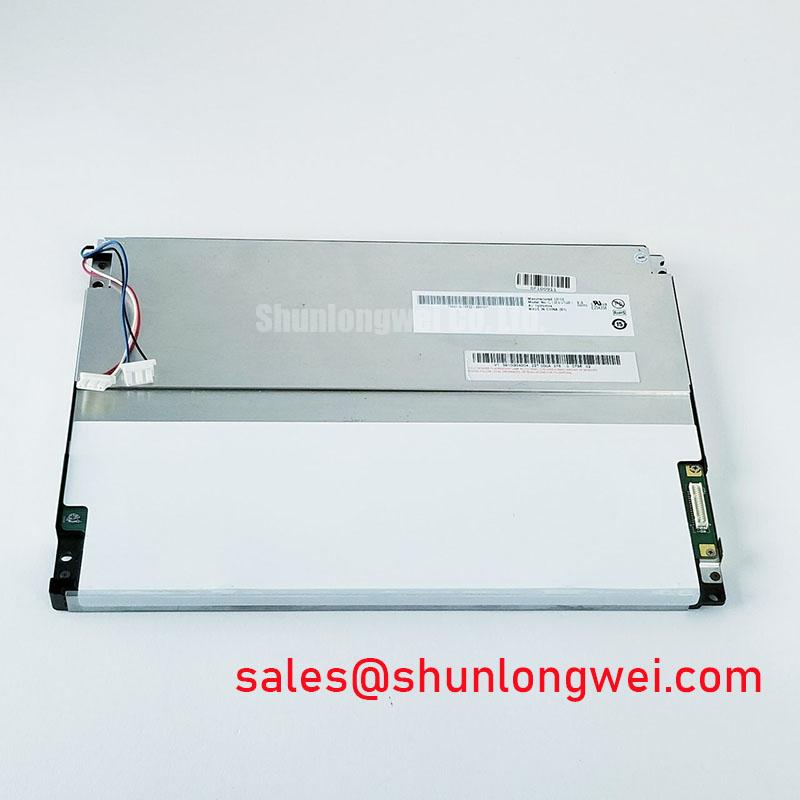

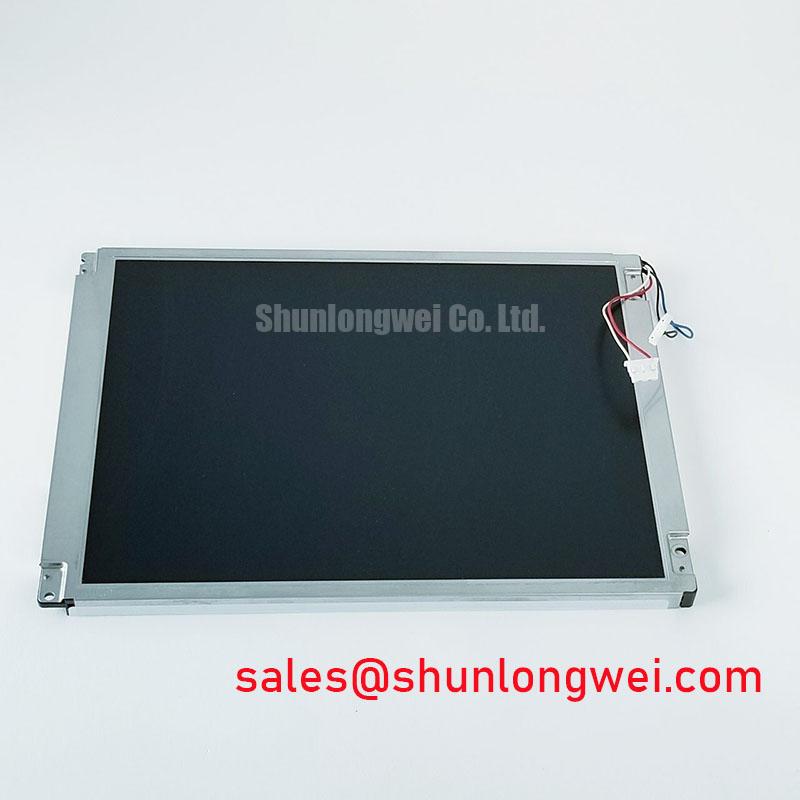

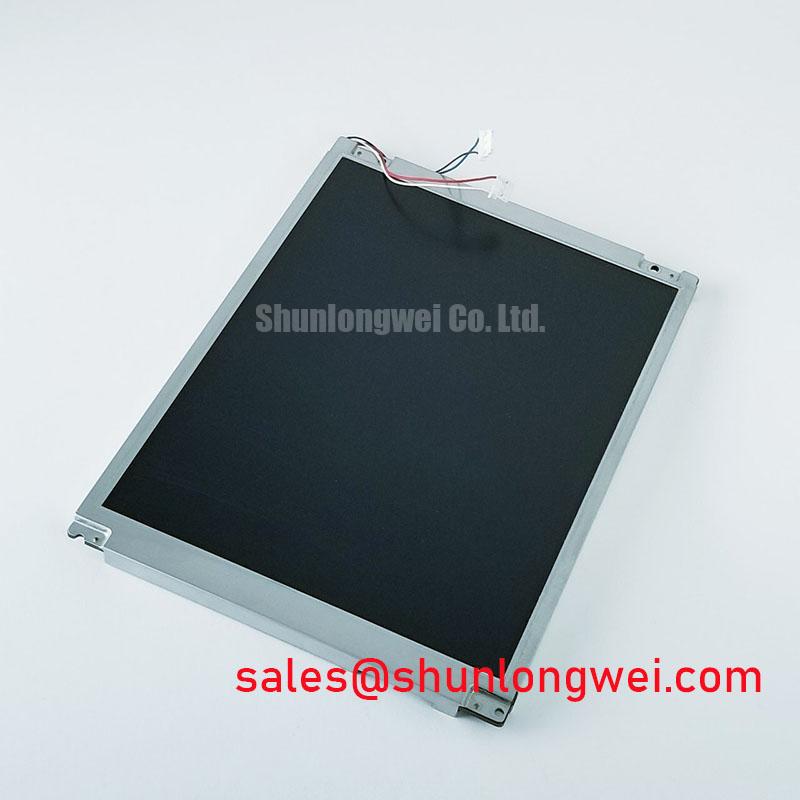

AUO G104VN01 V0 LCD Display

G104VN01 V0 is a 10.4 inch TFT-LCD display panel Made by AU Optronics Corp (AUO).

G104VN01 V0 display panel features resolution 800x600 pixels, brightness 400 cd/m², and contrast ratio 500:1. It has wide viewing angle of 170 degrees, both horizontally & vertically, suitable for use in variety of applications.

The G104VN01 V0 panel uses a 1-channel LVDS (Low Voltage Differential Signaling) interface and has response time of 16ms, use in industrial & medical equipment, point of sale systems, and other similar applications.

Brand AUO

Diagonal Size 10.4 inch

Pixel Format 640(RGB)×480  [VGA]  76PPI

Active Area 211.2(H)×158.4(V) mm

Bezel Area 214.8(H)×162.4(V) mm

Luminance 450 cd/m² (Typ.)

View Direction 6 o'clock

Viewing Angle 80/80/60/80 (Typ.)(CR≥10)

Support Color 262K   45% NTSC

Weight 490g (Typ.)

Frame Rate 60Hz

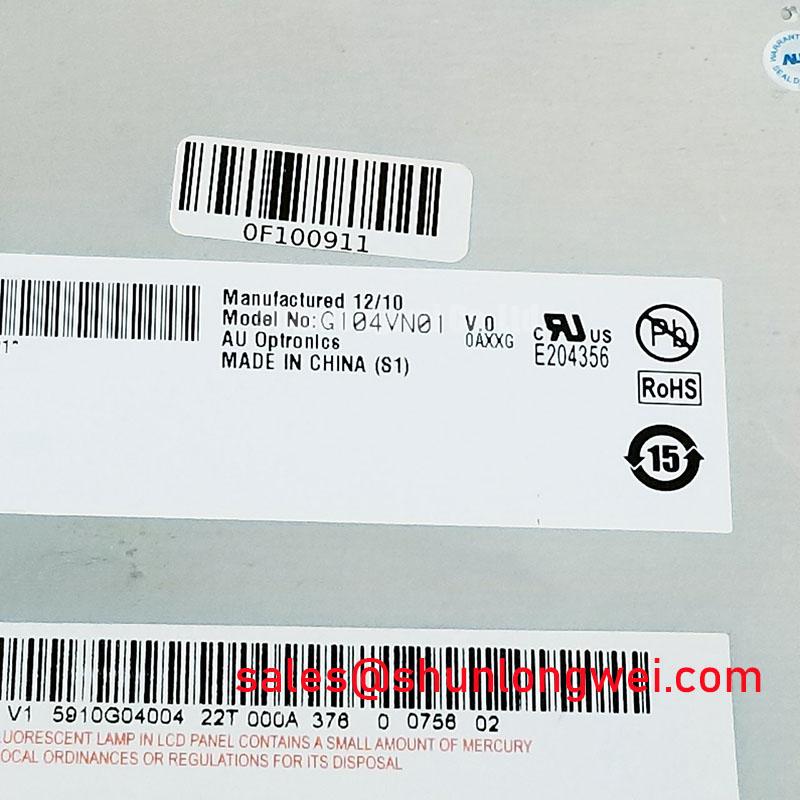

Model G104VN01 V0

Type a-Si TFT-LCD , LCM

Configuration RGB Vertical Stripe

Outline Dim. 243(H)×176.6(V) ×11.9(D) mm

Treatment Antiglare, Hard coating (3H)

Contrast Ratio 700:1 (Typ.) (TM)

Response Time 20/10 (Typ.)(Tr/Td)

Operating Mode TN, Normally White, Transmissive

Light Source CCFL  [2 pcs] , 50K hours , W/O Driver

Interface Type CMOS (1 ch, 6-bit) 31 pins Connector

Power Supply 3.3/5.0V (Typ.)(VCC)

Environment Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C
