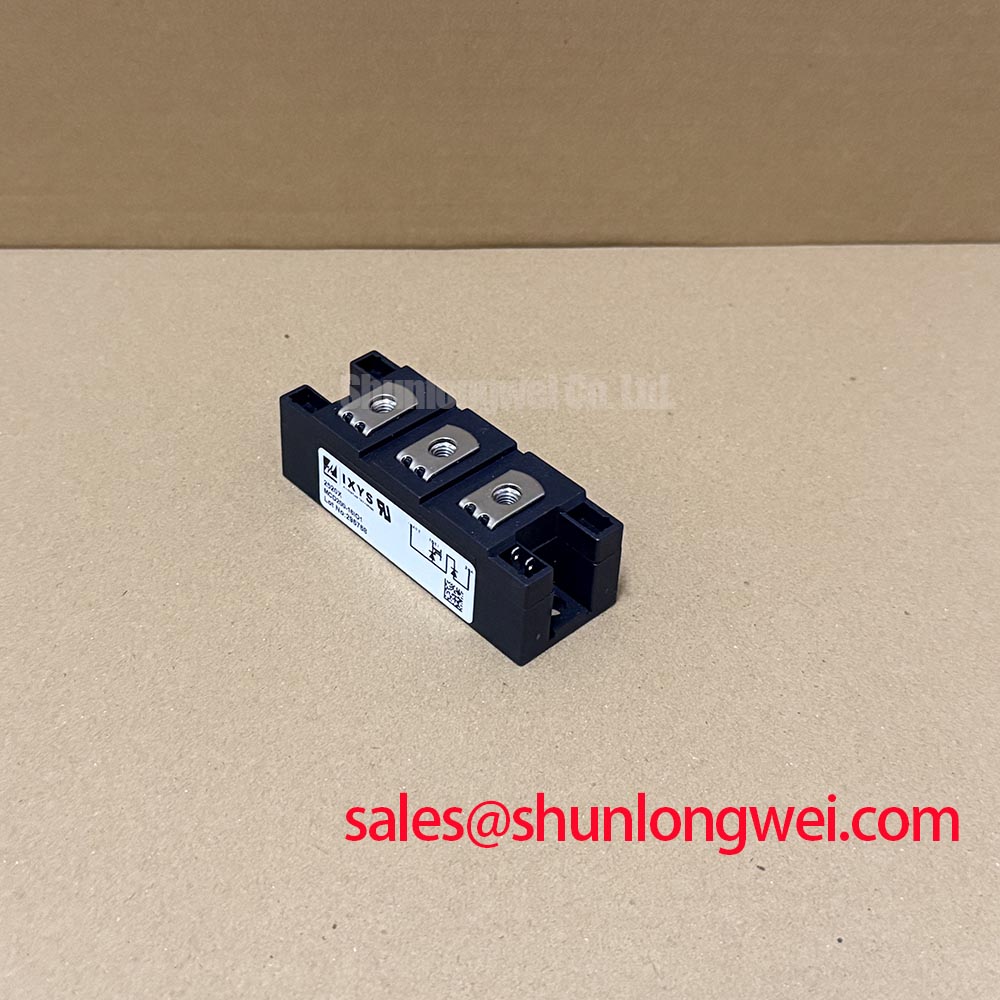

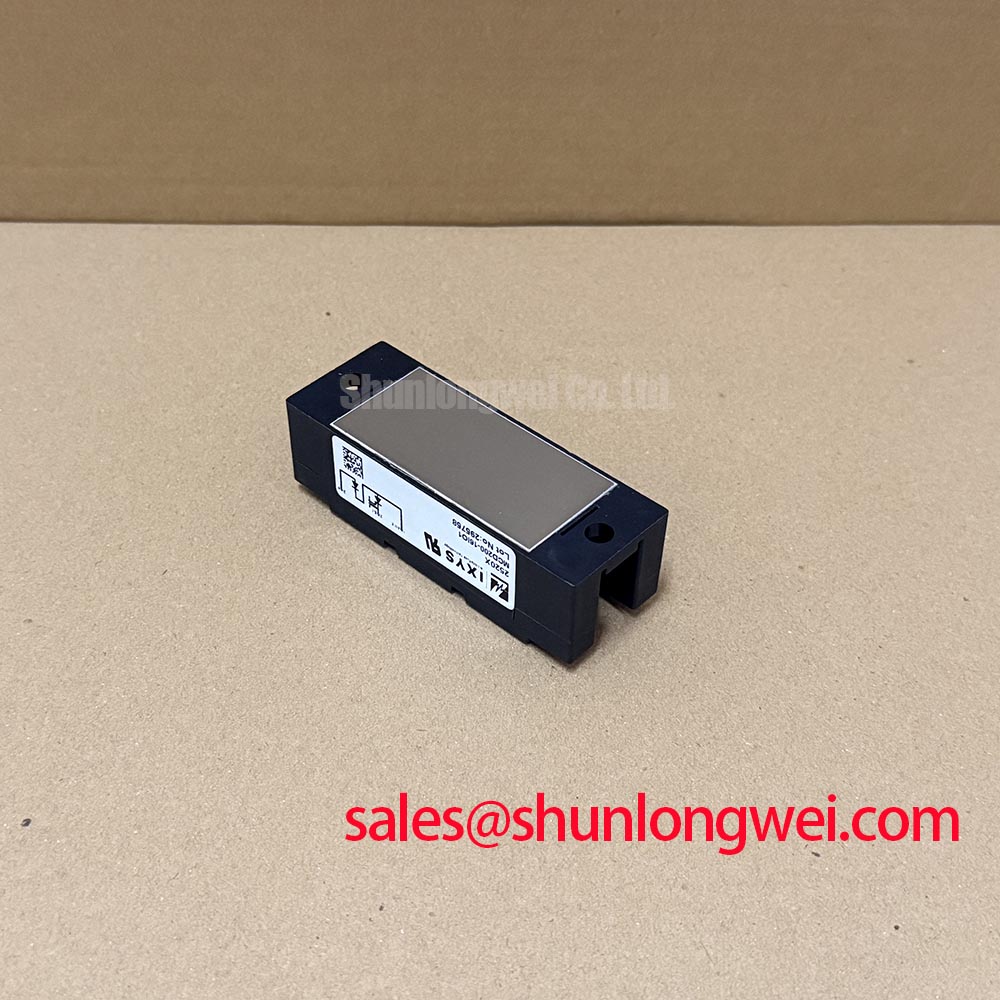

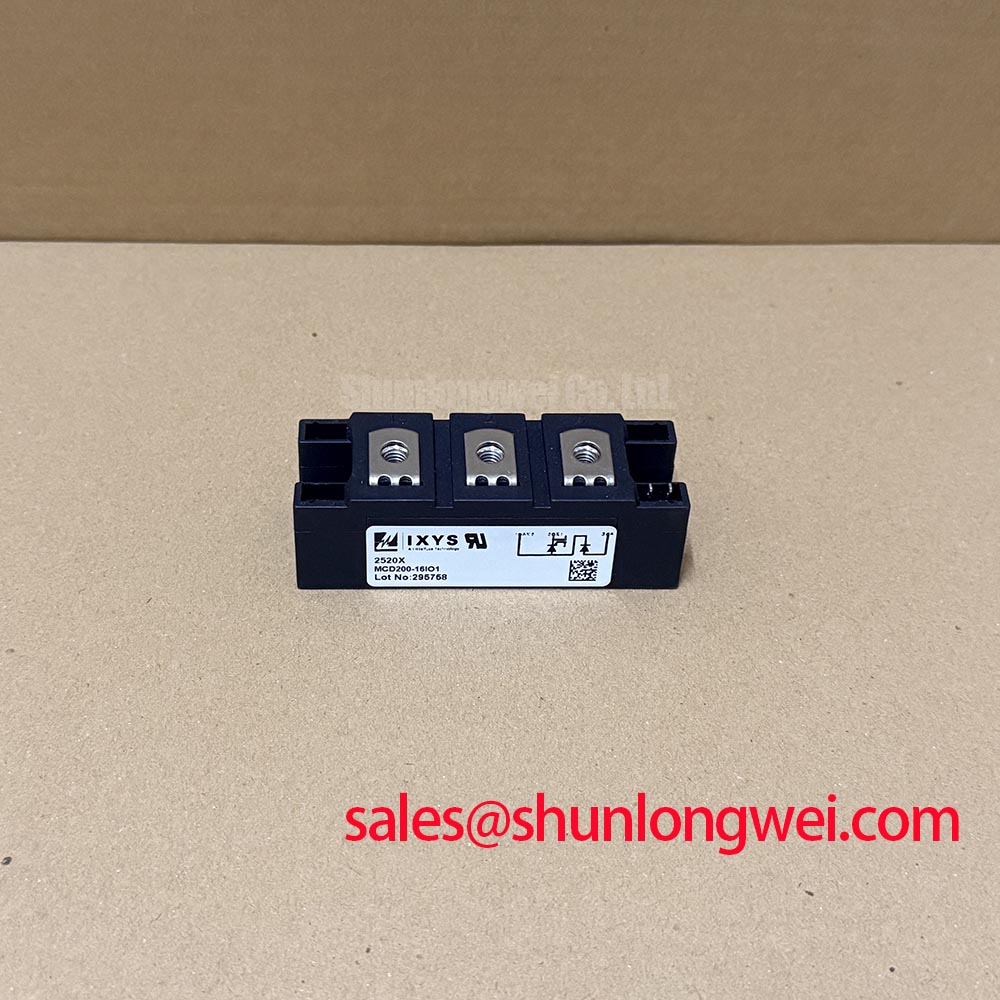

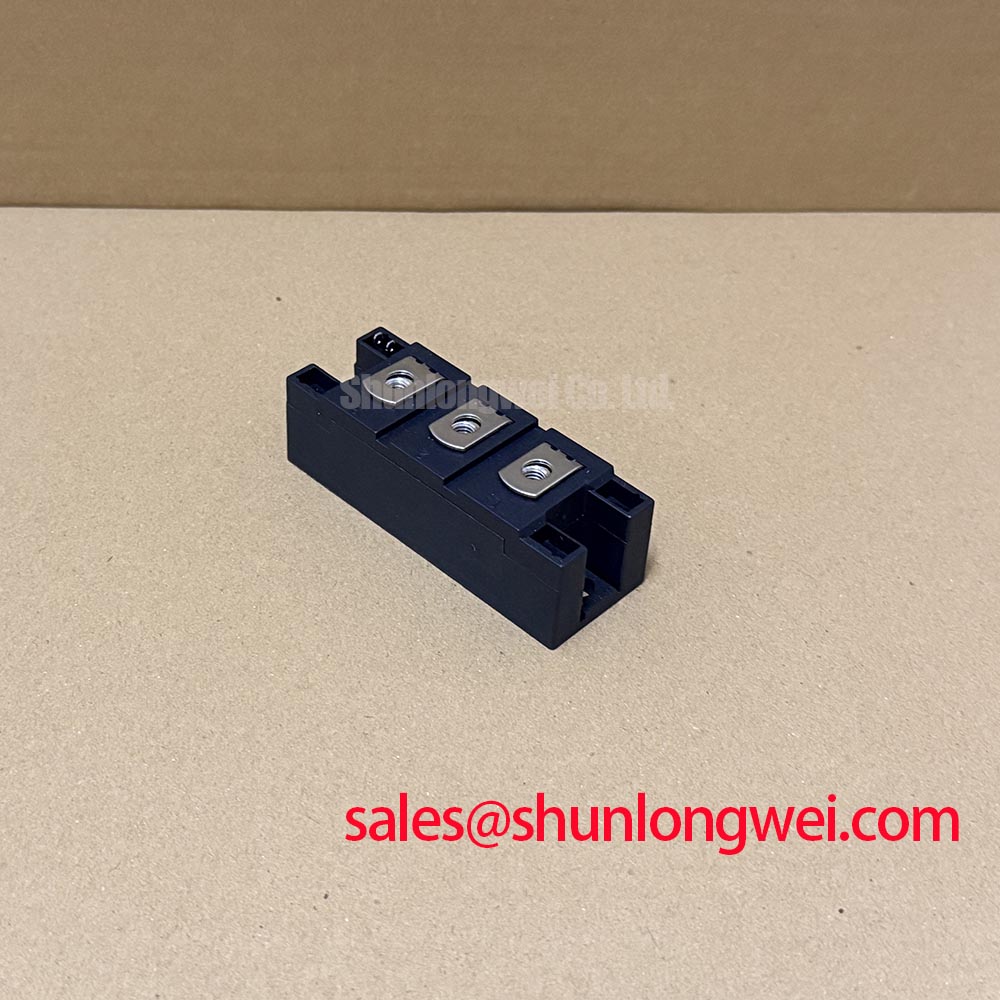

IXYS MCD200-16IO1 IGBT Module

Manufacturer Part Number: MCD200-16IO1Pbfree Code: YesPart Life Cycle Code: ActiveIhs Manufacturer: IXYS CORPPart Package Code: MODULEPackage Description: MODULE-5Pin Count: 5HTS Code: 8541.30.00.80Manufacturer: IXYS CorporationRisk Rank: 2.24Additional Feature: UL RECOGNIZEDCase Connection: ISOLATEDConfiguration: SINGLE WITH BUILT-IN DIODEDC Gate Trigger Current-Max: 150 mADC Gate Trigger Voltage-Max: 3 VDesc. of Quick-Connects: G-GRDesc. of Screw Terminals: A-K-AKHolding Current-Max: 150 mAJESD-30 Code: R-XUFM-X5Leakage Current-Max: 15 mANon-Repetitive Pk On-state Cur: 8640 ANumber of Elements: 1Number of Terminals: 5On-state Current-Max: 216000 AOperating Temperature-Max: 125 °COperating Temperature-Min: -40 °CPackage Body Material: UNSPECIFIEDPackage Shape: RECTANGULARPackage Style: FLANGE MOUNTPeak Reflow Temperature (Cel): NOT SPECIFIEDQualification Status: Not QualifiedRMS On-state Current-Max: 340 ARepetitive Peak Off-state Voltage: 1600 VRepetitive Peak Reverse Voltage: 1600 VSubcategory: Silicon Controlled RectifiersSurface Mount: NOTerminal Form: UNSPECIFIEDTerminal Position: UPPERTime Silicon Controlled Rectifier, 340A I(T)RMS, 216000mA I(T), 1600V V(DRM), 1600V V(RRM), 1 Element, MODULE-5
