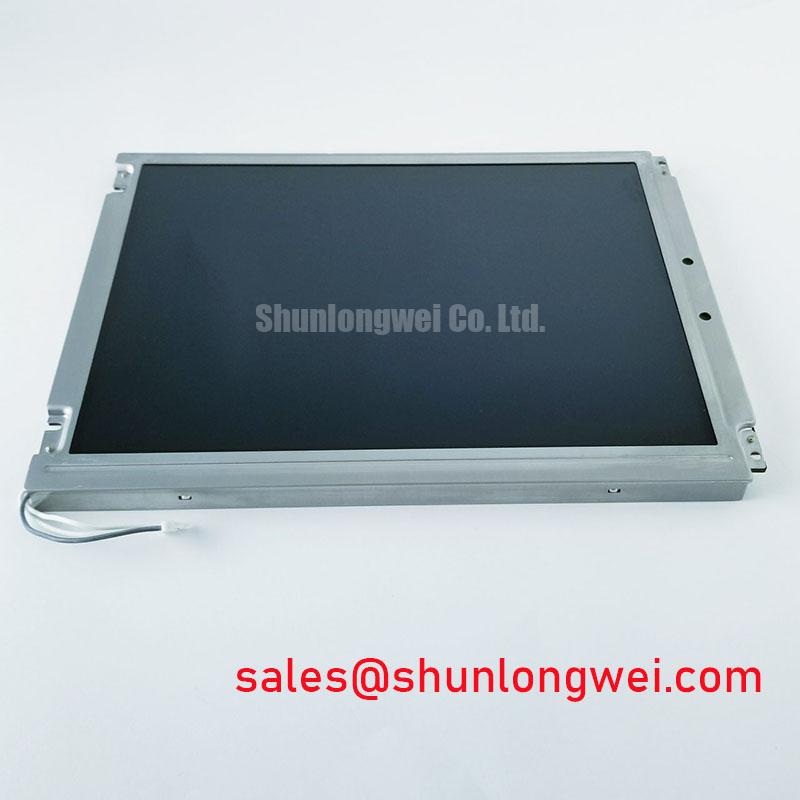

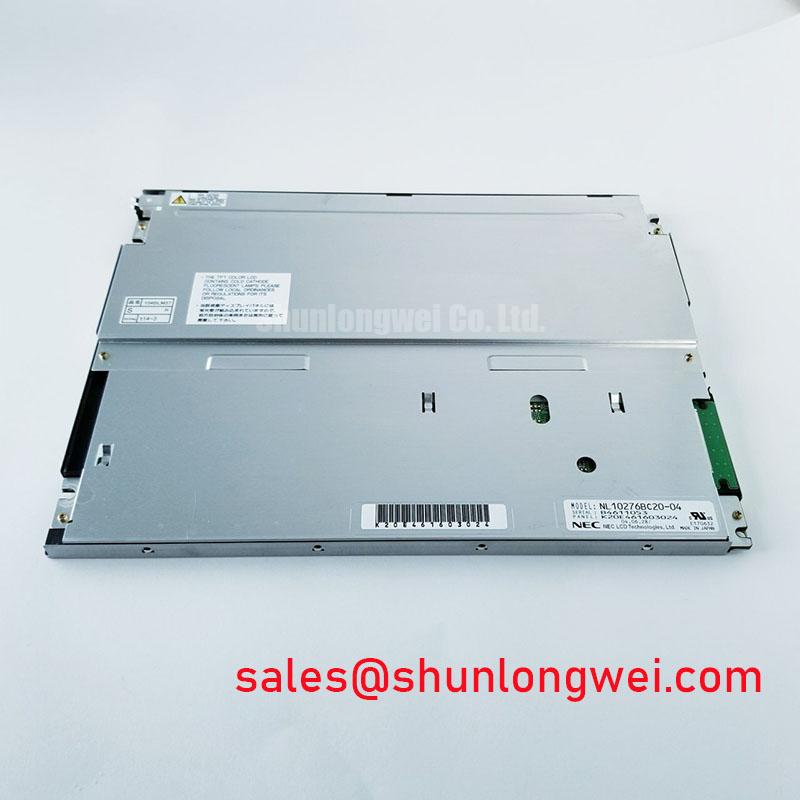

NEC NL10276BC20-04 LCD Display

Brand NEC

Diagonal Size 10.4 inch

Pixel Format 1024(RGB)×768  [XGA]  123PPI

Active Area 210.4(H)×157.8(V) mm

Bezel Area 215.4(H)×161.8(V) mm

Luminance 300 cd/m² (Typ.)

View Direction 6 o'clock

Viewing Angle 60/60/45/60 (Typ.)(CR≥10)

Support Color 262K   40% NTSC

Weight 530/550g (Typ./Max.)

Frame Rate 60Hz

Model NL10276BC20-04

Type a-Si TFT-LCD , LCM

Configuration RGB Vertical Stripe

Outline Dim. 243(H)×185.1(V) ×11.5(D) mm

Treatment Clear, Hard coating (3H)

Contrast Ratio 300:1 (Typ.) (TM)

Response Time 15/40 (Typ.)(Tr/Td)

Operating Mode TN, Normally White, Transmissive

Light Source CCFL  [2 pcs] , W/O Driver

Touch Panel Without

Interface Type LVDS (1 ch, 6-bit) 20 pins Connector

Power Supply 3.3V (Typ.)

Environment Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C
