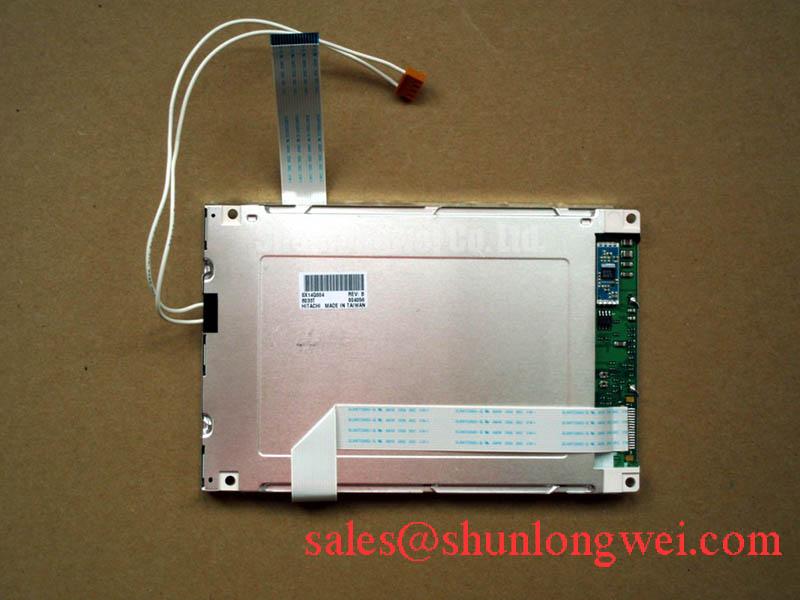

KOE SX25S003-ZZA LCD Display

Manufacturer: HITACHI Model Name: SX25S003-ZZA   Screen Size: 10.0 inch Screen Type: LCM,   CSTN-LCD Pixel Number: 800(RGB)×600   (SVGA) Arrangement: RGB Vertical Stripe Active Area(mm): 202.8 × 152.1 (H×V) Outline(mm): 236 × 168 × 7.9 (H×V×D) Bezel Area(mm): 207.0 × 156.0 (H×V) Luminance:160 cd/m² (Typ.) Contrast Ratio: 50 : 1 (Typ.) (TM)     Viewing Angle: 40 (Typ.)(CR≥2, Φ2-Φ1) Left / Right / Up / Down Response: 170/130 (Typ.)(Tr/Td) ms Good View at: 12 o'clock Work Mode: STN, Normally Black, Transmissive Color Depth: Color    Backlight: 2 pcs CCFL , No Driver Mass:  442g (Typ.) Used for: Industrial Refresh Rate: 120Hz Touchscreen: 4-wire Resistive Touch Signal Type: Parallel Data (8-bit) , Connector , 40 pins Voltage Supply: 3.3V (Typ.) Max. Ratings: Storage Temp.: -20 ~ 60 °C    Operating Temp.: 5 ~ 40 °C    SX25S003-ZZA inverter, SX25S003-ZZA power supply, SX25S003-ZZA electronic board, SX25S003-ZZA VGA board, SX25S003-ZZA touchscreen available.
