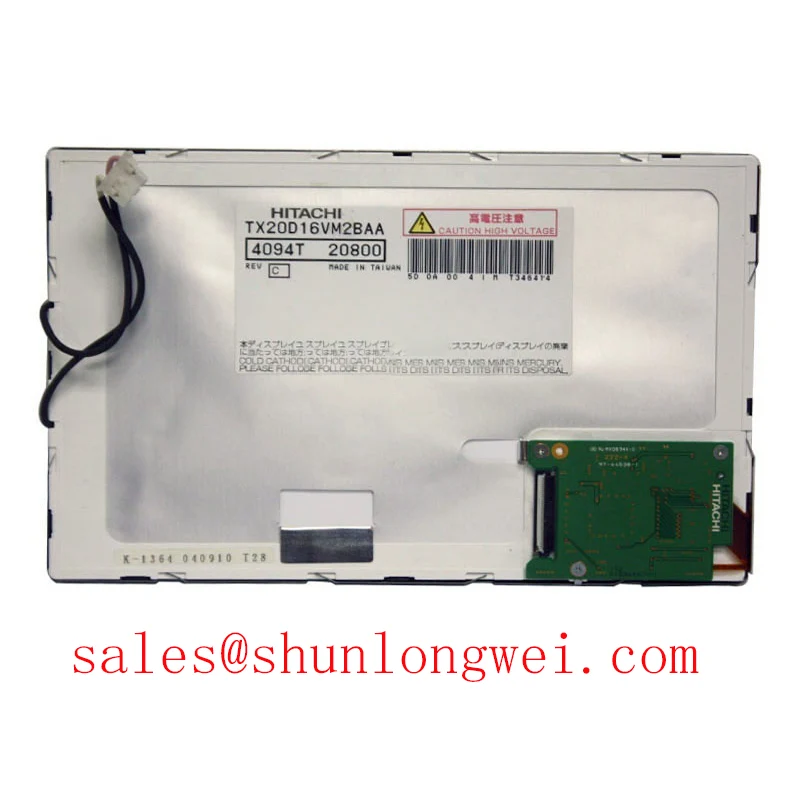

#KOE, #TX20D16VM2BAA, #LCD_Display, #LCD, TX20D16VM2BAA KOE 8 inch LCM 800×480 350 200:1 50/50/50/50 262K CCFL TTL
Diagonal Size: 8.0 inches
Panel Type: a-Si TFT-LCD, LCM
Resolution: 800(RGB)×480, WVGA
Pixel Format: RGB Vertical Stripe
Active Area: 174(W)×104.4(H) mm
Bezel Opening: 178.0(W)×108.4(H) mm
Outline Dimensions: 189(H)×120(V)×10.5(D) mm
Treatment: Antiglare
Luminance: 350 cd/m² (Typ.)
Contrast Ratio: 200:1 (Typ.)
View Direction: 12 o'clock
Response Time: 20/10 (Typ.)(Tr/Td)
Viewing Angle: 50/50/50/50 (Min.)(CR≥10) Left / Right / Up / Down
Operating Mode: TN, Normally White, Transmissive
Support Color: 262K, 68% NTSC
Light Source: CCFL (1 pcs), W/O Driver
Weight: 230g (Typ.)
Designed For: Industrial
Frame Rate: 60Hz (Panelook copyright, copy is strictly prohibited), 120Hz (60HZ Input) with Embedded MEMC Circuit, 120Hz+120Hz (120Hz Panel+120Hz Backlight), 240Hz (60HZ Input) with Embedded MEMC Circuit
Touch Panel: Without
Interface Type: CMOS (1 ch, 6-bit), 40 pins Connector
Power Supply: 3.3V (Typ.)
Operating Environment:
Operating Temperature: -20 ~ 70 °C
Storage Temperature: -30 ~ 85 °C
Vibration Level: 2.0G (19.6 m/s²)
