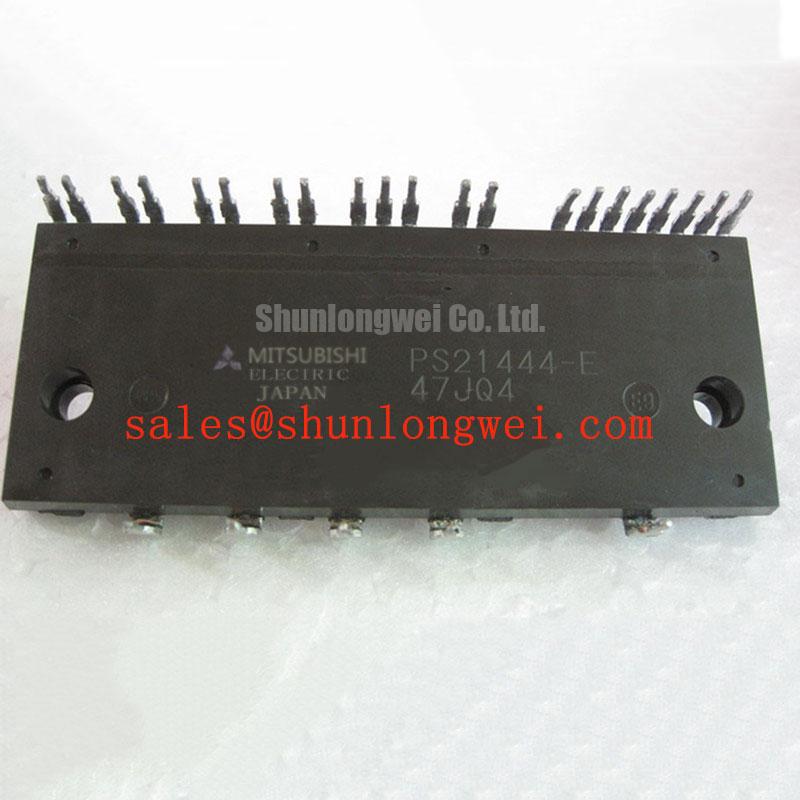

Sell MITSUBISHI PS21444-E New Stock

PS21444-E 4th generation (planar) IGBT inverter bridge for 3 phase DC-to-AC power conversion.; PS21444
  • Part Number:

    PS21444-E

  • Category:

    IGBT Module

  • Manufacturer:

    MITSUBISHI

  • Packaging:

    IGBT module

  • Data Code:

    2019+

  • Qty Available:

    332

Whatsapp / Wechat ID: +8618924651869
Email us: sales@shunlongwei.com
inquiry now
#PS21444-E MITSUBISHI PS21444-E New 4th generation (planar) IGBT inverter bridge for 3 phase DC-to-AC power conversion., PS21444-E pictures, PS21444-E price, #PS21444-E supplier
-------------------------------------------------------------------
Email: sales@shunlongwei.com

-------------------------------------------------------------------
INTEGRATED DRIVE, PROTECTION AND SYSTEM CONTROL FUNCTIONS
• For upper-leg IGBTS :Drive circuit, High voltage isolated high-speed level shifting, Control circuit under-voltage (UV) protection.
Note : Bootstrap supply scheme can be applied.
• For lower-leg IGBTS : Drive circuit, Control circuit under-voltage protection (UV), Short circuit protection (SC).
• Fault signaling : Corresponding to a SC fault (Low-side IGBT) or a UV fault (Low-side supply).
• Input interface : 5V line CMOS/TTL compatible, Schmitt Trigger receiver circuit.
Supply voltage VCC 450V
Supply voltage (surge) VCC(surge) 500V
Each IGBT collector current ±Ic(±Icp) ±15 (±30) A
Collector dissipation PC 43W
Junction temperature Tj -20~+150 °C
Control supply voltage VD 20V
Input voltage VCIN –0.5~+5.5 V
Fault output supply voltage VFO –0.5~VD+0.5 V
Fault output current IFO 15 mA
Self protection supply voltage limit VCC(PROT) 400V
Module case operation temperature Tc -20~+100 °C
Storage temperature  Tstg -40~+125 °C
Isolation voltage 60Hz, Sinusoidal, AC 1 minute, connection pins to heat-sink plate Viso 2500 Vrms

4th generation (planar) IGBT inverter bridge for 3 phase DC-to-AC power conversion.

Shunlongwei Inspected Every PS21444-E Before Ship, All PS21444-E with 6 months warranty.
