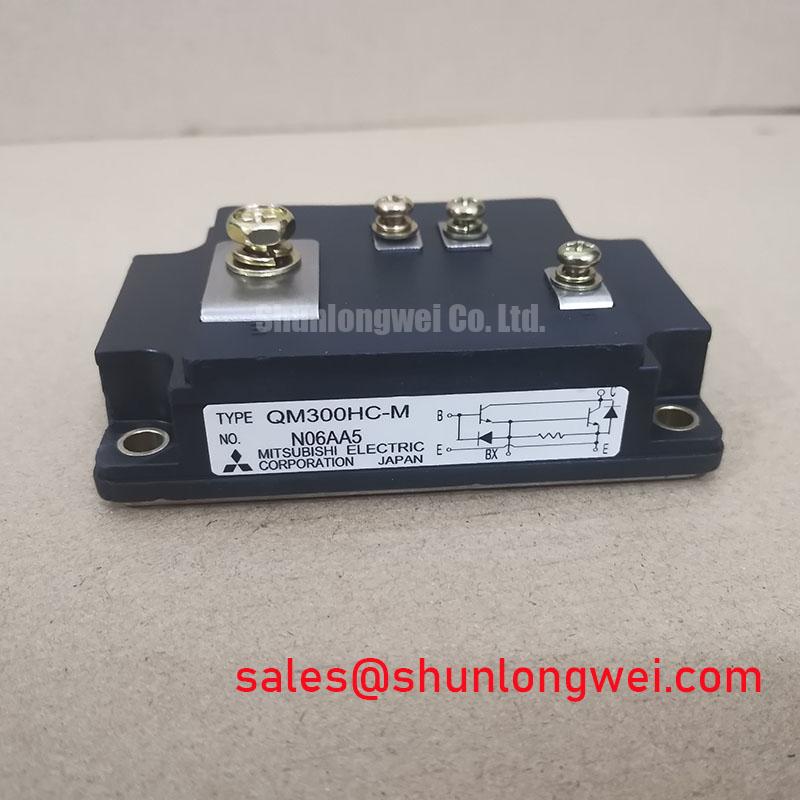

PM52AUBZ080-1 and QM300HC-M

What This Component Is and Its Industry Significance

In modern industrial electronics, solid-state power switching components form the core foundation of electrical conversion, motor speed regulation, and grid stabilization. Power modules such as the Mitsubishi PM52AUBZ080-1 and QM300HC-M are heavy-duty semiconductor devices engineered to handle substantial currents and high blocking voltages. While standard discrete transistors operate in low-power signal domains, industrial modules package multiple semiconductor dies—including insulated-gate bipolar transistors (IGBTs) or high-power Darlington transistor stages paired with anti-parallel freewheeling diodes—onto an electrically isolated copper baseplate. This architecture allows a compact physical block to govern hundreds of amperes across thousands of volts with minimal thermal stress.

Historically, the transition from electro-mechanical relays and vacuum tubes to solid-state power devices revolutionized heavy industry. The primary problem these modules solve is the efficient synthesis and regulation of alternating current (AC) from direct current (DC) links, or vice versa, without incurring crippling resistive losses. In applications such as high-voltage traction drives, pulse-width modulation (PWM) inverters, large-scale uninterrupted power supplies (UPS), and automated industrial manufacturing plants, switches must transition between non-conductive states (blocking up to several kilovolts) and conductive states (carrying hundreds of amperes) within microseconds. Without these rugged, modular switches, power conversion systems would be excessively bulky, prone to mechanical contact failure, and inefficient due to massive thermal dissipation.

The industrial significance of components like the QM300HC-M and the PM52AUBZ080-1 extends beyond primary motor control. In automated production environments, heavy power electronics share the broader electrical ecosystem with sensitive control cabinets and operator monitoring interfaces. Stable, high-efficiency power stages ensure that power line harmonics, voltage ripple, and electromagnetic disturbances remain tightly managed. This stability prevents power-line fluctuations from disrupting sensitive factory instrumentation, programmable logic controllers (PLCs), and high-reliability industrial visual consoles such as the NL6448BC26-27 display module. Understanding the electrical boundaries, thermal mechanics, and switching characteristics of these modules is essential for technicians and system designers who maintain industrial power infrastructure.

Working Principle and Physical Structure

To understand how modules like the PM52AUBZ080-1 and QM300HC-M operate, one must examine the internal relationship between voltage-controlled gate structures and current-conducting bipolar output regions. In standard bipolar junction transistors (BJTs), conducting a large collector current requires a continuous, proportional base current, leading to high driving power losses. In contrast, an Insulated Gate Bipolar Transistor (IGBT) combines the simple gate-drive characteristics of a metal-oxide-semiconductor field-effect transistor (MOSFET) with the high-current, low-saturation-voltage capability of a bipolar transistor.

Structurally, an IGBT module consists of a four-layer semiconductor sandwich (p-n-p-n) controlled by an isolated metal oxide gate. When an engineer applies a positive control voltage (typically +15 V) across the gate and emitter terminals, an electric field forms beneath the thin silicon dioxide insulation layer. This electric field attracts electrons, creating a conductive inversion channel through the p-type body region. Once this channel opens, electrons flow from the n-type emitter into the n-type drift layer. This initial electron flow acts as the base drive current for an internal p-n-p bipolar transistor structure, which responds by injecting high concentrations of minority charge carriers (holes) from the p-collector substrate into the n-drift layer.

This physical mechanism is known as conductivity modulation. By flooding the high-resistance drift region with injected electron-hole plasma, the effective on-state electrical resistance drops significantly. As a result, the forward on-state saturation voltage, designated as V_CE(sat), remains low even when conducting currents exceeding 300 A. This permits efficient conduction with low resistive thermal dissipation. Conversely, when the gate voltage is removed or dropped below the threshold voltage (or driven to a negative bias such as -5 V to -15 V for noise immunity), the inversion channel collapses. Electron supply terminates, and the device enters its forward-blocking state, withstanding voltages exceeding 1200 V or up to 3300 V depending on the specific module design.

During turn-off, because the internal n-drift layer is saturated with stored minority carriers, these carriers must either recombine naturally or be swept out by the expanding electric field. This produces a characteristic “tail current” during the turn-off transient. Module designers mitigate the duration of this tail current through localized carrier lifetime control techniques, such as electron beam irradiation. Furthermore, because high-power circuits switch inductive loads (such as motor stator windings or transformers), sudden interruption of current creates severe inductive voltage spikes (equal to L · di/dt). To protect the active switches from catastrophic avalanche breakdown, fast-recovery freewheeling diodes (FWD) are connected across the collector and emitter terminals in an anti-parallel configuration, ensuring safe energy recirculation.

Key Features, Advantages, and Technology Comparison

When selecting power modules for high-voltage industrial systems, engineers evaluate specific electrical ratings, switching speeds, conduction losses, and mechanical construction. Modules such as the QM300HC-M represent robust high-voltage, high-power designs (featuring collector-emitter voltage ratings up to 3300 V and rated collector currents around 300 A), while modules in the PM family often integrate optimized gate-drive and protection networks. Both paradigms present distinct trade-offs between switching capability, thermal impedance, and circuit complexity.

Key advantages of modern packaged power modules include:

• High Power Density: Integrating silicon dies directly onto Direct Bonded Copper (DBC) ceramic substrates isolates electrical potentials up to 2500 V_RMS or 4000 V_RMS from the mounting baseplate while providing an efficient thermal conduction path.
• Reduced Gate Drive Power: Because the gate is capacitive and insulated, static drive power is virtually zero, drastically simplifying the driving circuitry compared to current-driven bipolar Darlingtons.
• Controlled Saturation Voltage: Low V_CE(sat) characteristics reduce continuous conduction losses during the active period of PWM cycles.
• Wide Safe Operating Area (SOA): Optimized internal layout suppresses parasitic thyristor latch-up, delivering stable forward and reverse-bias safe operating envelopes under severe transient loads.

The following comparative table illustrates typical technical parameters and practical application trade-offs across different high-power switching module topologies:

High-voltage modules such as the QM300HC-M excel in traction systems, utility-scale power converters, and severe industrial motor drives where voltage spikes demand a massive 3300 V collector-emitter withstand margin. Conversely, modular integrated assemblies provide optimized gate-drive matching, reducing external component count and engineering complexity in high-frequency switching environments.

Real-World Applications and Operating Precautions

Modules with high current and voltage capabilities perform critical roles across numerous industrial automation and heavy conversion infrastructures:

• Variable Frequency Drives (VFDs): Regulating three-phase induction and permanent magnet synchronous motors in rolling mills, industrial pumps, compressors, and high-capacity elevators.
• Renewable Energy Inverters: Converting large photovoltaic arrays or wind turbine outputs into synchronized, clean multi-phase grid power.
• Auxiliary Industrial Power Units: Serving as the main high-voltage conversion stage for factory automation lines, robotics cells, and precision control instrumentation.

In highly automated manufacturing facilities, clean energy distribution from main inverters directly influences the lifespan of adjacent electronic systems. For instance, stable DC busses and low-noise switching reduce electromagnetic interference (EMI) that could otherwise distort video signals or induce flicker on factory floor visual control terminals. These include ruggedized monitors operating with Liquid Crystal Display Technology, electroluminescent systems like the EL552-256-Q1 display, and modern wide-viewing-angle interfaces built around Thin-Film Transistor Liquid-Crystal Display (TFT LCD) units such as the TX20D208VM0BAA. Proper harmonic filtering and suppression at the power module level protect these visual terminals from erratic operational lockups caused by transient ground bounce.

Operating high-capacity power modules requires strict adherence to installation, thermal, and electrical precautions:

Thermal Management and Heatsink Mounting

Dissipating hundreds of watts—up to 1800 W under heavy load conditions—demands a low thermal resistance path from junction to ambient. The module baseplate must be mounted onto a finely machined heatsink surface with a flatness tolerance of less than 50 µm across a 100 mm span. A uniform layer of high-performance thermal interface material (TIM) or thermal grease must be applied at a calibrated thickness (typically 100 µm to 150 µm). Excess grease increases thermal impedance, while insufficient grease leaves microscopic air voids that cause localized hot spots.

Mounting screws must be tightened progressively in a crosswise sequence using a calibrated torque wrench. Initial tightening should be carried out to approximately 30% of the final specification, followed by full torque application (typically between 2.5 N·m and 3.5 N·m for M5 or M6 module bolts, depending on manufacturer specifications). Neglecting uniform torque distorts the internal ceramic substrate, cracking the isolation barrier and causing catastrophic dielectric breakdown.

Parasitic Inductance and Snubber Placement

In circuits switching 300 A within 200 ns to 500 ns, even tiny parasitic stray inductances (L_σ) in the DC link busbars generate damaging voltage spikes (V_peak = V_DC + L_σ · di/dt). To suppress these transients, designers must employ laminated, low-inductance busbar geometries and mount low-inductance film snubber capacitors directly across the module collector and emitter terminals, minimizing the physical loop area.

Electrostatic Discharge (ESD) and Gate Protection

The gate oxide layer is extremely thin (often under 100 nm) and possesses an absolute maximum withstand voltage of ±20 V. Unprotected handling can permanently puncture the dielectric. Personnel must wear grounded wrist straps during assembly. In circuit operation, back-to-back Zener diodes should be positioned directly between the gate and emitter terminals to clamp stray inductive ringing, and gate resistors (R_G) must be chosen carefully to balance turn-on switching speed against peak collector-emitter recovery spikes.

Engineering Selection Guidelines and Field Diagnostics

Selecting an appropriate power module requires evaluating electrical stress limits against thermal boundaries and worst-case duty cycles. Technicians and system engineers must avoid operating components near their absolute maximum ratings. A robust selection methodology involves three key evaluations:

1. Voltage Derating Margin: For continuous industrial operation, apply a voltage safety factor of at least 55% to 65%. For a 1200 V DC bus link, a 1200 V module is inadequate due to inductive switching overshoots; a 1700 V or higher rated module (or 3300 V units like the QM300HC-M for grid/traction systems) must be selected.
2. Current and Thermal Calculations: Nominal collector current ratings (I_C) are typically specified at a constant case temperature of 25 °C. In practical enclosures where the heatsink operates at 75 °C to 90 °C, the permissible collector current derates substantially. Junction temperature (T_j) must never exceed the absolute maximum rating (typically 150 °C) under worst-case ambient temperatures. Compute the thermal junction limit using:

   T_j = T_c + P_loss · R_th(j-c)

   where R_th(j-c) is the junction-to-case thermal resistance and P_loss represents total switching and conduction losses.
3. Safe Operating Area (SOA) Boundaries: Ensure that load trajectories under hard-switching transients remain safely inside the Reverse Bias Safe Operating Area (RBSOA) and Short Circuit Safe Operating Area (SCSOA). During an output short-circuit condition, modern high-power modules generally withstand fault current for no more than 10 µs before desaturation detection circuits must shut down the gate.

When troubleshooting in the field, technicians can rapidly assess the functional integrity of an unpowered module using a standard Digital Multimeter (DMM) set to diode-test and resistance modes. The table below outlines the diagnostic matrix for a standard high-power module assembly:

Before conducting these electrical tests, the technician must discharge all high-voltage DC-bus link capacitors through an appropriate high-wattage power resistor and verify near-zero potential with a calibrated voltmeter. Gate terminals should be discharged by shorting Gate to Emitter using a 10 kΩ resistor prior to running resistance measurements. If any terminal pair indicates a short circuit (0.00 Ω) or if gate isolation is compromised, the module must be retired from service immediately. In high-power installations, defective modules should always be replaced in conjunction with thorough inspections of gate-drive boards, snubber capacitors, and power busbar connections to prevent recurring failures.
