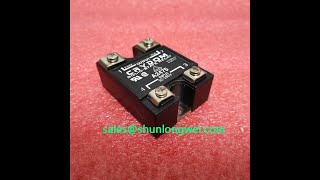

Sensata Crydom A2475 | High-Reliability Zero-Crossing AC Switching
The Sensata Crydom A2475 is not just another solid state relay; it is an engineered solution for industrial applications demanding absolute reliability and electrical silence. Designed for switching 75A AC loads up to 280VAC, this panel-mount SSR provides a robust, wear-free alternative to traditional electromechanical contactors, directly addressing the core challenges of noise, EMI, and limited lifespan in high-cycle environments.
- Core Function: High-current 75A AC Solid State Relay (SSR)
- Key Technology: Zero-crossing turn-on for minimized electrical noise and enhanced load longevity.
- Output Stage: Robust back-to-back SCR configuration for superior surge current handling.
- Typical Applications: Industrial heating control, motor starting contactors, professional lighting systems, and power conversion equipment.
- Primary Value: Delivers silent, arc-free operation with a virtually unlimited service life, drastically reducing maintenance costs and system downtime compared to mechanical relays.
The Engineering Behind Flawless AC Control
The superior performance of the Sensata Crydom A2475 stems from two fundamental design choices that directly benefit the end-user's system.
Zero-Crossing Switching: The Key to System Stability
Technical Principle: The internal control logic of the A2475 intelligently waits for the AC voltage sine wave to approach the zero-volt point before activating the output. It doesn't switch on at a random, high-voltage point in the cycle.
Application Value: This seemingly simple delay has profound benefits. For resistive loads like industrial heaters or incandescent lamps, it drastically reduces the massive inrush current, preventing premature failure of the heating elements and extending their operational life. Furthermore, it minimizes the generation of electromagnetic interference (EMI) and radio frequency interference (RFI), simplifying EMC compliance and ensuring that sensitive control electronics nearby are not disrupted.
Robust Back-to-Back SCR Output
Technical Principle: Instead of a single Triac, the A2475 utilizes two Silicon Controlled Rectifiers (SCRs) in an inverse-parallel (or "back-to-back") arrangement. This is a hallmark of industrial-grade SSR design.
Application Value: This configuration provides significantly higher surge current survivability (I²t rating). It can withstand the large, temporary current spikes associated with starting AC motors or switching transformers without degradation. This inherent toughness makes the Sensata Crydom A2475 an exceptionally reliable choice for inductive and motor loads where other relays might fail.
Where the A2475 Excels: Application-Specific Advantages
Understanding how a component solves real-world problems is key to effective system design. Here’s how the A2475 delivers tangible value across different sectors:
- Industrial Heating & Ovens: In plastics processing, food production, or furnace control, precise temperature regulation is critical. The A2475's zero-crossing switching ensures clean power delivery to heating elements, preventing EMI from interfering with temperature sensors (RTDs, Thermocouples) and PLC controllers. The result is more stable temperature profiles and longer-lasting heater elements.
- AC Motor Control: Used as a starting contactor for small to medium AC motors (e.g., in conveyor systems, pumps, and fans), the A2475 offers completely silent operation—a crucial benefit in noise-sensitive environments like commercial buildings or laboratories. Its robust SCR output easily handles the motor's locked-rotor inrush current. For more advanced speed and torque control, you might also explore our range of IGBT modules.
- Professional Lighting Systems: When controlling large banks of theatrical or architectural lighting, switching all loads simultaneously can create a massive current surge, tripping breakers. The A2475's zero-crossing feature mitigates this peak current, allowing for smooth, reliable control without stressing the building's electrical infrastructure.
A2475 Technical Specifications at a Glance
| Parameter | Value |
|---|---|
| Output Voltage Range | 24-280 VAC |
| Maximum Load Current (with heatsink) | 75A |
| Control Voltage Range | 3-32 VDC |
| Switching Type | Zero-Voltage Turn-On |
| Dielectric Strength (Input-Output) | 4000 Vrms |
| Maximum Surge Current (1 cycle) | 1100 A peak |
For a comprehensive list of specifications, please download the A2475 Datasheet.
Choosing the Right Switching Method: A2475 vs. Random Turn-On SSRs
A common selection question is when to use a zero-crossing SSR like the A2475 versus a random turn-on model. The choice depends entirely on the load type. The A2475 is the ideal choice for most common applications, especially resistive loads (heaters, lamps) and some motor loads, where minimizing inrush current and EMI is the priority. Random turn-on SSRs, which switch instantly upon receiving a control signal, are better suited for highly inductive loads (e.g., transformers, solenoids) or phase-angle control applications where precise timing relative to the control signal is more important than inrush current mitigation.
If the Sensata Crydom A2475 aligns with your project's need for silent, reliable, and clean AC power switching, our team is ready to provide technical support and competitive pricing. Contact us for a quote to discuss your specific application requirements.
