HAS 50-S/SP16 IGBT Module

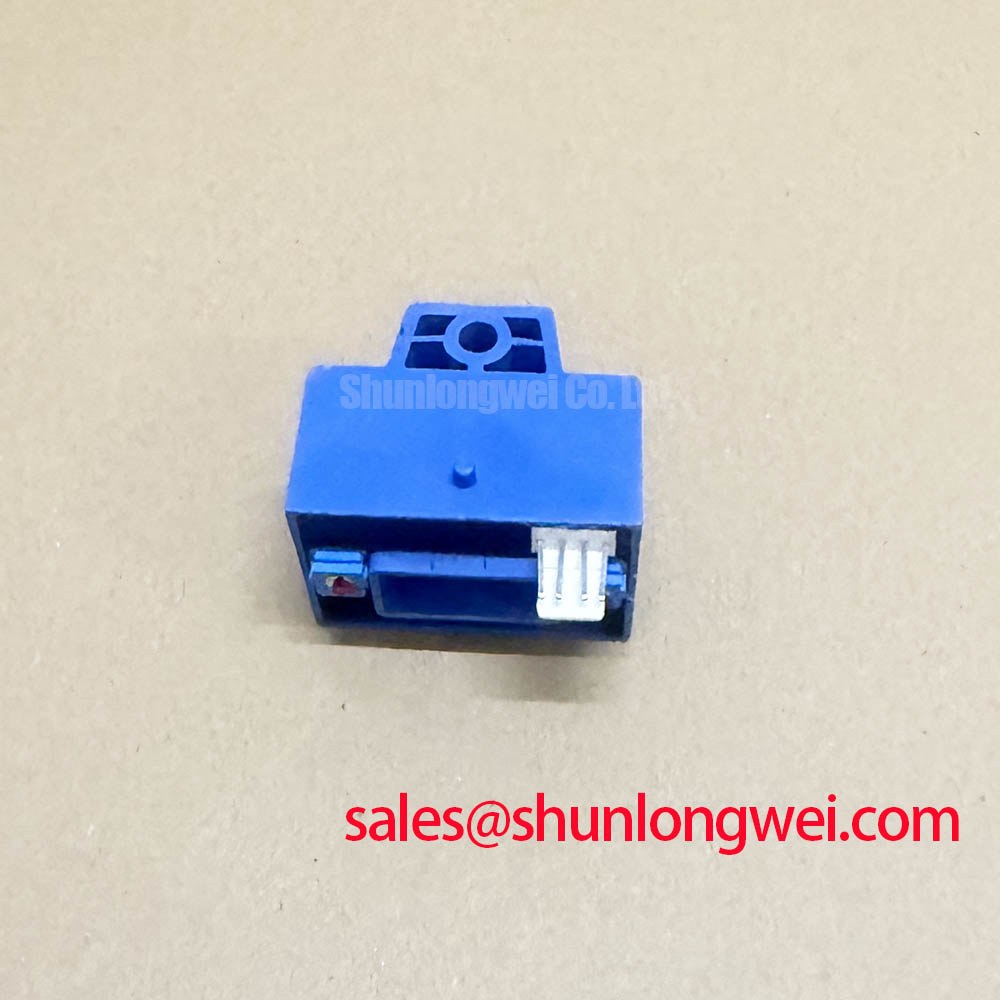

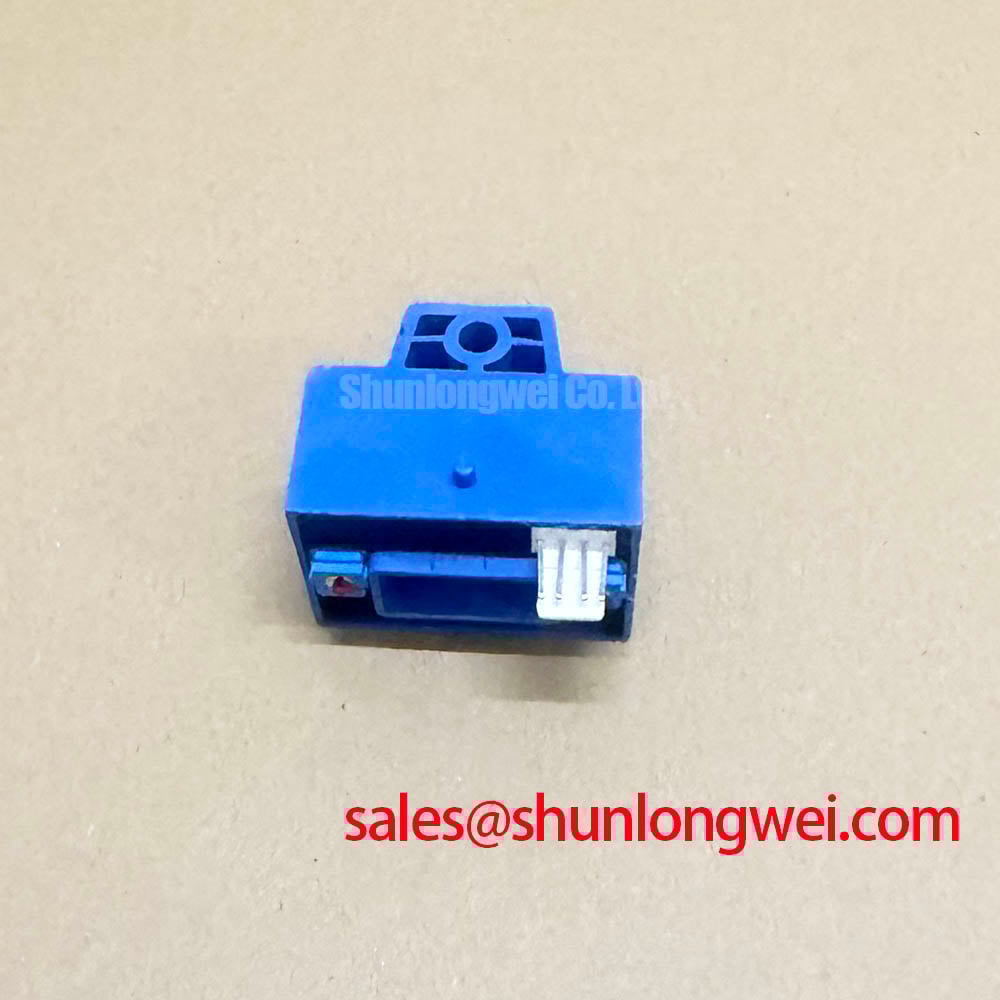

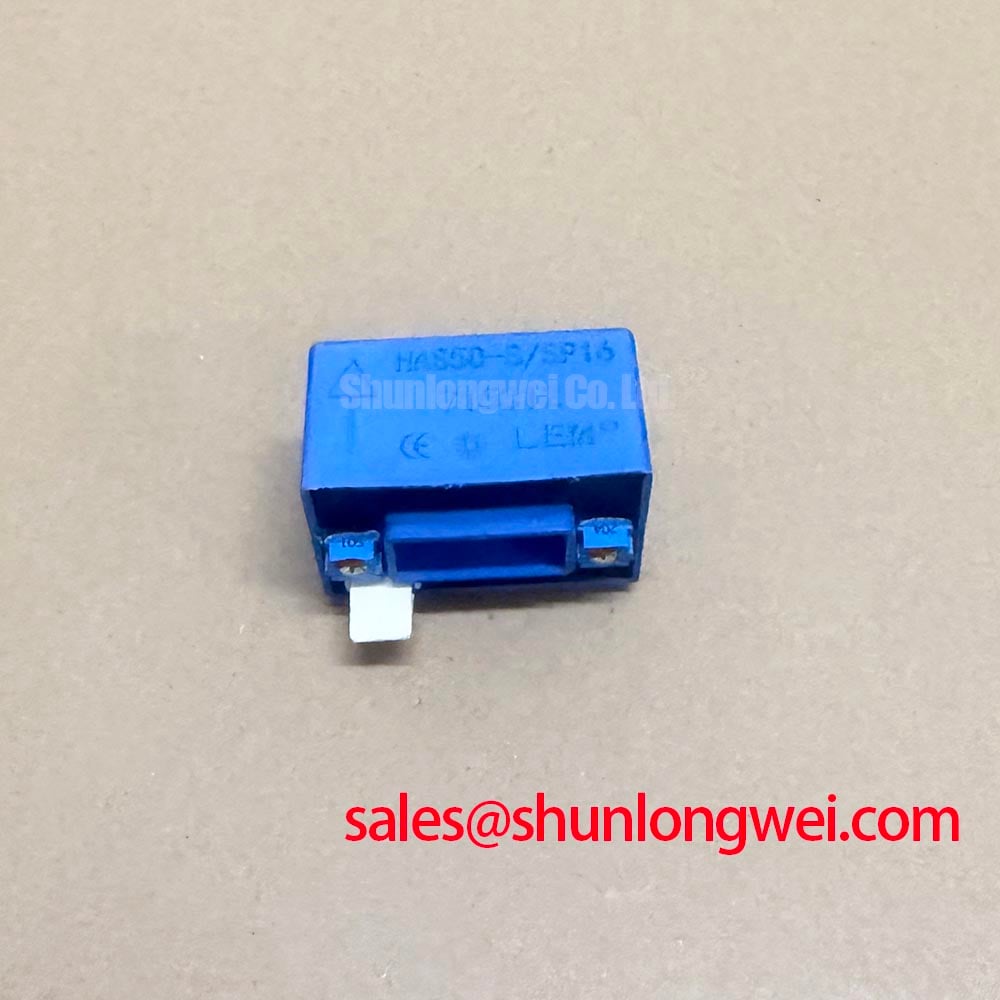

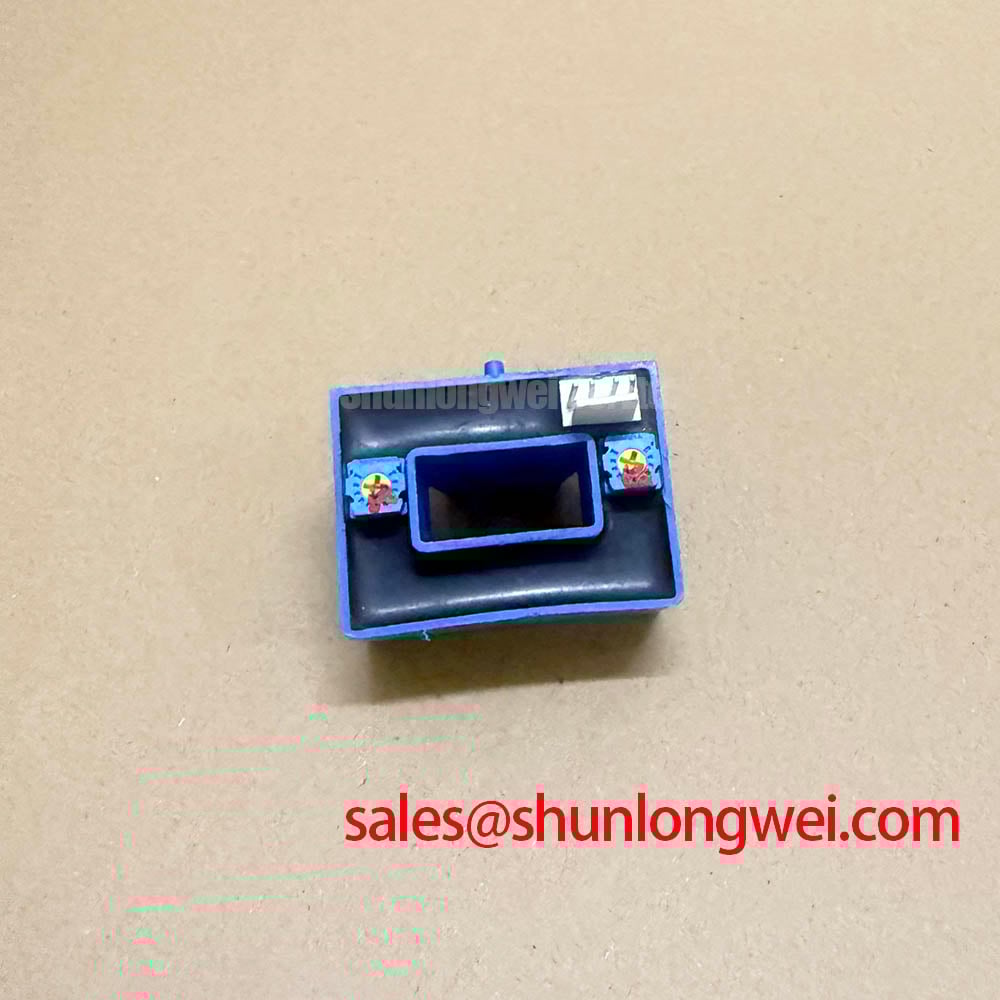

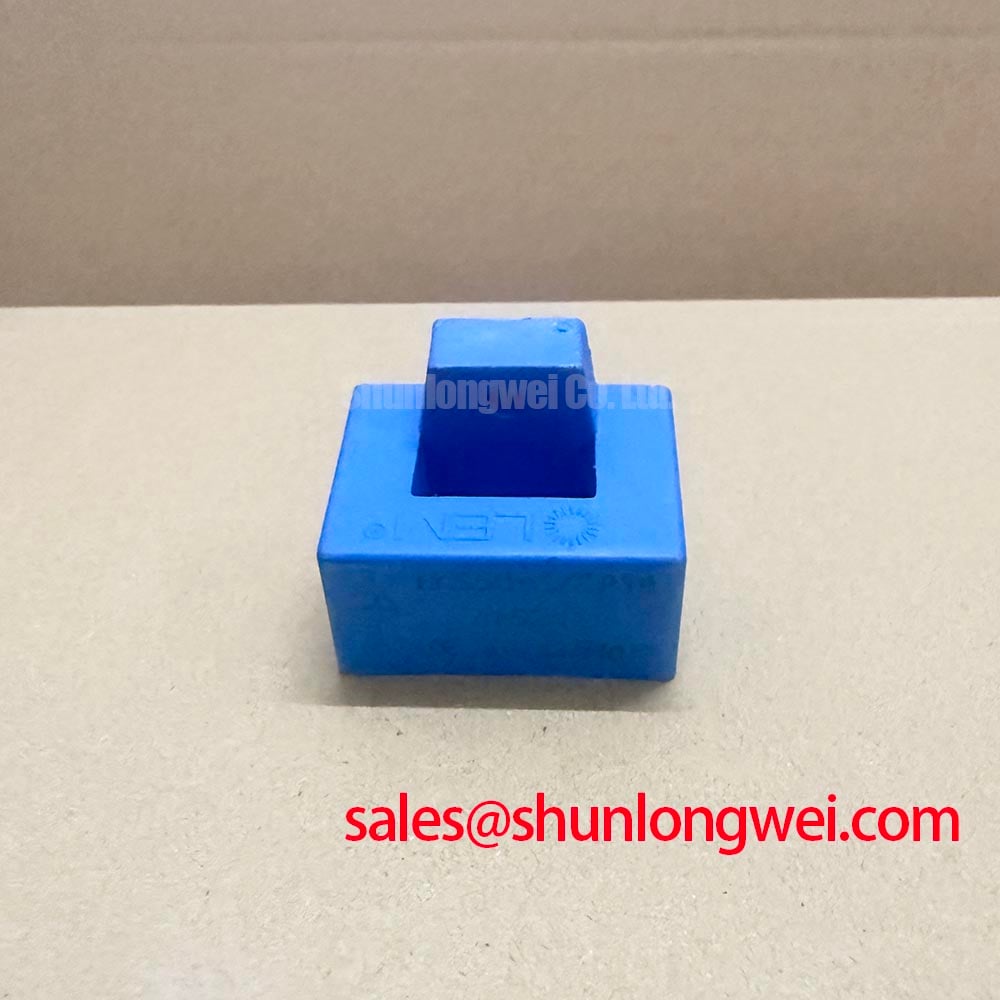

LEM HAS 50-S-SP16 | Precision Hall Effect Current Transducer for Power Conversion Systems

In high-performance power electronics, control is everything. The precision of your feedback loop directly dictates the efficiency, reliability, and safety of your entire system. The LEM HAS 50-S-SP16 is an engineering-focused current transducer designed to provide the high-fidelity feedback that modern power systems demand. It is not merely a component; it is a cornerstone of system stability, enabling engineers to push the performance envelope in applications ranging from industrial motor drives to renewable energy inverters.

• Unmatched Accuracy: Leveraging closed-loop Hall effect technology, the HAS 50-S-SP16 delivers exceptional linearity and minimal thermal drift, ensuring your control system receives a true representation of the current under all operating conditions.
• Broad Application Spectrum: With a 50A nominal current rating and the ability to measure DC, AC, and pulsed waveforms, this transducer offers the versatility required for a wide array of power conversion tasks.
• Robust Galvanic Isolation: Provides critical safety separation between the high-power current path and sensitive control electronics, enhancing system robustness and simplifying design for regulatory compliance.
• Optimized for Integration: Its compact, PCB-mountable footprint is engineered for high-density designs, allowing for shorter, cleaner signal paths and reduced overall system size.

The Core of Precision: Closed-Loop Hall Effect Technology

Unlike basic open-loop sensors, the LEM HAS 50-S-SP16 employs a sophisticated closed-loop architecture. In this configuration, the magnetic field generated by the primary current is actively canceled out by a secondary compensation coil. The current required to achieve this magnetic null point is measured, providing an extremely accurate and linear image of the primary current. This technique virtually eliminates the non-linearity and thermal drift issues that can plague lesser sensors. For a system designer, this translates directly into more stable control loops, reduced torque ripple in motors, and more predictable system behavior across the entire operating temperature range. This level of precision is fundamental when controlling sophisticated IGBT modules, where inaccurate current readings can lead to suboptimal performance and increased switching losses.

Engineered for Safety: Galvanic Isolation

In power electronics, isolating the high-voltage power stage from the low-voltage control logic is not optional—it's a critical safety and operational requirement. The HAS 50-S-SP16 features integrated galvanic isolation, creating a robust dielectric barrier that prevents dangerous voltages from reaching the microcontroller or DSP. This isolation also breaks potential ground loops, a common source of noise that can corrupt measurements and destabilize the system. By integrating this feature, the transducer simplifies the design process and helps ensure the long-term reliability of the entire application.

Optimized for Demanding Power Applications

The technical advantages of the HAS 50-S-SP16 translate into tangible benefits across several key industrial applications.

• Variable Frequency Drives (VFDs): The sensor's fast response time and high accuracy enable precise vector control of AC motors. This allows for maximum torque output, superior energy efficiency, and reliable overcurrent protection for the drive's power stage, which might utilize robust components like the SEMIX453GB12VS.
• Uninterruptible Power Supplies (UPS): In online UPS systems, accurate and instantaneous current measurement is vital for load management, battery charging control, and fast detection of fault conditions. The HAS 50-S-SP16's ability to measure both AC and DC currents makes it ideal for these complex systems.
• Servo Drives and Robotics: Precision is paramount in robotics. The excellent linearity and low temperature drift of this transducer ensure that robotic arms and servo motors can execute movements with high repeatability and accuracy, a topic we explore further in our guide to powering precision in robotic servo drives.

Key Parameters Overview

This table provides a snapshot of the critical performance specifications for a design engineer. For a complete list of specifications, you can download the official datasheet.

Frequently Asked Questions for Design Engineers

How does the single +5V supply simplify my design?
The ability to operate from a single +5V rail is a significant advantage. It eliminates the need for a negative supply voltage and the associated components (such as a charge pump or isolated DC-DC converter), which reduces bill of materials (BOM) cost, saves valuable PCB space, and simplifies power supply sequencing. This allows the sensor to be powered from the same supply rail as the microcontroller or ADC in many designs.

What is the primary advantage of a closed-loop transducer over an open-loop one in a motor control application?
The key advantages are superior linearity and lower thermal drift. In a high-performance motor drive, these characteristics ensure that the commanded torque is precisely delivered by the motor, regardless of load or operating temperature. This results in smoother operation, higher efficiency, and eliminates performance degradation as the system heats up—a critical factor for industrial automation and robotics.

How does this sensor contribute to IGBT protection?
Its fast response time is crucial for effective protection. When a short-circuit or overcurrent event occurs, the HAS 50-S-SP16 can detect the current spike in under 3 microseconds. This rapid feedback allows the gate drive controller to shut down the IGBTs before the current exceeds the device's Safe Operating Area (SOA). This immediate action is a key strategy in preventing catastrophic failures, a concept detailed in our analysis of IGBT failure modes.
