IGBT Module Showdown: APT75GT120JRDQ3 vs. A2450 Crydom—Technical Comparison and Industrial Applications

What This Component Is and Its Industry Significance

Modern electrical engineering relies on solid-state power switches to control, convert, and regulate electrical energy across industrial, commercial, and utility systems. When designing power stages, engineers often evaluate two distinct approaches to solid-state load control: fully controllable transistor-based modules, such as the APT75GT120JRDQ3, and line-commutated solid-state relays (SSRs), exemplified by the Crydom A2450. Understanding the functional boundaries and performance trade-offs between these two components is essential for selecting the correct component for a given application.

The APT75GT120JRDQ3 is an insulated-gate bipolar transistor (IGBT) power module developed by Advanced Power Technology (now part of Microsemi / Microchip). Rated for a high collector-emitter breakdown voltage (V_CES) of 1200V and an operating collector current (I_C) around 75A to 100A (depending on case temperature), this device integrates a high-speed IGBT with a fast-recovery anti-parallel freewheeling diode (FRED). In legacy technical literature and digitized catalogs, errors occasionally emerge where OCR scrapers combine columns or misread tables—such as mistakenly quoting an impossible continuous current rating like “9742A” instead of distinct ratings like 97A at 25°C and 42A at 100°C. In reality, the APT75GT120JRDQ3 is engineered for medium-to-high power conversion platforms requiring active gate control, precise high-frequency switching, and robust voltage-blocking capabilities.

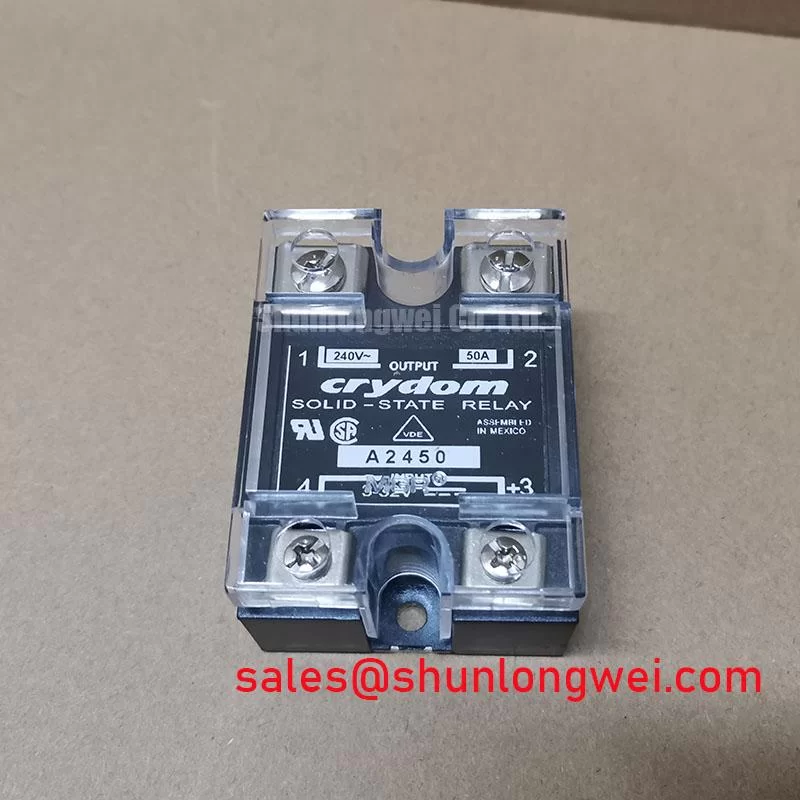

In contrast, the Crydom A2450 belongs to the family of alternating current (AC) solid-state relays. Built with an internal optocoupler and dual back-to-back silicon-controlled rectifiers (SCRs) or a triac output, the A2450 operates on 120V to 280V root-mean-square (RMS) AC lines, carrying up to 50A continuous load current. While the APT75GT120JRDQ3 provides continuous, linear gate control that allows arbitrary turn-on and turn-off at rates exceeding 20 kHz, the Crydom A2450 is a zero-crossing or random-firing AC switch designed primarily for line-frequency (50/60 Hz) on/off duty cycles.

Comparing these two power components illuminates a fundamental architectural choice in power electronics. Industrial automation systems encounter two primary load-control challenges: high-frequency synthesized AC waveform generation (as seen in variable frequency drives, servo amplifiers, and high-performance DC power supplies) versus stationary utility-frequency load switching (such as industrial resistance heaters, thermal chambers, and single-speed AC induction pump motors). Engineers who require multi-phase motor drive topologies often combine discrete devices or turnkey bridge systems like the DP15H1200TO101982, whereas dedicated thermal heating loops frequently standardize on isolated SSR hockey-puck blocks like the A2450.

Working Principle and Physical Structure

To understand why the APT75GT120JRDQ3 and the Crydom A2450 serve completely different operational regimes, one must look at how each component manipulates electrical carriers at the semiconductor junction level. Although both devices perform solid-state switching without mechanical contacts, their internal physics dictate how they turn on, conduct current, and turn off.

The APT75GT120JRDQ3 combines the simple, low-power voltage-driven gate structure of a power MOSFET with the superior high-current, low-saturation conduction capability of a bipolar junction transistor (BJT). Internally, the IGBT consists of four alternating semiconductor layers (p-n-p-n) controlled by a metal-oxide-semiconductor gate. When a positive gate-to-emitter voltage (V_GE) exceeding the threshold voltage (typically +15V relative to the emitter) is applied across the gate terminal, an inversion channel forms beneath the thin silicon dioxide gate dielectric layer.

Once this channel forms, electrons flow from the emitter into the n-type drift region. This electron flow forward-biases the p-type collector-substrate junction, causing massive hole injection into the drift layer. This phenomenon, known as conductivity modulation, floods the high-resistance drift region with electron-hole pairs, dramatically reducing internal electrical resistance. As a result, the forward collector-emitter saturation voltage (V_CE(sat)) remains low—typically between 2.0V and 2.5V—even while handling massive load currents. When the gate driver pulls V_GE to 0V or applies a negative bias (such as -5V to -8V), the inversion channel collapses instantly. Electron injection stops, and the module cuts off current flow. A minor current tail persists for a few hundred nanoseconds as minority carriers recombine in the drift layer, which represents the primary switching turn-off energy loss (E_off).

The Crydom A2450 works on a fundamentally different semiconductor mechanism. Rather than relying on voltage-controlled minority carrier modulation that can be interrupted at any microsecond, the A2450 relies on regenerative latching thyristor structures. The input stage consists of an internal light-emitting diode (LED) coupled optically to a photosensitive trigger circuit. When a low-voltage DC control signal (3V to 32V) is applied to the relay terminals, the LED illuminates, optically exciting a zero-voltage detector and gate-firing circuit across an internal galvanic isolation barrier (often rated to 4000 V_RMS).

When the output AC line voltage crosses near zero volts, the internal trigger discharges a pulse into the gates of the back-to-back silicon-controlled rectifiers (SCRs). The SCRs initiate an internal regenerative feedback loop where two interconnected internal transistor structures saturate completely. Once latched, the SCR remains in a low-impedance conducting state, regardless of subsequent changes at the input control terminals. The only way to turn the Crydom A2450 off is to reduce the output load current below the device holding current (I_H). Because the relay is connected to an alternating AC mains line, this condition occurs naturally every half-cycle (every 8.33 milliseconds in a 60 Hz system or 10 milliseconds in a 50 Hz system). Consequently, the A2450 cannot execute high-speed pulse-width modulation (PWM); it is strictly a line-commutated switch.

Key Features, Advantages, and Technology Comparison

Evaluating the APT75GT120JRDQ3 against the Crydom A2450 requires looking at electrical ratings, modulation capabilities, thermal parameters, and structural design. Each technology is optimized for specific engineering outcomes. The table below outlines the core electrical and physical parameters distinguishing these power semiconductor components.

The primary advantage of the APT75GT120JRDQ3 is its high operational bandwidth and voltage headroom. Operating on a 1200V platform allows it to manage rectified 400V, 480V, or 690V industrial three-phase distribution lines with ample safety margins against inductive overshoots. Because its turn-on and turn-off transitions can be controlled down to fractions of a microsecond, designers can use high-frequency pulse-width modulation (PWM) to reconstruct pure sinusoidal current waves, synthesize variable-frequency outputs, or implement active vector control in dynamic motor drives. For designs requiring higher current capacity in high-power motor inverter applications, designers frequently explore higher-capacity industrial bricks such as the QM300HA-H, which share the same fully active gate control philosophy.

The Crydom A2450, on the other hand, excels in installation simplicity, rugged AC line surge tolerance, and lower forward conduction dissipation. In an SSR, the SCR forward voltage drop is lower (typically 1.15V to 1.3V) compared to the series combination of an IGBT collector-emitter junction (2.0V to 2.5V). When running continuously at 40A, an SSR dissipates around 50W, whereas an equivalent IGBT conducting continuous direct current would dissipate over 80W. Furthermore, the A2450 includes an integrated optical isolation barrier. A micro-controller or PLC digital output terminal can drive the A2450 directly using a basic 5V or 24V DC logic line without needing floating bootstrap power supplies, high-voltage gate driver ICs, or complex desaturation detection circuits.

Real-World Applications and Operating Precautions

Because their electrical characteristics differ substantially, the APT75GT120JRDQ3 and Crydom A2450 serve different roles within industrial equipment and factory automation facilities.

The APT75GT120JRDQ3 is designed for applications requiring precise, high-speed switching and active wave-shaping. Common applications include:

• Variable Frequency Drives (VFDs) and AC Servo Systems: Modulating high-frequency DC bus voltages into smooth multi-phase AC currents to regulate the speed and torque of industrial induction and permanent-magnet synchronous motors.
• Uninterruptible Power Supplies (UPS) and Solar Inverters: Converting stored battery or photovoltaic DC energy into clean 50/60 Hz utility power with minimal harmonic distortion.
• High-Frequency Induction Heating: Operating resonant tank circuits from 10 kHz to 30 kHz to heat industrial metals for heat treating and smelting.
• Active Front Ends (AFE) and Power Factor Correction (PFC): Suppressing line harmonics and returning regenerated mechanical braking energy back onto the main power grid. Alternative topologies often pair these systems with specialized bridge configurations such as the SKD75GAL123D for unified chopper and rectifier stages.

The Crydom A2450 is primarily used in utility-frequency AC power distribution where loads are switched periodically rather than continuously modulated. Common implementations include:

• Industrial Thermal and Process Chambers: Cycling heavy electric heating elements in plastic extrusion barrels, semiconductor reflow ovens, and commercial packaging sealers via time-proportioned burst firing (cycle hopping).
• Single-Phase Pumps and Agitators: Controlling off-line industrial liquid circulating pumps where variable speed is not required.
• Lighting Arrays and Infrastructure: Switching banks of high-intensity discharge lamps or commercial facility security lights without mechanical relay chatter, contact pitting, or acoustic noise.

Operating these power devices safely requires strict adherence to practical thermal and electrical installation standards:

Thermal Management and Baseplate Mounting: Both modules dissipate significant heat during continuous operation. Designers must mount the devices to an appropriately sized aluminum heatsink with a surface flatness deviation under 50 µm over a 100 mm span and a surface roughness (R_a) below 1.6 µm. High-performance thermal interface material (TIM) or non-silicone thermal grease must be applied in a uniform layer roughly 60 µm to 100 µm thick. When bolting down either module, apply torque evenly using a calibrated torque wrench. Cross-torque screws incrementally to approximately 1.5 N·m, progressing to a final mounting torque between 3.0 N·m and 4.0 N·m (consult the specific mechanical drawing for terminal screw limits, which are often 1.5 N·m to 2.0 N·m).

Inductive Voltage Spikes and Gate Protection: In high-frequency IGBT circuits, stray bus inductance (L_stray) generates destructive turn-off voltage spikes defined by the equation V_spike = -L_stray × (di/dt). To protect the APT75GT120JRDQ3, designers must place low-inductance polypropylene film snubber capacitors across the DC bus terminals as close to the silicon baseplate as physically possible. For the gate terminal, never allow V_GE to exceed ±20V. Route gate and emitter traces as tightly twisted pairs or coaxial tracks to prevent parasitic capacitive coupling from the high-voltage collector switching node (high dv/dt). For the Crydom A2450, when driving inductive loads like solenoids or coils, connect an external metal oxide varistor (MOV) across the output terminals to clamp voltage spikes caused by lightning surges or upstream transformer switching.

Engineering Selection Guidelines and Field Diagnostics

Choosing between an active IGBT module and an AC solid-state relay begins with clarifying your system’s operational requirements. The following checklist guides this architectural evaluation:

1. Power Supply Type: If the load requires DC control, variable voltage, or a synthesized variable-frequency AC waveform, you must choose an actively controlled transistor like the APT75GT120JRDQ3. If the load runs directly on standard utility AC mains (120V to 240V AC) and requires simple on/off or cycle-based duty control, the Crydom A2450 is the simpler and more cost-effective option.
2. Modulation Speed: If your switching frequency exceeds 100 Hz, an SSR is fundamentally unsuitable because it cannot turn off until the AC current wave crosses zero. Only high-speed IGBTs or MOSFETs can operate in the kilohertz range.
3. Drive and Isolation Complexity: If low cost and rapid deployment are your main constraints for an AC heating load, the A2450 offers built-in 4 kV optical isolation and logic-level drive compatibility. In contrast, driving the APT75GT120JRDQ3 requires an isolated DC-DC converter, dedicated high-side gate driver ICs, and active dead-time interlocks to prevent catastrophic bridge shoot-through.
4. Voltage Headroom: Always maintain a derating safety factor. For 400V/480V three-phase industrial mains, the rectified DC bus reaches 560V to 680V. Under dynamic motor braking conditions, voltage spikes easily reach 800V to 900V. The 1200V rating of the APT75GT120JRDQ3 provides the necessary safety margin. Never run an SCR or IGBT above 80% of its rated absolute maximum voltage during standard operation.

When unexpected equipment failures happen in the field, technicians must verify the health of these power modules using a standard digital multimeter (DMM) set to resistance (Ω) and diode test modes. Before testing, disconnect all input power sources and completely discharge all filter capacitor banks using a properly rated ceramic bleed resistor. The diagnostic procedure in the following table outlines expected readings for healthy modules and identifies indicators of internal failure.

When an IGBT experiences a hard catastrophic failure, it almost always fails as a three-way short between collector, emitter, and gate. This failure mechanism often sends high DC bus voltages into the low-voltage gate driver circuitry, damaging drive optocouplers and pulse transformers. If you discover a shorted channel in an APT75GT120JRDQ3, always replace or inspect the gate driver board before applying power to a replacement module. Conversely, when an AC solid-state relay like the Crydom A2450 fails, its internal SCRs typically fuse into a permanent short circuit due to thermal runaway or current surges. This condition leaves the attached AC load permanently energized even after removing input drive control. Incorporating an independent thermal cutoff fuse and an electromechanical safety contactor upstream of the SSR ensures proper safety compliance in industrial heating systems.

By understanding these physical behaviors, control characteristics, and operational boundaries, system designers can match the correct power semiconductor device to their specific application. Whether you need the active microsecond switching of an IGBT like the APT75GT120JRDQ3 for vector-controlled motor drives or the reliable, zero-crossing line switching of an SSR like the Crydom A2450 for electric process heating, selecting the appropriate technology ensures long-term reliability and efficient power delivery.
