Hitachi LMG6912RPFC LCD Display

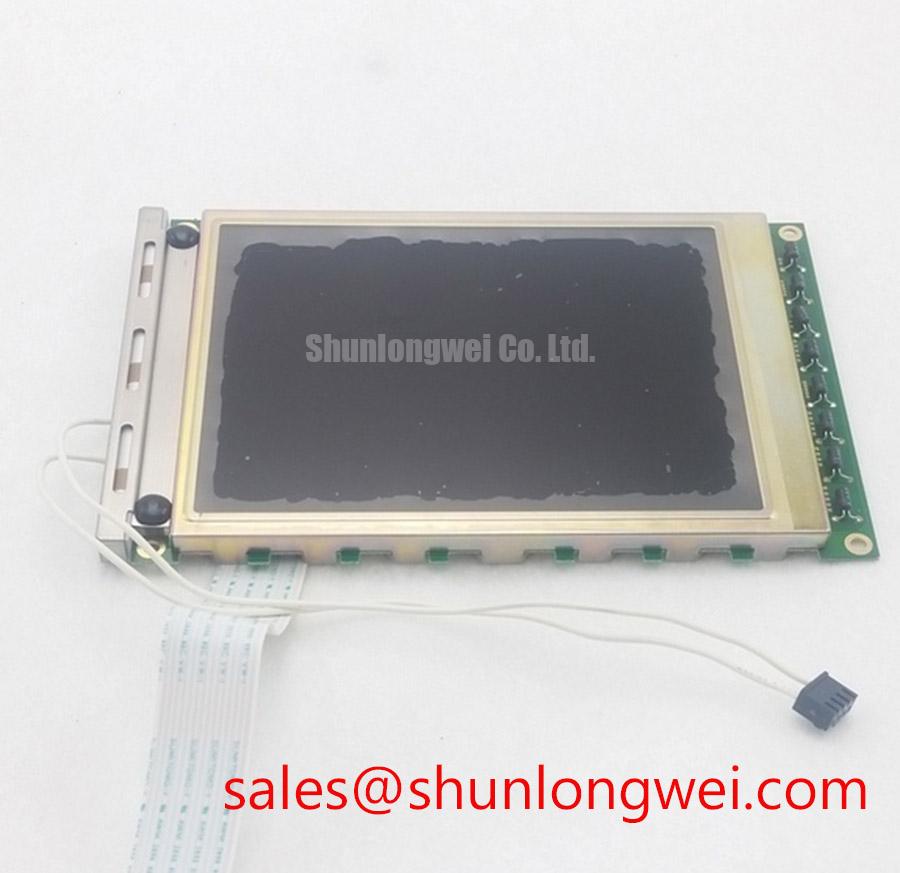

LMG6912RPFC: Rugged 320x240 F-STN Display Module

Engineered for sustained operational integrity in demanding industrial applications, the LMG6912RPFC F-STN graphic display module delivers exceptional clarity and proven field reliability. This module provides a robust visual interface solution for equipment requiring long-term dependability. Its design addresses the common challenge of maintaining readability in variable industrial settings, as its specified operating temperature range ensures functional stability on factory floors without dedicated climate control systems.

Top Specs: 320x240 Resolution | -5°C to +50°C Operating Temp | Integrated CCFL Backlight

Key Benefits: High-contrast monochrome visuals. Excellent long-term reliability.

An Engineering Look at F-STN Durability

The core of the LMG6912RPFC's visual performance lies in its Film-compensated Super-Twisted Nematic (F-STN) liquid crystal technology. Unlike standard STN displays, the addition of a retardation film layer corrects for color dispersion, resulting in a highly uniform black-and-white display. This optical refinement is critical in industrial environments where data must be interpreted quickly and without ambiguity. The technology provides a stable, high-contrast image that remains clear across the module's specified viewing cone, minimizing potential for operator error.

Further contributing to its operational endurance is the integrated Cold Cathode Fluorescent Lamp (CCFL) backlight. While newer technologies exist, CCFL backlights have a well-documented history of long-term performance and a predictable operational lifespan, which is a significant asset in industrial equipment maintenance cycles. This allows for planned service intervals rather than unexpected field failures. What is the key benefit of the LMG6912RPFC's F-STN technology? It provides superior monochrome contrast and readability essential for industrial HMIs.

Data for Your Design Analysis

Evaluating a display module requires a fact-based comparison against system requirements. The LMG6912RPFC provides a specific set of parameters tailored for instrumentation and control applications. Below is a comparison to provide context for your engineering assessment.

• Resolution and Information Density: With a 320x240 dot matrix, the LMG6912RPFC is well-suited for displaying multiple lines of text, status icons, and simple vector graphics, which is typical for legacy control panel interfaces.
• Thermal Operating Window: The -5°C to +50°C operating range covers a majority of indoor industrial and controlled environment applications. For systems deployed in extreme cold or heat, alternative modules such as the G084SN05 V9, which offers a wider temperature range, could be a relevant consideration for evaluation.
• Interface Controller: The module's integrated Toshiba T6963C controller is a widely adopted standard for parallel interface graphic displays. This simplifies driver development and can facilitate easier integration into existing system architectures that utilize this common controller.

This data is presented to support a thorough evaluation process, enabling designers to match component specifications directly to their application's environmental and electrical constraints.

Technical Questions Answered

1. What is the integrated display controller in the LMG6912RPFC and what are its implications for system design?
The LMG6912RPFC incorporates the Toshiba T6963C display controller. This is a significant advantage for engineers as it is a well-documented and widely supported parallel interface controller. Its inclusion simplifies the design process by managing the display RAM and character generation, offloading these tasks from the host microprocessor and streamlining firmware development.

2. How does the module's response time influence its performance in an industrial HMI?
The datasheet specifies a total response time (rise + fall) of 310ms (Typ. at 25°C). For a monochrome graphic display used in process control or instrumentation, this speed is entirely adequate. It ensures that numerical readouts, status indicators, and menu selections update cleanly without discernible "ghosting" or image lag, which is crucial for accurate operator interaction.

3. What are the power supply requirements for the logic and the CCFL backlight?
The module requires a +5V supply for logic (VDD) and a separate high-voltage AC source for the CCFL inverter, which is not built into the module. This separation is a key consideration for power budget and PCB layout, as the high-voltage CCFL driver circuitry must be properly implemented and isolated.

The Strategic Value of Proven Display Technology

In an industry focused on rapid innovation, the selection of components with a long and stable history holds significant strategic value. The LMG6912RPFC represents a class of display modules that provides a dependable solution for long-lifecycle industrial equipment. For manufacturers of medical instruments, factory automation systems, or test equipment, product lifecycles can often exceed a decade. Utilizing a display with a proven track record of reliability, like this module, helps mitigate risks associated with component obsolescence and ensures the availability of replacement parts for service and repair, ultimately lowering the total cost of ownership (TCO). This approach aligns with a strategy that prioritizes system uptime and maintainability, a cornerstone of industrial product design. Further insights into selecting appropriate displays can be found in our guide on Industrial vs. Consumer Displays.

Deployed in Demanding Environments

The specific engineering characteristics of the LMG6912RPFC make it a suitable component for a range of specialized applications where clarity and reliability are non-negotiable. Its robust design ensures consistent performance in environments where consumer-grade displays would falter.

• Industrial Control Panels: Used in PLCs, CNC machines, and factory automation terminals, the display provides operators with clear, unambiguous readouts of system status, alarms, and operational parameters.
• Test and Measurement Equipment: In oscilloscopes, spectrum analyzers, and other portable or benchtop instruments, the high-contrast display is essential for accurate data visualization.
• Medical Monitoring Devices: The module's stable and clear visual output is valuable in patient monitoring systems and medical diagnostic equipment where precise information display is critical.

For industrial control systems that require a straightforward, reliable graphic interface, the LMG6912RPFC offers a field-proven and robust solution.

LMG6912RPFC Core Specifications

This table highlights the key performance metrics based on the official datasheet. These parameters are essential for system integration and performance evaluation.

Download the Complete Datasheet

Selecting components that are fundamentally aligned with the long-term operational requirements of an industrial product is a critical strategic decision. The LMG6912RPFC, with its proven F-STN technology and robust construction, provides a display solution that supports a product strategy focused on long-term reliability and system maintainability, ensuring that critical visual interfaces remain dependable throughout the equipment's entire service life.
