PD104VT1: An Engineer's Guide to the 10.4-inch VGA Industrial Display Module
Introduction and Key Features
Engineered for Longevity and Integration in Demanding Environments

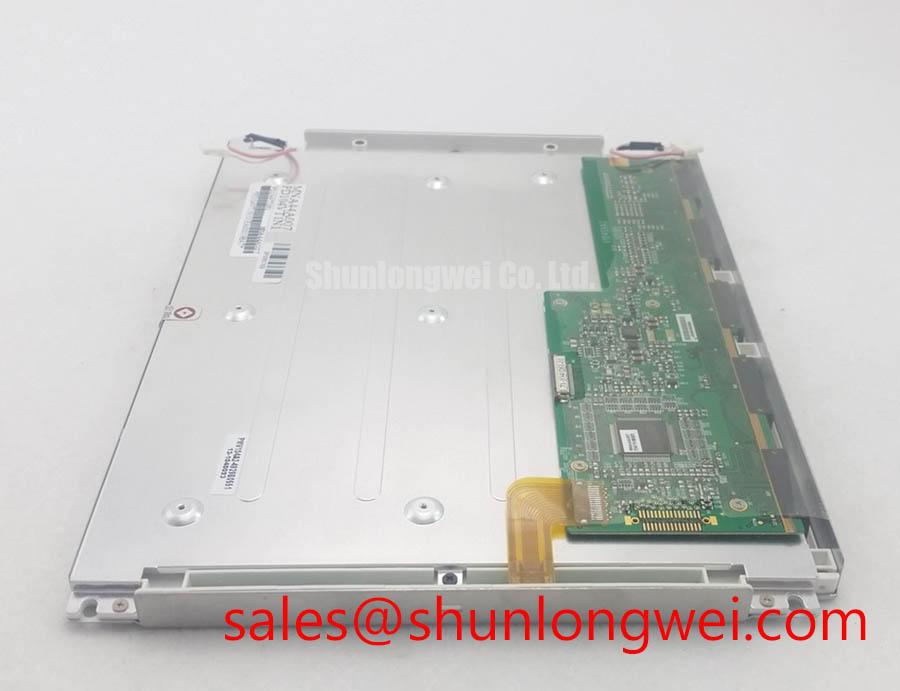

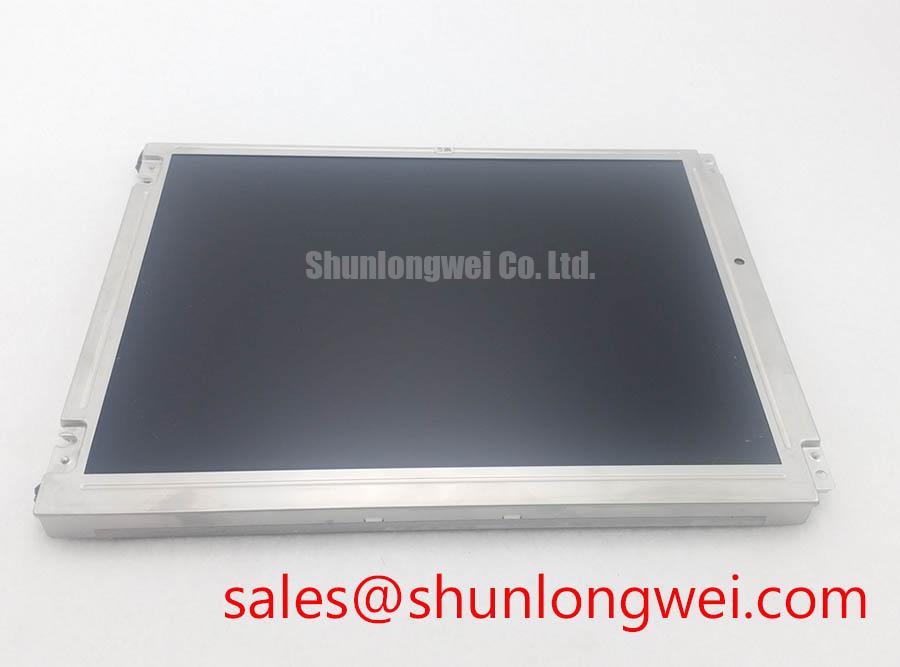

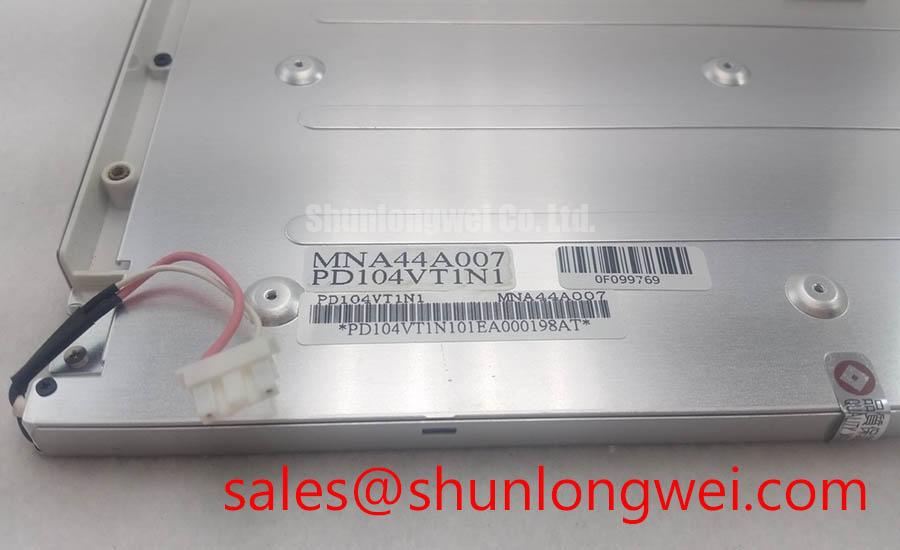

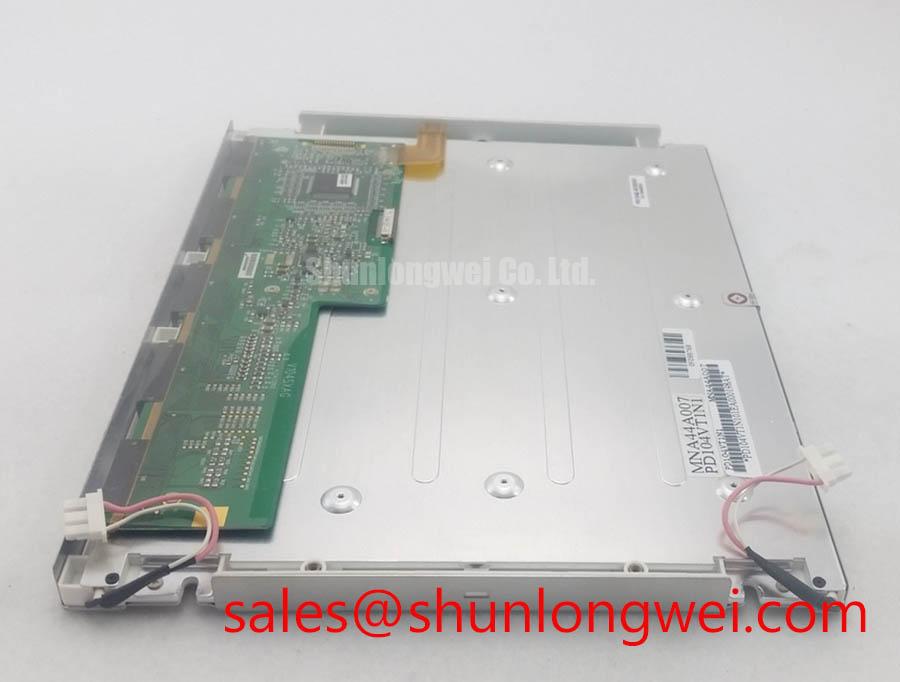

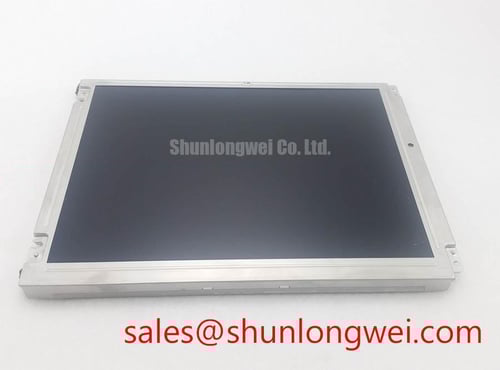

The PD104VT1 is a 10.4-inch amorphous silicon TFT-LCD module engineered for sustained performance in industrial and commercial applications. It delivers a robust VGA resolution display with a focus on reliability and straightforward system integration via its parallel TTL interface. Key specifications include: 640x480 Resolution | 30,000-Hour Backlight Life | Parallel TTL Interface. This design prioritizes a long operational lifespan and simplified connectivity. The module's anti-glare surface treatment and proven CCFL backlight technology ensure consistent readability in typical indoor industrial lighting. For legacy systems requiring a dependable 10.4-inch VGA display with a standard TTL interface, the PD104VT1 provides a proven and mechanically sound solution.
Application Scenarios & Value
System-Level Benefits for Legacy HMI and Control Systems
The PD104VT1 is best suited for applications where long-term availability, mechanical robustness, and compatibility with established control hardware are paramount. Its standard VGA (640x480) resolution and 6-bit TTL interface make it a direct-fit component for upgrading or maintaining a vast installed base of industrial machinery, process control terminals, and early-generation medical monitoring equipment.
A primary engineering challenge in maintaining these legacy systems is sourcing displays that match the original's form, fit, and function without requiring a costly redesign of the main controller board. The PD104VT1 directly addresses this by providing a standard interface that eliminates the need for complex signal conversion hardware. Its specified minimum backlight lifetime of 30,000 hours is a critical parameter for system designers, as it translates directly to reduced maintenance cycles and a lower total cost of ownership. This long-life backlight is analogous to choosing an industrial-grade power supply over a consumer one; while the initial function is the same, the former is built to withstand continuous operation, ensuring the entire system's uptime. For systems requiring a similar form factor but with SVGA resolution, designers might also evaluate the G104S1-L01 to assess resolution trade-offs.
Key Parameter Overview
Decoding the Specs for System Integration and Visual Performance
The technical specifications of the PD104VT1 are tailored for clear, reliable performance in its intended applications. The following table groups key parameters by function to aid in engineering evaluation.
| Feature Group | Parameter | Specification | Engineering Insight |
|---|---|---|---|
| Display Core | Screen Size | 10.4 inches (diagonal) | Standard industrial size for control panels and instrumentation. |
| Resolution | 640(RGB) x 480 (VGA) | Provides clear rendering of standard graphical user interfaces and data readouts. | |
| Display Mode | Normally White, Transmissive | Ensures that a loss of pixel power results in a white/bright state. | |
| Surface Treatment | Anti-glare, Hard-coating | Reduces reflections from ambient light for improved readability. | |
| Backlight System | Backlight Type | CCFL, 2 tubes | A mature and proven technology known for stable, long-term performance. |
| Lamp Lifetime | 30,000 hours (Min.) | Critical for calculating maintenance intervals and TCO in continuous-use applications. | |
| Backlight Driver | Not included | Requires an external DC/AC inverter, allowing for design flexibility. | |
| Interface & Power | Interface | TTL (1 ch, 6-bit) | Standard parallel interface for direct connection to legacy microcontrollers and FPGAs. |
| Supported Colors | 262,144 (6-bit) | Sufficient color depth for typical industrial HMI applications. | |
| Logic Supply Voltage | 3.3V (Typ.) | Low-voltage logic level compatible with modern digital control circuits. | |
| Mechanical | Outline Dimensions | 243.0(W) x 185.1(H) x 12.5(D) mm | Provides the necessary data for mechanical enclosure design and fit verification. |
| Active Area | 211.2(H) x 158.4(V) mm | Defines the usable screen real estate for UI/UX layout planning. |
Disclaimer: The parameters listed above are for reference. System designers must consult the official product datasheet for complete and verified specifications.
Technical Deep Dive
A Closer Look at the TTL Interface and Its Integration Value
The choice of a parallel TTL (Transistor-Transistor Logic) interface on the PD104VT1 is a deliberate engineering decision that directly benefits designers working with legacy or cost-sensitive systems. Unlike more modern serialized interfaces like LVDS, which require dedicated serializer/deserializer (SerDes) chipsets, a parallel TTL interface can often be driven directly from the I/O pins of a microcontroller (MCU) or a Field-Programmable Gate Array (FPGA). This has significant system-level implications.
What is the primary benefit of its direct-drive capability? It simplifies the bill of materials (BOM) and reduces printed circuit board (PCB) complexity. For an engineer upgrading a machine controller from the early 2000s, the original design likely outputted a parallel video signal. Using the PD104VT1 means they can potentially connect the new display with minimal to no intermediary electronics, preserving the architectural integrity of the original design. This is akin to replacing a part in a classic car with an exact-match component versus having to engineer a modern engine to fit; the former is vastly more efficient and less risky. This direct interface significantly shortens design validation time and mitigates the software and hardware risks associated with integrating signal conversion ICs.
Frequently Asked Questions (FAQ)
What is the significance of the 6 o'clock optimum viewing direction?
The 6 o'clock viewing direction indicates that the display's contrast and color fidelity are optimized for viewing from a position slightly below the center of the screen. This is a crucial consideration for industrial panels that are often mounted above the operator's direct line of sight, ensuring the best image quality from the typical usage angle.
Does the PD104VT1 require an external backlight inverter?
Yes, the datasheet explicitly states that the backlight driving DC/AC inverter is not included with the module. System designers must source and integrate a separate inverter compatible with the dual CCFL backlight system. This provides flexibility in choosing an inverter that meets specific system power and reliability requirements.
What is "DENB mode" and is it required for operation?
DENB (Data Enable) mode is a signal timing option that uses a dedicated "Data Enable" signal to validate the incoming RGB data, simplifying timing requirements compared to the traditional Hsync/Vsync mode. The datasheet indicates that DENB mode has top priority but the module also supports Hsync/Vsync mode, making it versatile for different video controllers. If not used, the DENB pin should be tied to ground.
An Engineer's Perspective on Application
From a component selection standpoint, the PD104VT1 represents a commitment to stability and backward compatibility. Its feature set is not about cutting-edge performance but about providing a reliable, easily integrated display for a specific class of industrial hardware. The value proposition is centered on minimizing redesign effort and maximizing the operational life of existing systems. For engineers tasked with maintaining long-lifecycle equipment, the availability of a component like the PD104VT1, with its standard mechanical footprint and legacy-compatible TTL interface, is a critical enabler of cost-effective, long-term product support.
