SP12N002: Industrial 4.8-inch Monochrome Graphic LCD Module
Engineering a Legacy of Clarity and Reliability in Demanding Environments
Decoding the Specs for Robust Industrial Interface Design

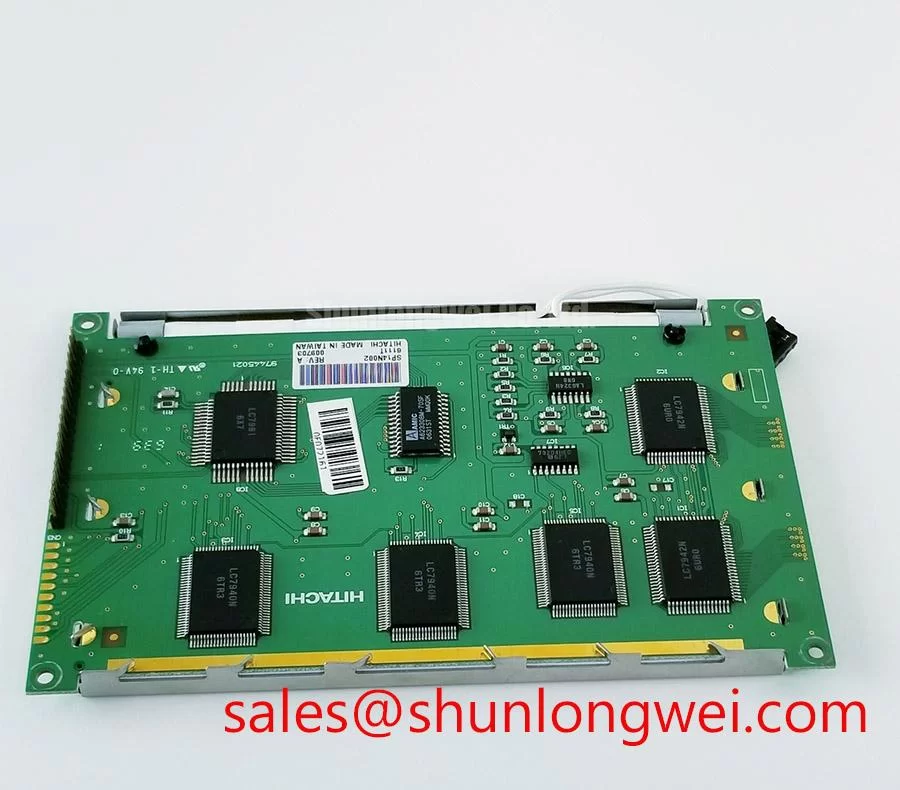

The SP12N002 by Hitachi is a 4.8-inch FSTN (Film-compensated Super-twisted Nematic) monochrome graphic LCD module engineered for unambiguous readability and operational robustness in industrial equipment. It delivers a crisp 256x64 pixel resolution, powered by the integrated Toshiba T6963C controller, streamlining development for embedded systems. For systems requiring high-clarity graphical or character-based data presentation in a compact form factor, the SP12N002 provides a proven, reliable interface solution. Its design prioritizes straightforward integration and long-term performance, making it an excellent fit for instrumentation, process controllers, and specialized HMI panels where function and durability are paramount. What is the primary benefit of its integrated controller? A simplified design cycle by offloading display control tasks from the host microprocessor.
Application Scenarios & Value
Delivering System-Level Benefits in Industrial Control and Instrumentation
The SP12N002 is best suited for applications where clear, immediate data visualization is critical to operational efficiency and safety. Its capabilities are optimized for industrial control panels, test and measurement equipment, and medical diagnostic devices that require more than simple character readouts but do not need full-color video capabilities.
Consider the challenge of designing a user interface for a rack-mounted network analyzer or a programmable logic controller (PLC). The operator needs to navigate menus, view signal waveforms, or monitor system status at a glance. The SP12N02's 256x64 resolution provides ample space for rendering text, simple graphics, and custom icons with excellent clarity. The built-in T6963C controller is a key engineering advantage; it manages the frame buffer and character generation, freeing the main system's CPU to focus on its core processing tasks. This separation of concerns simplifies software development and enhances the real-time performance of the host system. The module's standard 8-bit parallel interface ensures broad compatibility with a wide range of microcontrollers and embedded systems.
Key Parameter Overview
Specifications Tailored for Industrial Integration
The technical specifications of the Hitachi SP12N002 are grounded in the requirements of industrial applications, emphasizing reliability and clear visual performance. The table below highlights the key parameters derived from the official datasheet. The integrated controller and standard operating voltage are particularly noteworthy for designers seeking to minimize external support circuitry.
| Parameter | Specification | Engineering Value |
|---|---|---|
| Display Technology | 4.8-inch FSTN-LCD, Monochrome | Provides high contrast and a wide viewing perspective suitable for industrial panels. |
| Resolution | 256 x 64 Pixels | Offers sufficient detail for graphical menus, waveforms, and extended text information. |
| Controller IC | Toshiba T6963C or compatible | Simplifies system integration by managing display memory and commands, reducing host MCU workload. |
| Interface | 8-bit Parallel Data | Ensures broad compatibility with a majority of industrial microcontrollers. |
| Operating Temperature | 0°C to +50°C | Suitable for controlled indoor industrial environments like factory floors and control rooms. |
| Storage Temperature | -20°C to +60°C | Allows for resilience during shipping and storage in non-operational conditions. |
| Supply Voltage (Logic) | 5.0V (Typ.) | Operates on a common logic level, simplifying power supply design. |
| Backlight System | CCFL, Edge lit | Provides bright and even illumination for the transmissive display. |
Download the SP12N002 datasheet for detailed specifications and performance curves.
Frequently Asked Questions (FAQ)
Getting the Most Out of the SP12N002 Module
What is the primary advantage of the integrated T6963C controller?
The integrated T6963C controller is a significant benefit as it handles the complexities of screen refreshing, cursor management, and storing the display data in its own RAM. This is analogous to having a dedicated graphics co-processor. For an engineer, this means the main system microcontroller doesn't need to waste processing cycles continuously redrawing the screen; it simply sends high-level commands and data to the T6963C, resulting in simpler code, faster development, and better overall system performance.
How does the 8-bit parallel interface impact my design?
The 8-bit parallel interface allows for a high data transfer rate compared to serial interfaces, which is beneficial for updating the graphical display quickly. It requires 8 data lines plus a few control lines, making it straightforward to connect to the GPIO ports of most microcontrollers. This well-established interface standard is supported by numerous code libraries, simplifying the software development process for your embedded systems.
What considerations are needed for the CCFL backlight power supply?
The SP12N002 uses a Cold Cathode Fluorescent Lamp (CCFL) for its backlight, which requires a separate high-voltage AC inverter to operate. This is not built into the display module. Designers must source and integrate a suitable CCFL inverter that can provide the necessary starting and operating voltage (typically several hundred volts). Care must be taken with board layout to isolate this high-voltage circuitry from sensitive logic-level signals.
Is the SP12N002 suitable for outdoor applications?
With an operating temperature range of 0°C to 50°C, the SP12N002 is primarily designed for indoor or protected industrial environments. While its storage temperature range is wider, prolonged operation outside its specified operating range, particularly in direct sunlight or below freezing, is not recommended and may affect performance and lifespan.
A Strategic Choice for Industrial Interfaces
In an era of increasingly complex full-color displays, the Hitachi SP12N002 represents a strategic commitment to functional clarity and reliability. Its design acknowledges that for a vast range of industrial machinery and instrumentation, the most effective HMI is one that presents essential data without distraction. By integrating a powerful display controller with a robust TFT-LCD panel, Hitachi provides a component that is not just a display, but a foundational element for building dependable and user-friendly industrial equipment. This focus on streamlined integration and proven technology ensures a lower total cost of ownership and a faster time-to-market for critical applications. For systems that need to display more comprehensive data, the G104VN01 V0 provides a full-color alternative with a larger screen area.
