LMG6911RPBC-E Incoming Inspection
- Disconnect equipment power and inspect the LMG6911RPBC-E label, connector orientation, cable seating, and mounting points before attaching a test controller.
- Check the host schematic against the display connector assignments before measuring logic, contrast-control, or illumination circuits.
- Prepare full-field light and dark patterns, alternating lines, and a grayscale pattern to separate pixel-addressing faults from illumination irregularity.
- Record the original contrast setting and photograph the displayed fault before disturbing the cable or bezel.

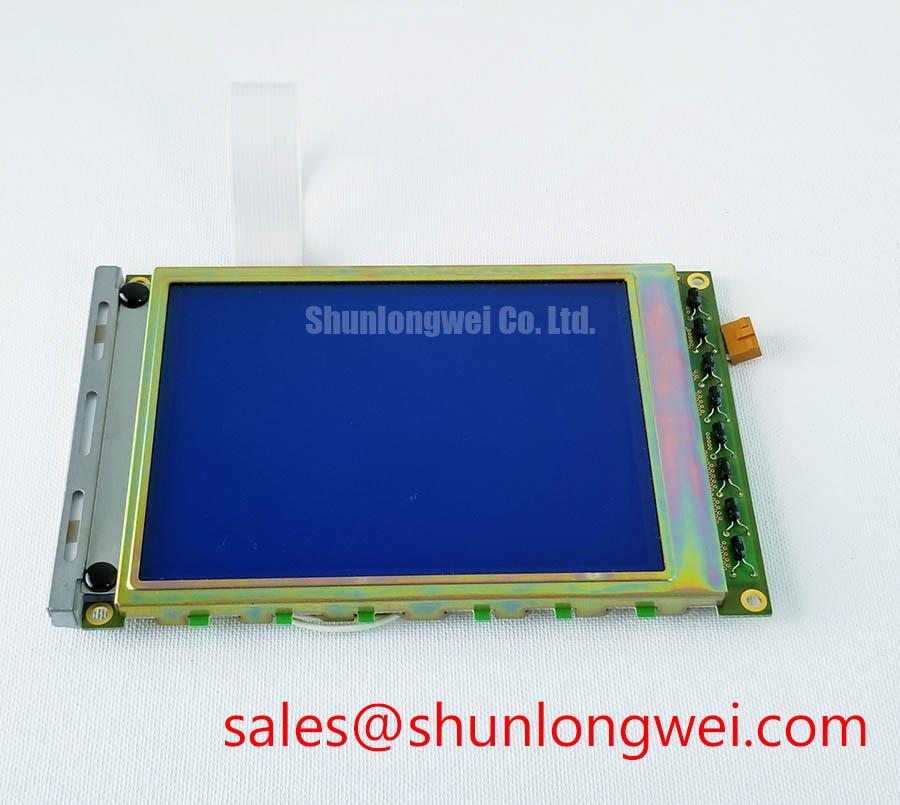

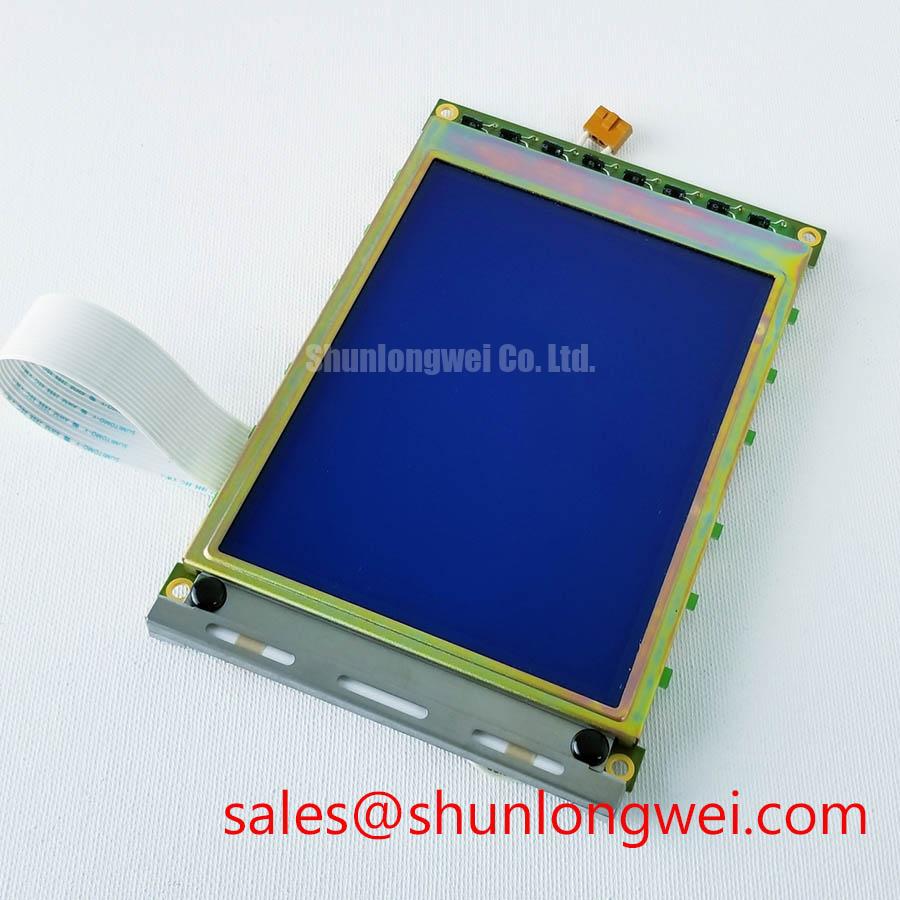

The LMG6911RPBC-E is identified as a KOE / Hitachi industrial LCD display using FSTN / STN monochrome passive-matrix LCD technology. Incoming inspection should distinguish three separate characteristics: whether pixels are addressed correctly, whether contrast remains readable, and whether illumination is uniform. A dark region alone does not identify which part of that chain requires attention.
Product identification: Manufacturer: KOE / Hitachi; Part Number: LMG6911RPBC-E. Consult the datasheet for dimensions, pixel count, connector pinout, electrical limits, timing, backlight construction, and environmental ratings; the circuit-specific discussions below are design considerations, not additional factory specifications.
Contrast Ratio Potentiometer Calibration and Automated Thermistor Feedback Regulation
Record contrast across the adjustment range while displaying alternating dark and light areas, rather than calibrating against an empty screen. A setting that makes the background look clean can still obscure fine characters or merge neighboring grayscale levels. Keep viewing direction, ambient illumination, and image content consistent when comparing adjustments.
Design Consideration: Where the host schematic identifies a contrast potentiometer and a display-bias supply, measure the adjustment node and supply ripple at the display connector. Correlate disturbances with visible contrast modulation and equipment operating activity. Use probing arrangements that avoid introducing a ground short or substantially loading the adjustment network; acceptance limits belong to the approved display and controller specifications.
For a host circuit containing thermistor compensation, compare its bias response with actual panel temperature after stabilization. Sensor placement matters because enclosure air temperature can differ from the display assembly temperature. Adjusting compensation without checking that relationship can improve one operating condition while degrading another. Cold-start assessment should also distinguish slower image transitions from a change in background contrast.
The related discussion of Grayscale Inversion and Why Your Industrial Display Loses provides useful viewing-angle context, rather than a model-specific acceptance standard. Evaluate readability across the intended viewing position and documented temperature range; contrast adjustment cannot establish a sunlight-readability rating or prove the presence of an antiglare coating.
Restoring Missing Horizontal Display Rows / Vertical Columns Caused by Flex Cable Delamination
Map missing rows or columns with alternating-line patterns before treating cable delamination as the cause. A fixed line defect, an intermittent connector contact, and a controller timing fault can produce overlapping symptoms. Record whether the affected region follows image content, remains fixed in position, or changes after a normal power cycle.
Engineering Recommendation: Inspect accessible cable contacts, locking features, and routing for incomplete insertion, contamination, sharp bends, or strain transferred from the enclosure. Keep the assembly supported during inspection. Do not assume the internal connection uses an elastomeric zebra strip, and do not apply a generic bezel pressure to an undocumented assembly. Where a serviceable compression connector is explicitly identified, its alignment and loading must follow the assembly instructions.
💡 Bench Tip: Use ESD protection and remove equipment power before seating the display cable squarely and closing its connector lock.
Repeat the image test after reassembly with the mounting hardware secured as specified. Uneven enclosure loading can affect optical appearance without proving an electrical contact fault. Compare light-field uniformity, dark-field leakage, and fine-line continuity separately; pressing on the active area is not a reliable repair test.
When comparing SP14Q003-C1 with this part, treat it as a separate candidate, not an established replacement. Mechanical fit, active-area position, connector assignment, controller compatibility, and illumination requirements must agree. For a precision electronic test and measurement instrument, the evaluation should also include small text and waveform readability under the intended viewing conditions.
Cold-Cathode Fluorescent Lamp High-Voltage Strike Waveform & Open-Lamp Trip Threshold Tuning
Establish the installed illumination architecture from the equipment service information before connecting a high-voltage probe or changing a protection setting. This section concerns equipment with a documented CCFL inverter; its heading does not establish a CCFL backlight specification for LMG6911RPBC-E.
Design Consideration: In that equipment, capture startup and steady-state behavior using probes and measurement methods rated for the inverter waveform. Inspect accessible lamp wiring and connectors with power removed, then compare startup behavior with the inverter service limits. A brief flash followed by shutdown can involve lamp condition, wiring, supply behavior, or protection detection; it does not justify bypassing the shutdown circuit.
Separate a failed ignition attempt from a sustained-running fault by observing the inverter enable signal, input supply, and documented fault output together. Open-lamp thresholds, insulation spacing, and current regulation are properties of the complete lamp-and-inverter arrangement. Restore approved settings rather than increasing a threshold simply to keep the screen illuminated.
For the optical check, compare illuminated regions using unchanged exposure and viewing geometry. Judge background tint separately from brightness variation, especially on a monochrome display. Neither a bright center nor dim edges alone establishes lamp wear. If reviewing SX14Q001 within the same display-subsystem assessment, evaluate it as another display product, not as a verified backlight driver or electrically compatible companion.
Latch Pulse (LP) Skew and Frame Synchronization Pulse (FLM) Alignment to Eliminate Line Smearing
Capture image data and the associated timing signals at the display end of the cable when investigating line smearing. Where the host documentation identifies LP, FLM, and CP, compare their relationship with the display and controller timing requirements rather than judging each waveform in isolation. Triggered captures can reveal intermittent disturbances that a stable-looking average trace conceals.
Design Consideration: Compare controller-side and connector-side waveforms to distinguish programmed timing from cable-induced degradation. Check reference continuity, connector seating, and measurement loading before changing clock settings. Smearing can involve timing, contrast conditions, or temperature-dependent response, so repeat the same pattern after each controlled change.
The Low-Voltage Differential Signaling (LVDS) Interface Architecture reference explains a different signaling architecture; it does not identify this panel as LVDS. Controller selection must follow the actual connector definition and signal requirements, not the appearance of the cable.
Finally, capture startup and shutdown rail behavior against the approved sequencing requirements. Avoid driving interface pins while the receiving circuitry is unpowered, and verify the specified relationship between logic and display-bias supplies. Repeat fine-line and grayscale patterns after thermal stabilization, recording whether any residual artifact follows image transitions, contrast adjustment, or cable position.
