The Ultimate Guide to TFT-LCD: From Basics to Industrial Applications

1. The Foundation: What Exactly is TFT-LCD?

First, let’s clarify a common misconception: TFT is not a panel type—it’s a driving technology. Almost all mainstream LCD panels we see today, including TN, VA, and our main focus, IPS, fall under the umbrella of TFT-LCD (Thin-Film Transistor Liquid Crystal Display).

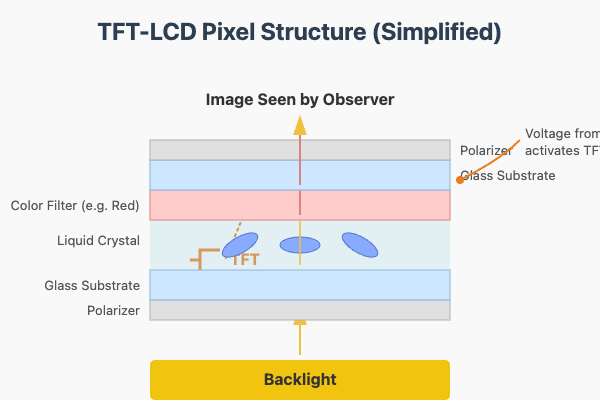

You can think of TFT as a massive semiconductor network printed onto a glass substrate. Each “node” in this network—a thin-film transistor (TFT)—independently controls the switching of one liquid crystal pixel.

Core Operating Principle in Three Steps:

1. Voltage Application: The control system applies voltage to the designated TFT transistor.

2. Transistor Activation: The transistor switches on, acting like a micro-valve.

3. Liquid Crystal Alignment: The electric field realigns the liquid crystal molecules, controlling the amount of backlight passing through to form the image we see.

So, when we talk about “TFT screens,” we often refer to the earliest form of TFT-LCD, typically TN (Twisted Nematic) panels. TN technology remains in use today for cost-sensitive or high-refresh-rate scenarios, such as some legacy industrial PCs or specific gaming displays.

The “Original Sin” of TN Panels:

• Extremely Poor Viewing Angles:
  TN’s biggest flaw. The liquid crystal molecules are helically arranged and vertically aligned. When viewed from an angle, the light path and polarization drastically change, causing severe color distortion and brightness drop—a phenomenon known as gray-scale inversion.

  In industrial environments where operators may view HMI screens from the side, poor viewing angles can lead to dangerous misjudgments.

• Weak Color Performance:
  Most TN panels only offer 6-bit color depth (about 262K colors) and rely on frame rate control (FRC) to simulate 8-bit color. Their native color accuracy and saturation fall far behind IPS panels.

To overcome these fundamental limitations, IPS technology was born.

---

2. The Revolutionary Leap: How IPS Changed the Game

IPS (In-Plane Switching) technology, developed by Hitachi in 1996, was specifically designed to improve viewing angles and color reproduction for TFT-LCDs.

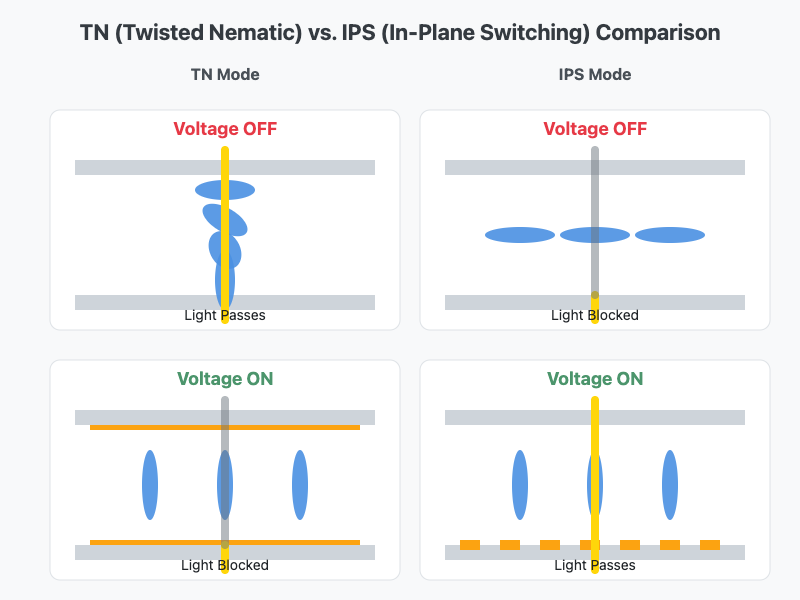

Key Structural Difference:

• TN Mode: Liquid crystal molecules are vertically aligned when no voltage is applied.

• IPS Mode: Molecules remain parallel to the screen surface at all times, rotating within the plane when voltage is applied.

This in-plane rotation design brings three core advantages:

Unmatched Wide Viewing Angles

IPS panels can easily achieve 178° wide viewing angles in all directions with minimal color shifting.

For industrial HMI, this ensures operators can clearly see accurate information from any position, critical for multi-operator environments or confined spaces.

Superior Color Fidelity

IPS supports true 8-bit or even 10-bit color depth, often covering 100% of the sRGB color gamut.

In industrial fields requiring precise color recognition—such as textiles, printing, or medical imaging—IPS is often the only viable option.

Hard-Screen Structure & Pressure Resistance

The horizontal molecular alignment makes IPS panels structurally stable. When touched, the molecules shift minimally and quickly return to position, preventing the large “water ripple” effect commonly seen in TN or VA soft screens.

For frequently touched industrial HMIs, this enhances both user confidence and long-term durability.

---

3. TFT (TN) vs. IPS: The Ultimate Showdown for Industrial HMI

When selecting displays for industrial HMI and embedded systems, cost, reliability, and environmental adaptability are key decision factors.

---

Key Takeaway:

For 2025 and beyond, IPS is no longer an optional upgrade—it’s becoming the new industrial standard.

TN’s low-cost advantage is rapidly disappearing, while its visual limitations are increasingly unacceptable in the Industry 4.0 era, where safety, efficiency, and user experience are paramount.

Unless you are retrofitting extremely cost-sensitive legacy systems that don’t care about display quality, IPS should be your first and often only choice for new projects.

---

4. Practical Scenarios: Choosing the Right Display for Your Application

As a senior FAE with over 15 years of field experience, I can confidently say:
There is no best technology, only the most suitable one.

Here are my scenario-based recommendations:

Scenario 1: High-End CNC Machines, Centralized Control Panels

Pain Points: Large screens (>10.1”), multi-angle collaboration, complex UI with detailed status data and charts.
Recommendation: IPS is a must. Wide viewing angles and vivid colors ensure that all operators receive accurate, clear information from any position.

Scenario 2: Handheld Inspection Devices, Mobile Terminals

Pain Points: Frequent movement, unpredictable viewing angles, possible outdoor usage, battery life considerations.
Recommendation: IPS is preferred. Superior readability in challenging lighting and tough screen durability outweigh the minor power consumption trade-offs.

Scenario 3: Small Text Displays, Low-Cost Embedded Modules

Pain Points: Cost is the top priority, display only shows simple text or status indicators, minimal user interaction.
Recommendation: TN may still be considered in this extremely cost-sensitive and visually non-demanding niche, though it’s becoming increasingly rare.

---

Conclusion: Embrace IPS, Embrace the Future of Industrial Displays

TFT technology provided the foundation for the LCD revolution, but IPS is the true game-changer. It addresses TN’s fatal flaws in viewing angles and color performance, pushing industrial display quality to a new level.
