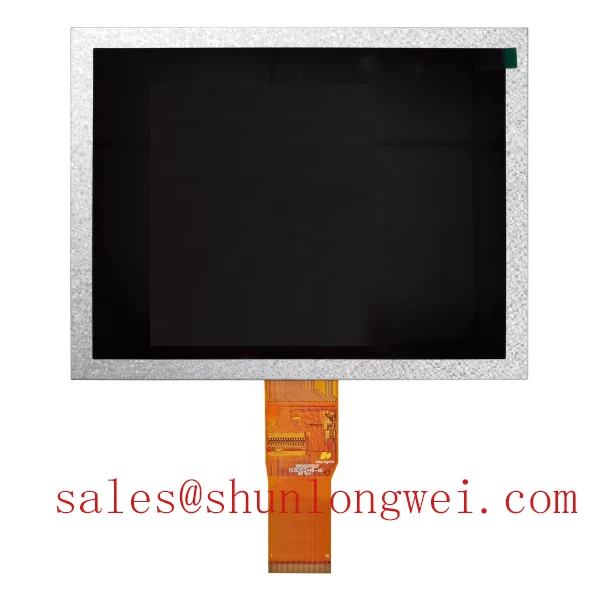

GT080S0M-N12-1QP2 8.0" TFT LCD | Superior Clarity for Mission-Critical Industrial HMIs
In environments where reliability is non-negotiable, a display is more than just a visual output; it's a critical link in the chain of control and safety. The GT080S0M-N12-1QP2 is an 8.0-inch industrial-grade TFT-LCD engineered specifically for these challenges. It moves beyond standard commercial panels, offering a robust, high-performance solution for industrial HMIs, medical devices, and outdoor instrumentation where failure is not an option. Its combination of a wide operating temperature range and enhanced brightness ensures uncompromising performance across diverse and demanding applications.
Technical Deep-Dive: Engineered for Extremes
The value of an industrial display is defined by its performance under pressure. The GT080S0M-N12-1QP2 integrates key technologies to address the most common points of failure in the field.
- Wide Operating Temperature (-20°C to +70°C): Standard liquid crystal materials can freeze or degrade in extreme temperatures, leading to slow response times, ghosting, or complete failure. The GT080S0M-N12-1QP2 utilizes industrial-grade liquid crystals and a robust backlight system designed to maintain stable optical performance from frigid factory mornings to the high heat of enclosed, non-ventilated control panels. This resilience eliminates the need for complex and costly external heating or cooling systems, directly reducing system complexity and improving MTBF.
- High Brightness & Enhanced Contrast: A screen that can't be read is a liability. This display features a high-intensity LED backlight, delivering superior brightness that cuts through the glare of factory lighting or indirect sunlight. This ensures that critical data, warnings, and control interfaces are always clearly legible, enhancing operator efficiency and preventing errors caused by misinterpretation. For a deeper look at achieving visibility in challenging lighting, explore our engineer's guide to sunlight-readable HMIs.
Key Technical Specifications at a Glance
| Parameter | Value |
|---|---|
| Screen Size | 8.0 inch |
| Resolution | 800(RGB)×600 [SVGA] |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) |
| Signal Interface | LVDS (1 ch, 8-bit), 20 pins |
| Operating Temperature | -20 ~ 70 °C |
| Backlight Lifespan | 50,000 hours (Min.) |
Where the GT080S0M-N12-1QP2 Excels: Application Scenarios
- Industrial Automation HMIs: On a plant floor, this display's immunity to temperature fluctuations and electrical noise ensures consistent operation. Its durability translates to longer HMI lifespan and reduced maintenance calls, directly impacting operational costs.
- Medical Diagnostic Equipment: In medical settings, accuracy and uptime are paramount. The stable performance and long-life backlight of the GT080S0M-N12-1QP2 guarantee that critical patient data and imaging are displayed with clarity and consistency, build after build.
- Outdoor Kiosks & EV Charging Stations: Public-facing terminals demand sunlight readability and all-weather reliability. This display’s high brightness and rugged temperature range make it a perfect fit for ticketing machines, public information kiosks, and EV charging interfaces that must perform flawlessly 24/7.
- Marine & Transportation Systems: The robust construction is well-suited to handle the vibration and temperature swings common in marine bridge displays and vehicle dashboards, ensuring operators always have a clear view of navigation and system status.
Frequently Asked Questions (FAQ)
- Can this display be integrated with a touchscreen?
Absolutely. The GT080S0M-N12-1QP2 is designed with a flat bezel structure that simplifies integration with both resistive (ideal for gloved hands) and projected capacitive (PCAP) touch overlays, allowing you to create a fully interactive HMI solution. - What is the advantage of this model over a consumer-grade tablet screen?
The key differentiators are reliability and longevity. Unlike consumer displays with a short product lifecycle and narrow operating parameters, this industrial LCD guarantees long-term availability (typically 5-7 years), a wide temperature range, and is built to withstand industrial shock and vibration standards, ensuring a lower total cost of ownership for your equipment.
Selecting the right components is fundamental to building a reliable and long-lasting system. The GT080S0M-N12-1QP2 offers the engineering integrity required for today’s most demanding industrial applications. If you are developing a system with unique environmental or operational requirements, please contact our technical support team to discuss your project and explore custom solutions.
