NEC NL6448BC26-01F | Enduring Visual Clarity for Legacy Industrial Systems

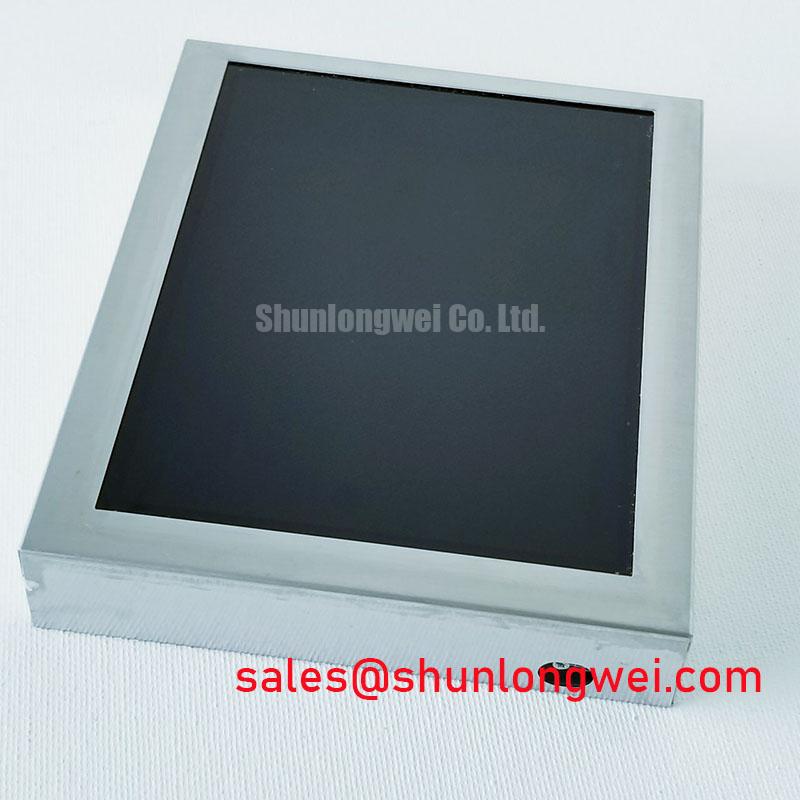

The NEC NL6448BC26-01F is an 8.4-inch VGA TFT-LCD engineered for exceptional reliability and long-term performance in demanding industrial environments. It serves as a critical component for maintaining and extending the life of legacy systems, offering a seamless drop-in replacement that avoids costly and time-consuming redesigns. Ideal for industrial automation, medical diagnostics, and specialized instrumentation, the NL6448BC26-01F delivers the stable, consistent visual performance that mission-critical applications depend on.
Technical Deep Dive: Engineered for Stability and Compatibility
- Precision-Engineered for Legacy Systems: The native 640x480 VGA resolution is a strategic advantage. For engineers maintaining existing HMI panels or medical devices, the NEC NL6448BC26-01F eliminates the need for software redevelopment or hardware re-engineering. It interfaces directly with systems designed for this classic resolution, preserving system integrity and minimizing downtime during replacement cycles. This focus on backward compatibility is a cornerstone of its value proposition.
- Robust Industrial Construction: Built on proven a-Si TFT (Amorphous Silicon) technology, this display is designed to withstand the rigors of the factory floor or a clinical setting. Its wide operating temperature range ensures consistent performance in environments with significant thermal fluctuations. This inherent durability translates directly to a lower total cost of ownership by reducing field failures and maintenance calls.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | NEC |
| Model | NL6448BC26-01F |
| Screen Size | 8.4 inch |
| Resolution | 640(RGB)×480, VGA |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 250:1 (Typ.) |
| Interface Type | 20 pins LVDS (1 ch, 6-bit) |
| Operating Temperature | 0 ~ 50 °C |
| Backlight | 1 pc CCFL |
For a complete list of specifications, you can download the NL6448BC26-01F Datasheet.
Multi-Dimensional Application Scenarios & Value
- Industrial HMI & Control Panels: In manufacturing settings, uptime is paramount. When an older HMI screen fails, the NL6448BC26-01F provides a swift, reliable replacement, ensuring machine operators have a clear and functional interface without disrupting production lines for a complete system overhaul.
- Medical Diagnostic Equipment: Legacy ultrasound machines, patient monitors, and laboratory analyzers often rely on VGA displays. The consistent image quality and long-term availability of the NEC NL6448BC26-01F are crucial for healthcare providers who need to maintain certified medical devices in perfect working order.
- Test and Measurement Instruments: For oscilloscopes, spectrum analyzers, and other specialized equipment, data clarity is non-negotiable. This display delivers crisp text and graphics, ensuring that engineers and technicians can accurately interpret measurement results in both laboratory and field environments.
Selection Advice: Retrofit vs. New Design
When should you choose the NEC NL6448BC26-01F? If your primary goal is to repair or maintain an existing system designed around a VGA resolution, this display is the ideal choice. Its form factor, LVDS Interface, and resolution provide a plug-and-play solution. For brand-new product designs, you might consider a modern, higher-resolution panel from our extensive collection of industrial LCDs. However, for cost-effective lifecycle management of deployed assets, the NL6448BC26-01F remains an unparalleled solution.
Frequently Asked Questions
- Is this panel a suitable replacement for other 8.4" VGA displays?
Yes, the NL6448BC26-01F is often used as a compatible replacement for many legacy 8.4" VGA panels. However, we always recommend comparing the mechanical drawings and interface pinouts from the datasheet to ensure a perfect fit. - What is the expected lifespan of the CCFL backlight?
The CCFL backlight is rated for a typical lifetime of 50,000 hours to half-brightness, offering years of reliable service under normal operating conditions, which is essential for industrial and medical applications. - How do I handle the LVDS interface with modern controllers?
Many modern single-board computers (SBCs) and display controllers still offer native LVDS outputs. For those that don't, simple and widely available adapter boards can convert signals like HDMI or eDP to the required LVDS format.
For personalized integration support or to confirm compatibility for your specific application, please reach out to our engineering team for expert guidance.
