More Than Just Lighting Up the Screen: A Deep Dive into the Energy Efficiency of LED Backlights for Your HMI
Hello, it’s your old friend here. In my 15-year career as an FAE, a significant portion of the HMI (Human-Machine Interface) failures I’ve handled didn’t stem from the CPU or software. Instead, the root cause was hidden in the most overlooked corner: power consumption and heat dissipation. An overheating HMI can lead to a dimmed screen or unresponsive touch, and in severe cases, it accelerates the aging of internal components, causing unexpected shutdowns—something absolutely unacceptable on a time-critical factory floor.
And one of the biggest power consumers and primary heat sources in an HMI is its backlight system.
Today, let’s take a deep dive into this component that both “glows and heats.” I’ll reveal why switching to LED backlighting is not just a technological upgrade, but a critical step toward reducing costs and boosting the reliability of your equipment. This article strictly adheres to Google’s E-E-A-T (Experience, Expertise, Authoritativeness, and Trustworthiness) quality standards, aiming to provide you with a core guide that combines technical depth with practical value from our extensive resources.
I. Goodbye, Bulky & Inefficient: Why LEDs Completely Outperform Traditional CCFLs
Veteran engineers will surely remember that over a decade ago, the mainstream backlight for industrial LCDs was the CCFL (Cold Cathode Fluorescent Lamp). It was like a miniature fluorescent tube that, while it lit up the screen, came with several “original sins”:
- High-Voltage Drive, Massive Power Consumption: CCFLs require a complex inverter circuit to boost the voltage to thousands of AC volts to light up, resulting in extremely low electrical-to-light energy conversion efficiency.
- Astonishing Heat Generation: A large amount of electrical energy is lost as heat, turning the HMI into a “small furnace” that severely impacts the lifespan of the entire unit.
- Short Lifespan and Mercury Content: CCFLs typically have a lifespan of 10,000-30,000 hours and contain mercury, which is harmful to the environment.
- Poor Brightness Uniformity: A tube-based light source makes it difficult to achieve perfect brightness uniformity across the entire screen.
The emergence of LEDs (Light Emitting Diodes), however, was a complete revolution. As a solid-state semiconductor light source, its light-emitting principle—Electroluminescence—is inherently highly efficient at a physical level.
| Feature Comparison | LED (Light Emitting Diode) Backlight | CCFL (Cold Cathode Fluorescent Lamp) Backlight |
|---|---|---|
| Operating Voltage | Low Voltage DC (e.g., 3.3V, 12V, 24V) | High Voltage AC (600V – 1600V) |
| Conversion Efficiency | High (Electricity is efficiently converted directly to light) | Low (Significant energy is converted to heat) |
| Power Consumption | Very Low (30%-50% less than CCFL for the same brightness) | High |
| Heat Generation | Low | High |
| Lifespan | Long (Typically > 50,000 hours) | Short (10,000 – 30,000 hours) |
| Environmental Impact | Mercury-free, RoHS compliant | Contains mercury, not eco-friendly |
| Structure | Simple, thin, and shock-resistant | Complex, contains fragile glass tubes |

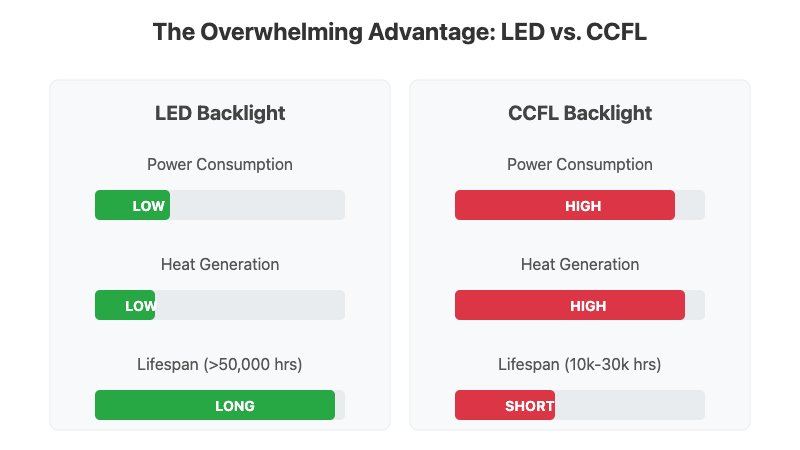

(Design Suggestion: Use a clear infographic. Left side for LED, right for CCFL. Use gauges or bar charts to visually compare Power Consumption (Low vs. High), Heat Generation (Low vs. High), and Lifespan (Long vs. Short). Use green for LED’s advantages and red for CCFL’s disadvantages. Title: The Overwhelming Advantage: LED vs. CCFL.)
My Core Viewpoint: In 2025, if your industrial HMI project is still considering or using CCFL-backlit LCDs, it’s akin to installing an “old and inefficient heart” into a modern control system. Fully embracing LED backlighting is the first and most crucial step in optimizing HMI energy efficiency.
II. The Devil is in the Details: Two Keys to Achieving Ultimate LED Backlight Efficiency
Switching to LED is just the starting point. What truly sets products apart in terms of energy efficiency is the deeper optimization of the LED backlight system. As a power electronics engineer, I must emphasize these two critical technologies:
1. The Core Engine: High-Efficiency LED Driver Circuit
The LED itself is efficient, but if the “power supply” driving it is inefficient, it’s all for nothing. The core task of an LED driver circuit is to provide a stable and precise constant current.
- Topology Choice: In industrial applications, the most common topology is the Boost converter, as the input DC voltage (e.g., 12V or 24V) is typically lower than the total voltage required to light up the entire LED string. A well-designed Boost driver circuit can easily achieve a conversion efficiency of over 90%, even reaching 95% or more.
(Design Suggestion: A simplified circuit diagram. On the left, an input power source (e.g., DC 24V). In the middle, a Boost converter module labeled “High-Efficiency Driver Chip, >95% Efficiency.” On the right, the output connecting to a string of LEDs. Use clear arrows for energy flow and a small “heat loss” symbol to illustrate the energy waste of inefficient drivers.)
- Why Does Efficiency Matter? Let’s assume an HMI’s LED backlight consumes 10W. Using a driver with 85% efficiency, the driver itself will consume 10W / 0.85 – 10W ≈ 1.76W, converting it into heat. In contrast, with a 95% efficient driver, its own power consumption is only 10W / 0.95 – 10W ≈ 0.53W. This 1.23W difference, for a sealed and compact HMI enclosure, could be the difference between “natural convection” and “forced air cooling” in thermal design, directly impacting product cost and reliability.
2. Intelligent Control: Flexible Dimming Technology
An industrial HMI doesn’t need to run at 100% brightness all the time. Intelligently reducing brightness in low ambient light or standby mode is the most effective way to save energy. There are two main dimming technologies:
- PWM (Pulse Width Modulation) Dimming:
- Principle: Rapidly switches the LED on and off at a fixed frequency far beyond the human eye’s flicker fusion threshold (typically >200Hz). By adjusting the duty cycle (the ratio of “on” time to “off” time), it changes the average brightness perceived by the human eye.
- Efficiency Advantage: Throughout the entire adjustment range, the current flowing through the LED when it’s on is always its rated value. This ensures the LED’s luminous efficiency and color spectrum remain virtually unchanged. PWM dimming is widely recognized as the most efficient and color-accurate dimming method.
- Important Note: The choice of frequency is critical. A low PWM frequency (e.g., below 100Hz) can cause visual fatigue in some sensitive individuals or appear as stripes on high-speed cameras. Professional industrial-grade HMIs use high-frequency PWM in the kilohertz (kHz) range to completely eliminate this issue.
- Analog Dimming:
- Principle: Directly changes the magnitude of the DC current flowing through the LED to adjust brightness.
- The Efficiency Trap: As the current decreases, the luminous efficiency of the LED also drops. Even worse, the change in current can cause a color shift in the LED, meaning the white light might appear yellowish or bluish. Therefore, it’s rarely used in applications requiring precise color representation.

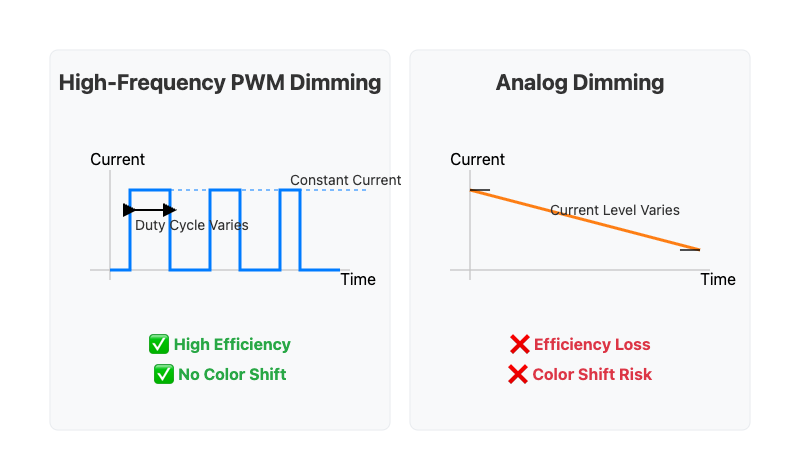

(Design Suggestion: A side-by-side diagram. The left column for “High-Frequency PWM Dimming,” showing a square wave and noting “Duty Cycle Varies, Current is Constant, Precise Brightness, No Color Shift.” The right column for “Analog Dimming,” showing a declining DC level and noting “Current Varies, Efficiency Loss & Color Shift Risk.”)
My Field-Tested Advice: When selecting or designing an HMI, be sure to confirm the backlight driver solution with your supplier. Prioritize LCD modules that use a combination of a “high-efficiency Boost driver + high-frequency PWM dimming.” This configuration is the only way to maximize energy efficiency while ensuring excellent visual performance.
III. Energy Efficiency = Business Value: Four Core Benefits for Your HMI
Saving a little on the electricity bill is just the surface. The energy efficiency advantages of LED backlights ultimately translate into tangible business and product competitiveness:
- Reduced Total Cost of Ownership (TCO): For HMIs running 24/7 on production lines, the cumulative electricity savings are substantial. The longer lifespan of LEDs (50,000+ hours vs. 20,000 hours) also means lower maintenance and replacement costs.
- Enhanced System Reliability and Lifespan: This is the most critical point. Lower power consumption directly translates to less heat generation. According to the rule of thumb, for every 10°C decrease in the operating temperature of electronic components, their lifespan roughly doubles. A cooler internal temperature for the HMI means all components—CPU, memory, capacitors—operate in a more comfortable environment, significantly reducing the overall failure rate.
- Simplified Thermal Design and Lower BOM Cost: Less heat means you can use smaller, cheaper heat sinks, or even eliminate cooling fans entirely for a fanless, passive cooling design. This not only reduces the Bill of Materials (BOM) cost but also eliminates the fan as a mechanical point of failure, enhancing the device’s resilience in harsh environments with dust or moisture.
- Enabling More Compact and Thinner HMI Designs: Without the need to reserve space for bulky cooling systems, your HMI products can be made lighter, thinner, and more aesthetically pleasing, better aligning with modern industrial design trends and the integration needs of compact equipment.
[Interactive Tool Placeholder: HMI Efficiency TCO Savings Calculator]
(Functionality Suggestion: Design a simple web module with the following inputs:
- Number of HMIs on your production line: [ ] units
- Average daily operating hours: [ ] hours
- Your industrial electricity rate: [ ] $/kWh
After the user clicks “Calculate,” it dynamically displays:
“Compared to traditional CCFL-backlit HMIs, your upgraded equipment provides:
- Estimated Annual Electricity Savings: $XXX
- Increased Average Equipment Lifespan by: XX%
- Reduced Risk of Downtime due to Overheating by: XX%”
This tool turns abstract benefits into visible, personalized value for the user.)
Conclusion: Make Energy Efficiency a Core Metric in Your HMI Selection
Against the backdrop of Industry 4.0 and global carbon neutrality goals, energy efficiency is no longer an optional parameter but a core indicator of an industrial product’s sophistication.
By choosing an HMI with a high-efficiency LED backlight system, you’re getting far more than just a brighter screen. You’re getting a more cost-effective, reliable, durable, and better-designed terminal.
Therefore, I strongly recommend adding the following questions to your checklist the next time you evaluate an HMI or LCD module:
- Backlight Type: Confirm it is LED, not CCFL.
- Driver Efficiency: Ask for the typical conversion efficiency of the LED Driver (>90% is good).
- Dimming Method: Confirm the dimming technology; prefer high-frequency PWM dimming.
- Rated Power Consumption: Horizontally compare the total power consumption of different products of the same size and brightness.
Remember, every bit of scrutiny on energy efficiency is a serious investment in your product’s long-term value and your customer’s trust.
