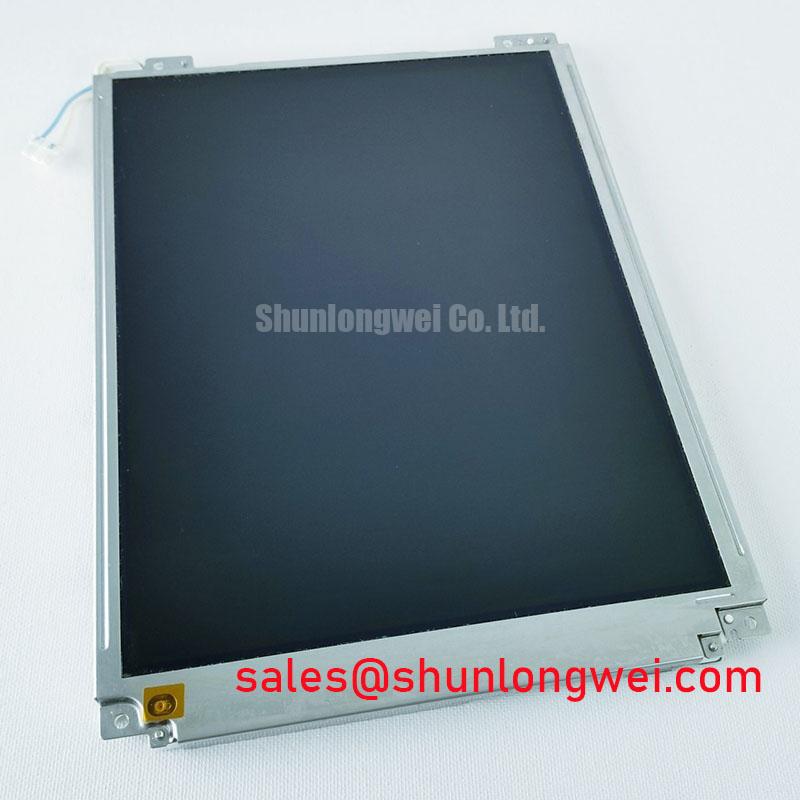

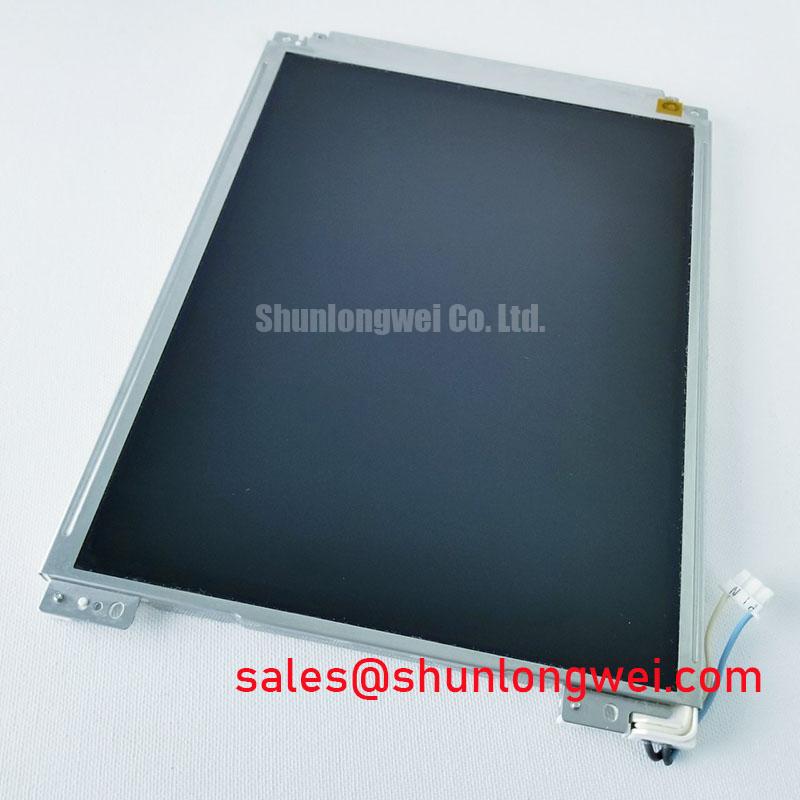

Sharp LQ10D32A | A Legacy of Reliability in Industrial TFT LCD Displays
In an industry often driven by the newest and highest resolution displays, the Sharp LQ10D32A stands as a testament to the enduring value of reliability, stability, and fitness-for-purpose. This 10.4-inch VGA TFT-LCD is not designed to compete on pixel density; it's engineered to perform flawlessly for years in demanding industrial environments. For system integrators and engineers maintaining or developing long-lifecycle equipment, the LQ10D32A offers a proven, cost-effective, and readily available HMI solution that minimizes integration risk and maximizes operational uptime.
Key Technical Specifications
The following parameters highlight the core performance characteristics of the Sharp LQ10D32A, tailored for industrial clarity and robustness. For a comprehensive breakdown, you can Download the full LQ10D32A datasheet.
| Parameter | Specification |
|---|---|
| Display Size | 10.4 inch (26 cm) diagonal |
| Resolution | 640(RGB) x 480 [VGA] |
| Panel Technology | a-Si TFT (Amorphous Silicon) Active Matrix |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) |
| Backlight System | 1 pc CCFL, with inverter |
| Interface Type | Parallel RGB (1 ch, 6-bit) |
| Operating Temperature | 0 ~ +55 °C |
An Engineering Deep Dive: Why Mature Technology Excels
While modern displays boast advanced features, the engineering choices behind the Sharp LQ10D32A prioritize long-term stability—a critical requirement in many industrial sectors. This focus on proven technology is a strategic advantage, not a limitation.
- Amorphous Silicon (a-Si) TFT Foundation: The use of a-Si TFT technology is a deliberate choice for industrial applications. This mature manufacturing process delivers exceptional panel-to-panel consistency and a highly predictable performance curve over its entire operational life. Unlike newer technologies that can have initial production variances, a-Si is a known quantity, simplifying quality control and ensuring that replacement units perform identically to the original. For a broader understanding of the technology, explore our ultimate guide to TFT-LCDs.
- Serviceable CCFL Backlight: The Cold Cathode Fluorescent Lamp (CCFL) backlight system is a key feature for long-lifecycle equipment. While LEDs are common today, CCFLs in this configuration are typically user-replaceable. This means a faded backlight doesn't necessitate replacing the entire display module, drastically reducing maintenance costs and extending the service life of the host equipment—a crucial factor in capital-intensive machinery.
Application Scenarios: Where Reliability is Paramount
The LQ10D32A is the ideal display solution where consistent performance outweighs the need for cutting-edge specifications. Its value is most evident in the following applications:
- Industrial Control Panels & HMIs: A perfect drop-in replacement for legacy systems or for new designs where the graphical interface is established and requires a standard 4:3 VGA format. Its robustness ensures it can handle the rigors of a factory floor.
- Medical Diagnostic Equipment: In devices like patient monitors or analysis machines, where uptime and clear, unambiguous data display are non-negotiable, the LQ10D32A's proven track record provides certified reliability.
- Test and Measurement Instruments: For oscilloscopes, spectrum analyzers, and other benchtop instruments, the display's role is functional clarity. The LQ10D32A delivers crisp, stable visuals for critical measurements without the unnecessary cost and complexity of a high-definition panel.
Frequently Asked Questions (FAQ)
Is the LQ10D32A a viable choice for new product designs?
Absolutely, for the right application. If your design requires a long-term stable supply chain, a standard VGA interface, and prioritizes operational reliability over high-definition video playback, the LQ10D32A is an excellent engineering choice. It avoids the potential obsolescence risks of consumer-grade panels and is built for the lifespan of demanding industrial machinery.
What should be considered for long-term maintenance of the CCFL backlight?
The primary consideration is the rated lifespan of the CCFL tube (typically 25,000-50,000 hours to half-brightness). Planning for periodic replacement of the backlight and inverter is a best practice for mission-critical systems. The advantage of the LQ10D32A is that this is a straightforward field-service operation, unlike integrated LED backlights which often require a full panel replacement.
For systems requiring this level of durability and straightforward serviceability, the Sharp LQ10D32A remains a premier choice among industrial LCD displays. If you are evaluating this panel for your project or need assistance with integration, please contact our technical team for expert guidance.
