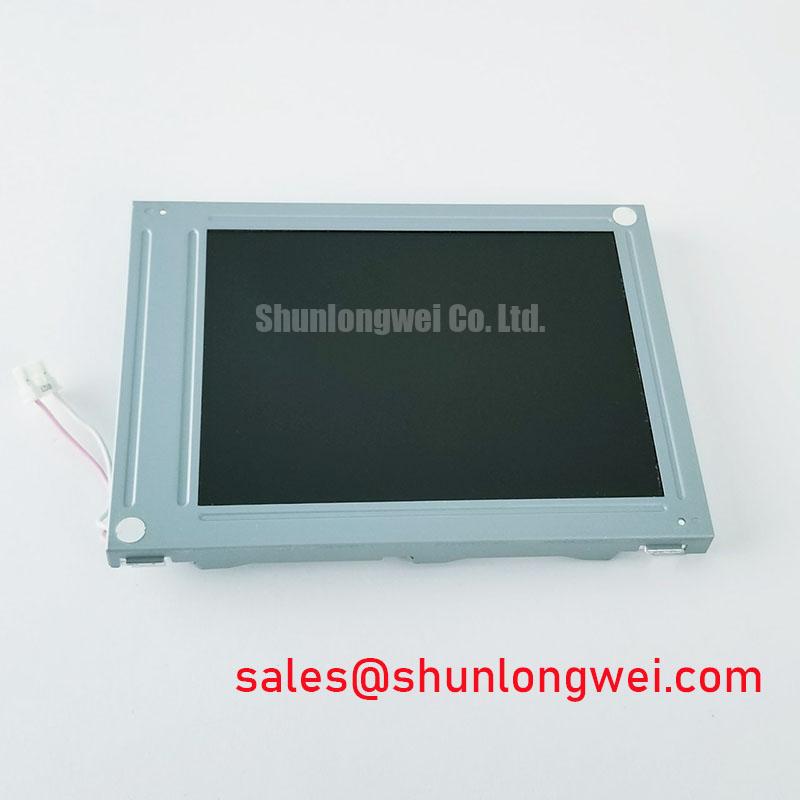

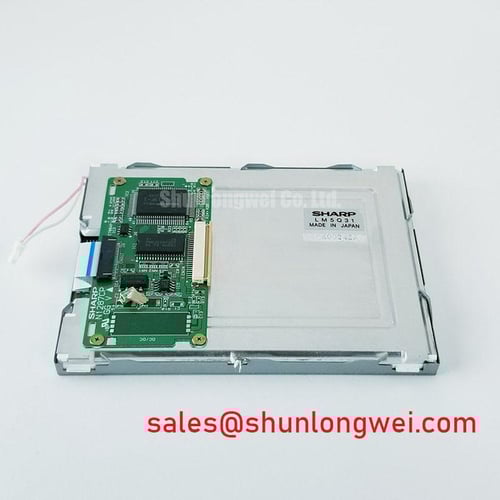

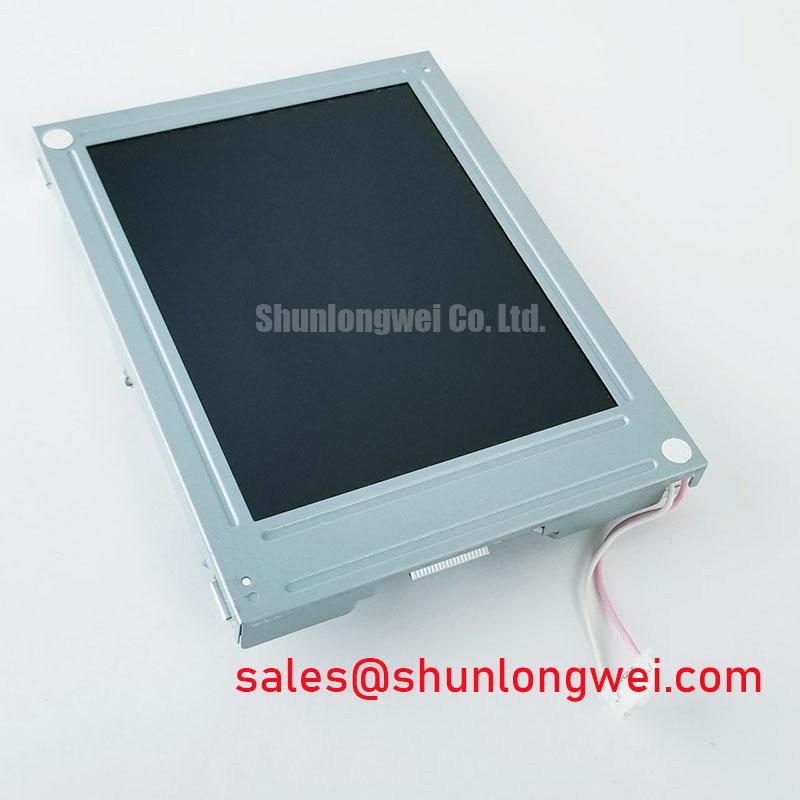

Sharp LM5Q31 | Proven QVGA CSTN Display for Industrial Longevity
The Sharp LM5Q31 is a testament to robust engineering, delivering reliable color visualization for long-lifecycle industrial, medical, and test equipment. Designed as a workhorse display, it provides a direct, form-fit-function replacement for a vast array of human-machine interfaces (HMIs) where clarity, durability, and system compatibility are paramount. For engineers maintaining or recertifying established systems, the LM5Q31 offers a path to extending operational life without costly redesigns.
- Perfectly Matched Resolution: The 320 x 240 (QVGA) resolution is ideally suited for legacy graphical user interfaces, presenting critical data, status indicators, and simple waveforms with excellent clarity.
- Cost-Effective Color: Utilizing Color Super-Twist Nematic (CSTN) technology, the display provides distinct color separation necessary for intuitive operator feedback, balancing performance with the power and cost constraints of its intended era.
- Integrated CCFL Backlight: Features a Cold Cathode Fluorescent Lamp (CCFL) backlight system, ensuring compatibility with existing high-voltage inverter driver boards common in older equipment.
- Industrial-Grade Reliability: Built by Sharp, a pioneer in LCD technology, the LM5Q31 is engineered for stable performance in demanding operational environments.
Key Technical Specifications
The following parameters are essential for system integration and verification. For exhaustive details, consulting the official component datasheet is always recommended.
| Parameter | Specification |
|---|---|
| Manufacturer | Sharp |
| Part Number | LM5Q31 |
| Screen Size | 5.0 inch (12.7 cm) |
| Resolution | 320(RGB) x 240 (QVGA) |
| Display Technology | CSTN (Color Super-Twist Nematic) |
| Pixel Pitch | 0.315 x 0.315 mm |
| Active Area | 100.8 x 75.6 mm |
| Backlight System | 1 pc CCFL with integrated inverter connector |
| Interface Type | 8-bit Parallel Digital (RGB) |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -25°C to +60°C |
Application Scenarios & Value Proposition
The Sharp LM5Q31 excels as a service and replacement part in systems where reliability and consistency are more critical than cutting-edge specifications. Its value is most evident in preserving the operational integrity of certified equipment, avoiding the high costs and risks of full system modernization.
- Legacy Process Control: In manufacturing and automation control panels, the LM5Q31 provides a clear, color-coded view of machine status, alerts, and process variables, serving as a drop-in replacement that requires no software or driver changes.
- Medical Monitoring Devices: For older-generation patient monitors, ventilators, and diagnostic tools, this display reliably presents vital signs and data. Its proven performance is crucial in environments where recertification is a major hurdle.
- Test and Measurement Instruments: Benchtop oscilloscopes, spectrum analyzers, and other specialized test gear from the 1990s and 2000s frequently relied on this exact form factor. The LM5Q31 restores original functionality and user experience for these critical tools. For a deeper dive into display engineering, explore our guide to reliable displays in heavy machinery.
Engineering for Compatibility: Why CSTN and CCFL Still Matter
While modern industrial LCD displays have moved to TFT and LED technology, the specific design of the LM5Q31 is its greatest strength for its target applications. The CSTN panel technology was a significant step up from monochrome, offering multi-color capability without the higher power draw and more complex drive electronics of early TFTs. For a system designed around its specific voltage and signal requirements, it remains the most efficient replacement.
Similarly, the CCFL backlight, while a legacy technology, is integral to its drop-in nature. An upgrade to a modern LED-backlit panel would necessitate a completely different driver circuit—changing from a high-voltage AC inverter to a constant-current DC driver. This modification is often impractical or non-compliant in certified systems. The LM5Q31's design eliminates this engineering challenge, making maintenance straightforward and predictable.
Frequently Asked Questions (FAQ)
What are the primary signs that an existing LM5Q31 needs replacement?The most common failure mode is related to the CCFL backlight. Telltale signs include a noticeable dimming of the display, a pinkish or reddish hue upon startup that slowly turns white, flickering, or a complete failure to light up. Physical damage or loss of specific pixel lines are other indicators.
Is it possible to upgrade a system using an LM5Q31 to a modern TFT display?While technically feasible, it's a significant engineering project. It involves not only matching the physical footprint but also adapting the logic signals for a different interface, redesigning the backlight power supply, and potentially rewriting firmware. For most service applications, replacing with a new LM5Q31 is far more time and cost-effective. For questions about your specific application, contact our technical team for expert advice.
How can I ensure maximum lifespan from a replacement LM5Q31?Ensure the system operates within the specified temperature range (0°C to +50°C). Overheating can accelerate the degradation of both the liquid crystal and the CCFL backlight. Additionally, proper industrial display maintenance, including gentle cleaning with appropriate solutions, prevents physical damage to the screen's surface.
