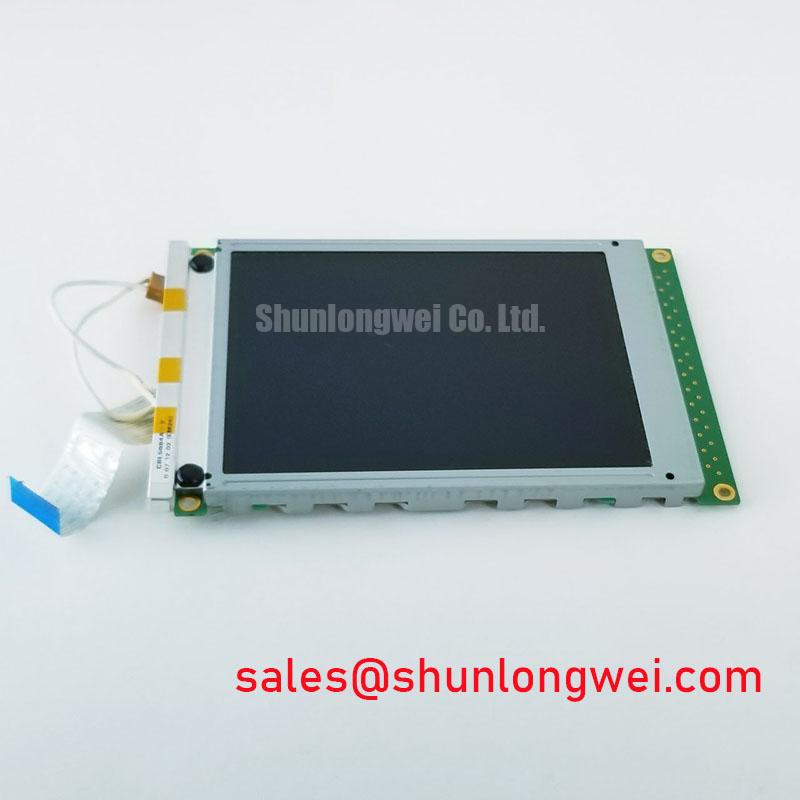

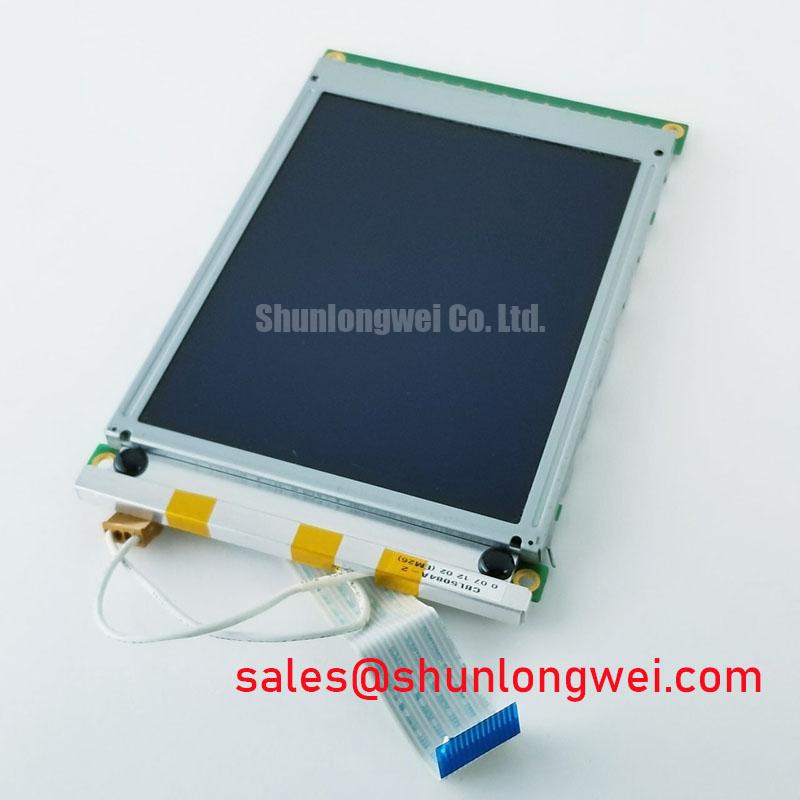

DMF-50840NF-FW-AUE-BIN | High-Contrast FSTN Display for Demanding Environments
The DMF-50840NF-FW-AUE-BIN is a monochrome graphic LCD module engineered for applications where clarity, reliability, and performance under challenging conditions are non-negotiable. It moves beyond standard display offerings by delivering superior visual performance and robust construction, making it an ideal human-machine interface (HMI) solution for specialized industrial and medical equipment.
- Technology: Film-compensated Super-twisted Nematic (FSTN) Positive, Transfmissive
- Key Advantage: Exceptional contrast and wide viewing angles for unambiguous data interpretation.
- Integrated Backlight: High-reliability white LED backlight ensures readability in all ambient lighting conditions.
- Core Applications: Industrial control panels, medical diagnostic devices, test and measurement instruments, and specialized POS systems.
Technical Deep Dive: Engineered for Clarity and Durability
The performance of the DMF-50840NF-FW-AUE-BIN is rooted in its core technological choices, designed to solve common pain points in industrial display integration.
Superior FSTN Display Technology
Unlike basic TN or STN displays, this module utilizes Film-compensated Super-twisted Nematic (FSTN) technology. An additional retardation film is applied to the liquid crystal cell, effectively eliminating chromatic aberration and dramatically improving the black-and-white contrast. For the system designer, this translates to a crisp, clear readout where critical data remains legible even from off-axis positions—a vital feature in busy factory floors or complex medical settings. This makes it a premier choice for industrial LCD modules that demand high readability.
Optimized LED Backlight System
The integrated white LED backlight is not just an add-on; it's a core component engineered for longevity and stable performance. It provides bright, even illumination across the entire display area, overcoming challenges from dim factory lighting to direct overhead glare. This robust LCD backlight system ensures consistent operational visibility and reduces the maintenance overhead associated with failing or dimming backlights in long-life equipment.
Multi-Faceted Applications: Where the DMF-50840NF-FW-AUE-BIN Excels
The true value of the DMF-50840NF-FW-AUE-BIN is demonstrated in how it elevates system performance in specific, demanding fields:
- Industrial Automation: In process controllers, PLC interfaces, or CNC machine panels, the display’s high contrast and resistance to vibration ensure operators can accurately monitor and input commands without error, minimizing downtime and improving safety.
- Medical Diagnostic Equipment: For devices like patient monitors or portable diagnostic tools, the sharp, unambiguous character display is critical. The FSTN technology provides the necessary clarity for reading vital statistics, ensuring no misinterpretation of critical health data.
- Test & Measurement Instruments: Field technicians using oscilloscopes, spectrum analyzers, or environmental sensors rely on immediate and precise readings. The DMF-50840NF-FW-AUE-BIN delivers the required visual precision, even in suboptimal field conditions, making it a reliable workhorse for portable instrumentation.
- Specialized Vending and Kiosk Systems: In outdoor or semi-outdoor transactional systems, its ability to operate across a wide temperature range and maintain readability makes it a far more reliable choice than consumer-grade displays.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Display Type | FSTN / Positive / Transfmissive |
| Resolution | 128 x 64 Dots |
| Controller IC | Sitronix ST7565R or Equivalent |
| Interface | Serial (SPI) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Backlight | White LED |
For complete design details, please refer to the DMF-50840NF-FW-AUE-BIN Datasheet.
Selection Guidance: FSTN vs. Standard Displays
When choosing a monochrome display, engineers often weigh options like standard STN against FSTN models like the DMF-50840NF-FW-AUE-BIN. While a standard STN display may suffice for basic indicators with a lower cost, its limitations become apparent in professional applications. STN often suffers from a narrower viewing cone and a yellowish or bluish tint that can compromise readability.
Opt for the DMF-50840NF-FW-AUE-BIN when your application demands:
- Mission-Critical Readability: The superior, paper-like contrast of a high contrast LCD is essential.
- Flexible Viewing Angles: The equipment may be viewed from various heights or angles.
- Enhanced Product Aesthetics: A crisp, clean black-and-white display elevates the perceived quality of the end product.
For projects with less stringent visual requirements or tighter budget constraints, a standard STN might be viable. However, for building best-in-class industrial or medical hardware, the modest investment in an FSTN display provides a significant return in usability and reliability. To discuss your specific application needs or to get a custom quote, please contact our technical support team.
