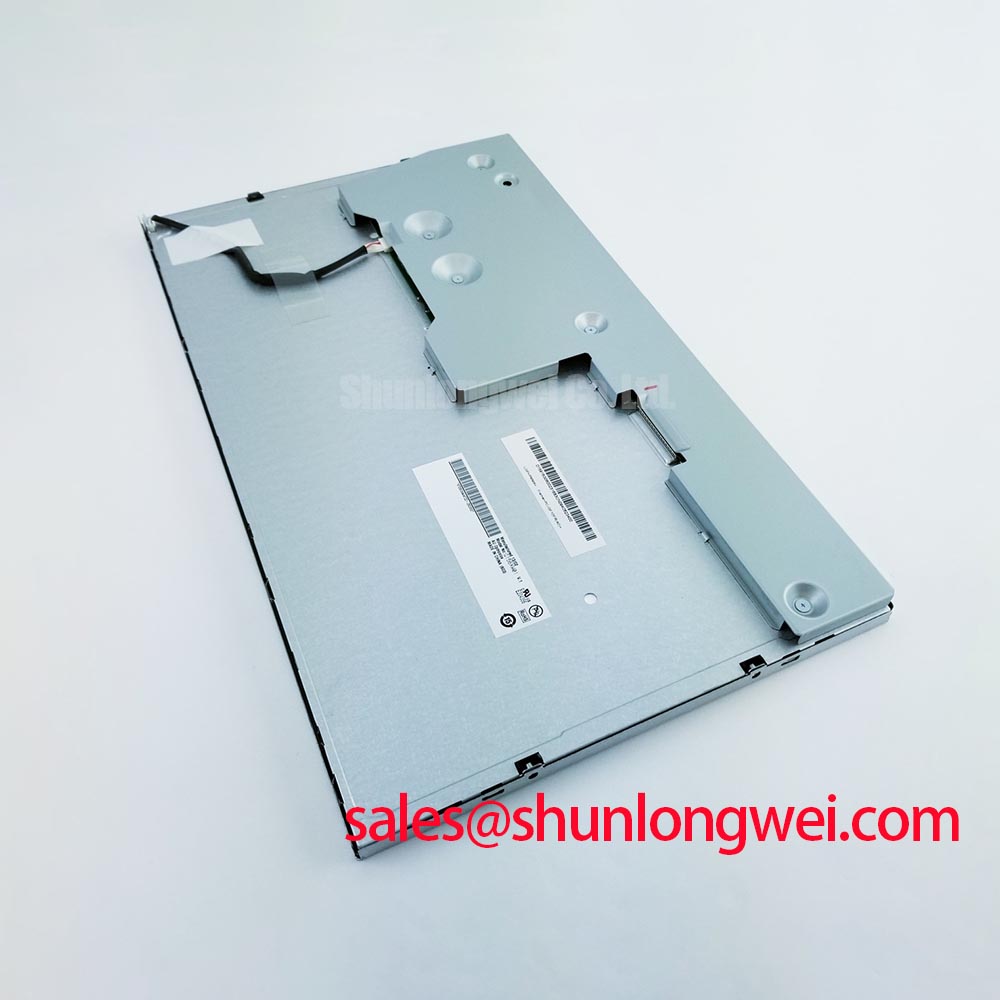

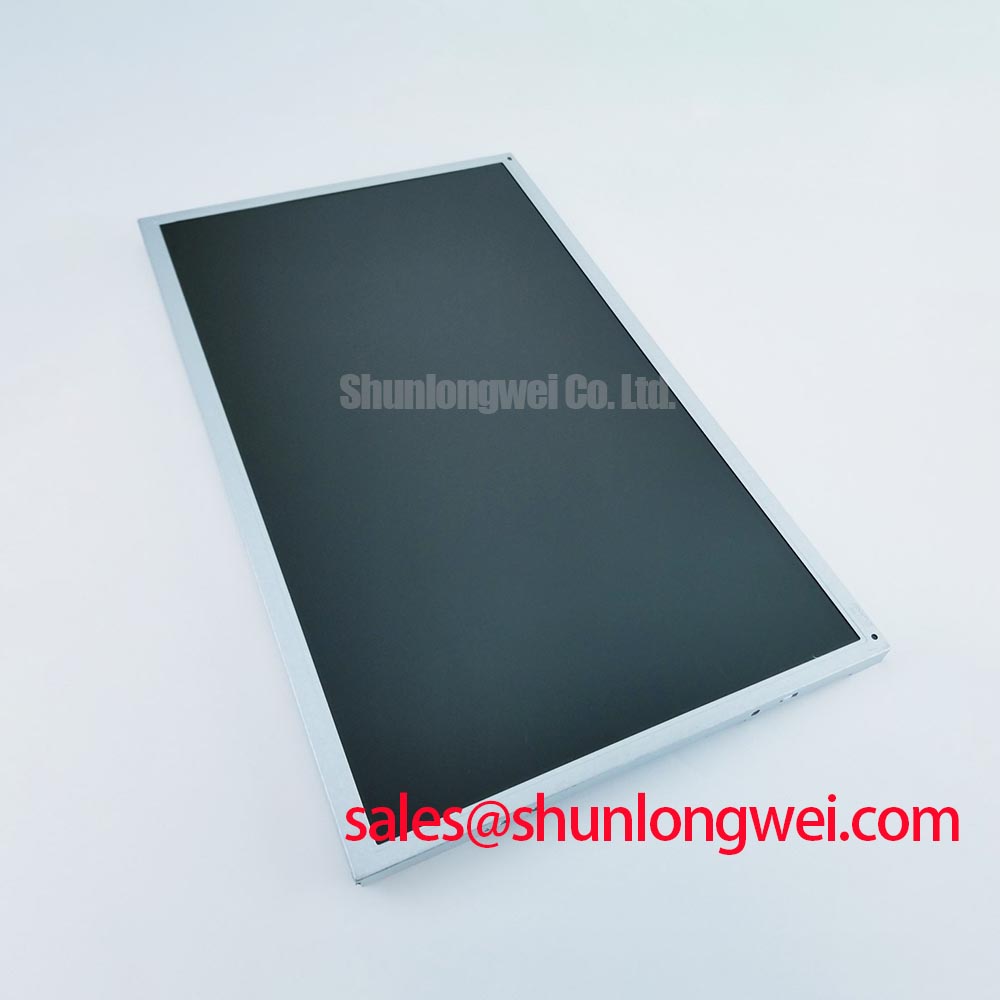

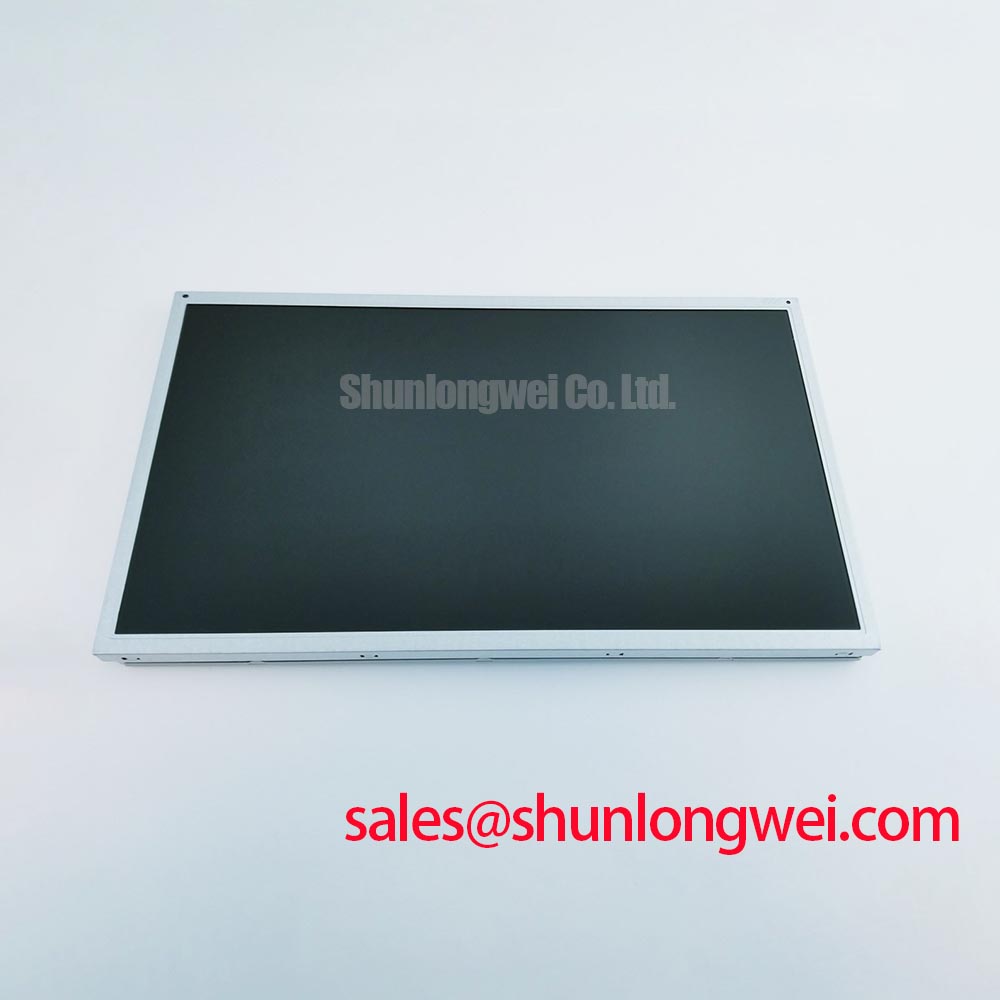

AUO G156XW01 V2 | Industrial-Grade 15.6" LCD with Superior Wide-Angle Visibility
The AUO G156XW01 V2 is a 15.6-inch TFT-LCD module engineered not just to display information, but to ensure its absolute clarity and reliability in demanding industrial environments. Moving beyond standard specifications, this panel is a strategic component for system integrators seeking long-term operational stability and a superior user experience in applications where visual performance is non-negotiable.
- Model: G156XW01 V2
- Brand: AUO
- Core Function: 15.6" WXGA (1366x768) Industrial Display
- Key Differentiator: Exceptional off-axis viewing performance and robust construction for high-reliability systems.
- Primary Applications: Industrial Human-Machine Interfaces (HMIs), medical diagnostic stations, transportation displays, and high-traffic information kiosks.
Technical Deep-Dive: Performance That Solves Problems
Two core attributes of the AUO G156XW01 V2 directly address common pain points in industrial display integration:
-
Advanced Wide Viewing Angle Technology
Technical Principle: The G156XW01 V2 utilizes an advanced liquid crystal alignment that maintains color fidelity and contrast ratio across a wide field of view (typically 80/80/80/80 degrees). Unlike conventional TN panels that exhibit significant color shifting and inversion when viewed off-center, this technology ensures a consistent image from virtually any angle.
Application Value: For an HMI mounted on a large machine or a medical device viewed by multiple clinicians, this is critical. It eliminates the risk of misinterpreting data due to poor viewing angles, enhancing both operational safety and collaborative efficiency. The image remains true, whether the operator is standing directly in front or monitoring from the side.
-
High-Efficacy LED Backlight with Anti-Glare Surface
Technical Principle: The panel incorporates a white LED (WLED) backlight system, renowned for its long operational life (often exceeding 30,000 hours) and stable brightness output. This is paired with an anti-glare (AG) surface treatment that diffuses incident light, minimizing specular reflections from overhead factory lighting or ambient sunlight.
Application Value: This translates directly to a lower total cost of ownership (TCO) by reducing maintenance cycles for backlight replacement. For operators, the AG surface significantly reduces eye strain and improves readability, preventing errors caused by glare. The display remains legible and comfortable to view throughout a long shift, even in challenging lighting.
Diverse Application Scenarios, Consistent Value
- Industrial Automation & HMIs: In a bustling factory, an operator's viewpoint is rarely static. The G156XW01 V2's wide viewing angles and anti-glare screen ensure that critical process data is always clear, reducing the potential for costly operational errors. Its wide operating temperature range guarantees performance in non-climate-controlled production areas.
- Medical Imaging and Patient Monitoring: In healthcare, accuracy is paramount. This display's consistent color reproduction allows doctors and nurses to confidently read vital signs and diagnostic images from various positions around a patient's bedside or in a lab, facilitating faster, more accurate decision-making.
- Transportation and Public Kiosks: For digital timetables or interactive information points, information must be accessible to a moving public. The brightness and wide visibility of the AUO G156XW01 V2 ensure content is easily readable for travelers and users, even in bright terminals or outdoor-adjacent locations.
Key Technical Parameters
| Parameter | Specification |
|---|---|
| Panel Size | 15.6 inches |
| Resolution | 1366(RGB)×768, WXGA |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Signal Interface | LVDS (1 ch, 6-bit) |
| Operating Temperature | -10 ~ 60 °C |
| Backlight | WLED, 30K hours (Typ.) |
Frequently Asked Questions (FAQ)
- What makes the G156XW01 V2 a better choice than a standard consumer-grade display?
The key differences lie in reliability and lifecycle. The G156XW01 V2 is built with industrial-grade components to withstand wider temperature ranges and longer operating hours. Crucially, it offers a stable, long-term supply chain, which is essential for industrial products with long service lives, unlike the short product cycles of consumer panels. - How does the LVDS interface benefit my design?
The LVDS interface is a robust standard known for its high noise immunity, making it ideal for electrically noisy industrial settings. This ensures stable signal integrity over longer cable runs from your controller board to the display, resulting in a flicker-free, reliable image. - Can this display be used in a portrait orientation?
Yes, the wide viewing angle technology makes the G156XW01 V2 highly suitable for both landscape and portrait mounting without significant loss of image quality, offering greater flexibility for your enclosure and application design.
By focusing on practical performance benefits and long-term reliability, the AUO G156XW01 V2 provides a dependable foundation for your next industrial or medical system. If you're looking to upgrade a legacy system or design a new product with uncompromising visual quality, this display is an excellent engineering choice. For detailed specifications or to discuss volume pricing, please Contact Us for a Quote and our experts will assist you. Or, feel free to Explore More Industrial LCD Modules to find the perfect fit for your project.
