The Industrial Revolution at Your Fingertips: A Deep Dive into the Ultimate Showdown Between Resistive (RTP) and Projected Capacitive (PCAP) Touchscreens
Hello everyone. In my 15-year career as a global Field Application Engineer (FAE), I’ve witnessed the evolution of industrial Human-Machine Interfaces (HMIs) from iron boxes packed with physical buttons to the sleek, intelligent tablet-like devices of today. A core driving force behind this revolution has been the leap in touchscreen technology.
However, choosing a touchscreen is far more complex than simply picking one that “works.” A wrong choice can lead to operators being unable to use the screen with gloves, or the screen exhibiting erratic “ghost touches” amidst high-frequency electromagnetic interference on the production line. This isn’t just an inconvenience; it’s a significant risk to production efficiency and safety.
Today, from the perspective of a frontline engineer, I will provide a deep analysis of the two mainstays in the industrial sector—Resistive Touch Panels (RTP) and Projected Capacitive (PCAP) touchscreens—to help you make the most informed and reliable decision for your complex project requirements.
1. The Technical Breakdown: How Do They Work?
To understand their differences, we must first start with their operating principles.

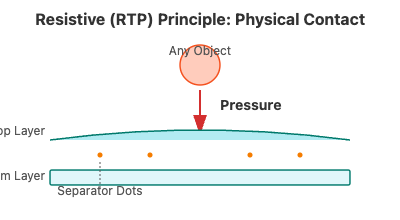

a. Resistive Touch Panel (RTP) – The Reliable “Pressure” Sensor
You can think of a resistive screen as two transparent, conductive layers (usually ITO film) separated by microscopic insulating dots.
- How it works: When you press the screen with a finger, stylus, nail, or any object, the flexible top layer bends to make physical contact with the bottom layer. The controller precisely locates the touch point by measuring the change in voltage along the X and Y axes where the contact was made.
- Core Concept: Pressure. An RTP screen responds to physical pressure, regardless of what is applying it.
b. Projected Capacitive (PCAP) Touchscreen – The Intelligent “Electric Field” Detector
PCAP technology shares its lineage with the screen in your smartphone, relying on the conductive properties of the human body.
- How it works: Beneath the glass substrate, an array of crisscrossing transparent electrodes (ITO) is etched. These electrodes generate a constant, stable electrostatic field. When a conductive object like a finger approaches, it couples with the field and draws away a small amount of charge, altering the capacitance at that specific node. The controller scans the entire electrode grid to detect this change in capacitance, enabling high-precision positioning.
- Core Concept: Electric Field. PCAP responds to the disturbance of this field by a conductive object.
2. The Head-to-Head Comparison: Core Differences in Industrial Applications
Now that we understand the principles, we can move to the most critical part: a comprehensive comparison based on the stringent standards of industrial applications.
| Feature | Resistive Touch Panel (RTP) | Projected Capacitive (PCAP) Touchscreen | Industrial Application Considerations |
|---|---|---|---|
| Activation Method | Pressure (any object works) | Capacitive Sensing (finger or special conductive stylus) | This is the most fundamental difference. RTP’s universal activation makes it “reliable” in any scenario. |
| Glove Operation | Excellent (works with any thick glove) | Requires special design (conductive gloves or firmware tuning) | [Decisive Factor] In heavy industry or chemical plants where thick protective gloves are mandatory, RTP has a natural advantage. |
| Multi-Touch | Not supported (single-point only) | Supported (typically 2-10 points) | PCAP’s support for gestures like pinch-to-zoom and rotate can bring a more modern and efficient experience to complex SCADA or MES systems. |
| Optical Clarity | Fair (light transmittance approx. 80-85%) | Excellent (light transmittance >90%) | RTP’s multiple film layers cause some light loss, making the image appear slightly dimmer. PCAP’s glass surface provides a clearer, brighter display. |
| Durability / Scratch Resistance | Poor (surface is a flexible film, easily scratched) | Excellent (surface is hard glass with high Mohs hardness) | For public-facing equipment or environments with a risk of scratching from hard objects, PCAP’s glass surface is far more robust. |
| Liquid Immunity | Excellent (immune to non-conductive liquids like water/oil) | Poor (water droplets can be falsely detected as a touch) | RTP is more stable in environments with frequent liquid splashes or cleaning, like food processing or medical fields. High-end PCAP can improve water rejection via algorithms. |
| EMI Immunity | Excellent (physical contact principle is nearly immune to EMI) | Fair (electric field is susceptible to interference) | In factories with strong EMI sources like VFDs or servo motors, RTP is more reliable. PCAP requires excellent controller and shielding design to improve immunity. |
| Cost | Low | Higher | RTP is a mature technology with a well-established supply chain, giving it a clear cost advantage. |
3. An FAE’s Field-Tested Wisdom: Choosing the Right “Weapon” for Your Scenario
As a senior FAE, my core principle is this: there is no “best” or “worst,” only the “most suitable” for the application.
Scenario 1: Heavy Industry, Harsh Environments (e.g., Metal Fabrication, CNC Workshops, Mining)
- Environmental Pain Points: Operators wear thick protective gloves; presence of oil, dust, and grime; numerous strong EMI sources like VFDs.
- My Recommendation: Resistive Touch Panel (RTP) is the first choice.
- Reasoning: In this scenario, the absolute reliability of operation is paramount. RTP’s perfect compatibility with any glove, immunity to liquid and oil contaminants, and superior EMI resistance make it the safest choice to ensure uninterrupted production. The “sleekness” of PCAP is meaningless here; an inoperable screen is the biggest failure.
Scenario 2: Smart Manufacturing, Automated Production Lines (e.g., Pharma, Food & Beverage, Consumer Electronics)
- Environmental Pain Points: High cleanliness standards, operators may wear thin latex gloves; HMI interfaces can be complex, requiring zoom functions for schematics or data curves; potential for liquid splashes.
- My Recommendation: This requires a trade-off, but the scales are tipping in favor of PCAP.
- Reasoning: A high-end PCAP solution is the superior option. Modern PCAP controllers, with special firmware tuning, can already support thin gloves and feature excellent water rejection algorithms. Their multi-touch capability and crystal-clear display significantly enhance the usability of complex interfaces. Here, the user experience improvement offered by PCAP outweighs its potential risks. Of course, if cost is extremely sensitive and the interface is simple, RTP remains a solid fallback option.
Scenario 3: Public-Facing Equipment, High-End Instruments (e.g., Outdoor EV Chargers, Medical Monitors, Building Automation)
- Environmental Pain Points: Requires a modern, aesthetic user experience; the screen is exposed to the public and needs to be highly scratch-resistant and durable; intuitive multi-touch is a major plus.
- My Recommendation: Projected Capacitive (PCAP) is the only choice.
- Reasoning: For these applications, “user experience” and “product image” are critically important. The smartphone-like fluidity, rugged and scratch-proof glass surface, and beautiful zero-bezel design that PCAP offers are things RTP simply cannot match. Its technical challenges (like outdoor water immunity) can be solved with proper mechanical design (e.g., IP rating) and advanced controller technology.
Conclusion: Choosing a Touchscreen is an Exercise in Deeply Understanding Your Application Environment
Ultimately, selecting a touchscreen is about matching the right tool to your specific work environment and core operational needs.
- Resistive (RTP) is a battle-hardened, rugged veteran. It doesn’t care how harsh the environment is; it will always execute the basic command. Its keywords are “Reliability” and “Universality.”
- Capacitive (PCAP) is a highly-skilled, intelligent modern expert. It provides an unparalleled interactive and visual experience, but it requires the right working conditions and a sophisticated “brain” (controller). Its keywords are “Experience” and “Performance.”
For your next project, don’t just ask, “Which touchscreen should I use?” Instead, ask yourself:
- What kind of gloves do my operators wear?
- What are the biggest sources of interference around my equipment?
- Does my user interface require multi-touch gestures?
- How important are my product’s image and user experience?
Once you have clear answers to these questions, your selection guide will point you to the right solution.
