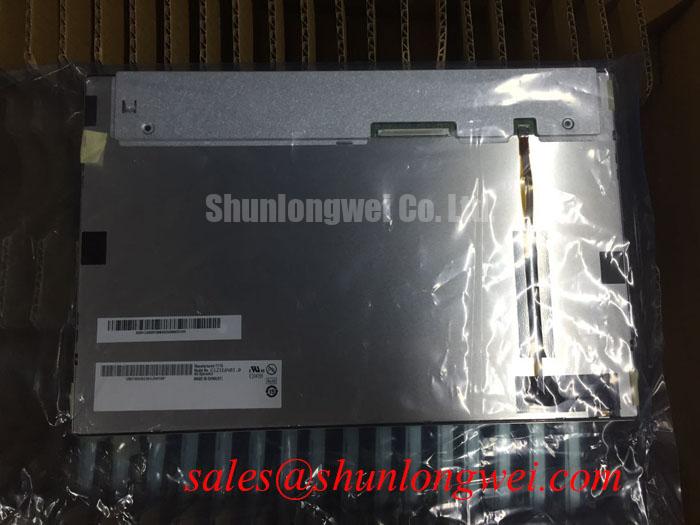

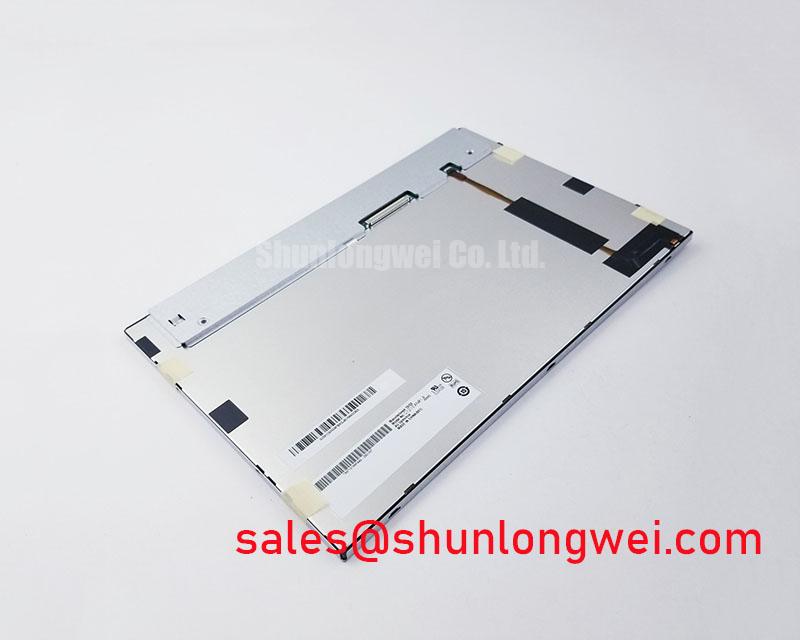

AUO G121EAN01.0 | High-Resolution 12.1" AHVA Display for Demanding Industrial Applications
The AUO G121EAN01.0 is an industrial-grade 12.1-inch TFT-LCD panel engineered for applications where visual precision, reliability, and wide viewing angles are non-negotiable. It leverages AU Optronics' advanced AHVA technology to deliver exceptional optical performance, making it a premier choice for next-generation Human-Machine Interfaces (HMIs), medical diagnostic equipment, and specialized instrumentation. This display isn't just a component; it's a foundation for building robust and user-centric systems that operate flawlessly in challenging environments.
Technical Deep Dive: The Engineering Behind the Image
Two core technologies set the G121EAN01.0 apart from standard commercial displays. Understanding these is key to appreciating its value in a professional design.
- Advanced Hyper-Viewing Angle (AHVA) Technology: Functionally similar to IPS (In-Plane Switching), AHVA is AUO's proprietary solution to eliminate the color and contrast shift that plagues older TN panels. By aligning liquid crystals parallel to the screen's surface, it ensures that colors remain true and contrast remains deep, even when viewed from extreme off-axis angles (up to 178°). For an HMI operator on a factory floor or a clinician reviewing diagnostic data, this means the information is always accurate, regardless of their position relative to the screen.
- High-Efficiency WLED Backlight System: Longevity is a cornerstone of industrial design. The G121EAN01.0 incorporates a white LED backlight system engineered for a long operational lifespan, typically exceeding 50,000 hours. This significantly reduces the total cost of ownership by minimizing maintenance cycles and costly downtime. The high-efficiency design also ensures optimal brightness with managed power consumption, a critical factor in thermally sensitive or battery-powered systems. Explore more about the fundamentals of TFT LCD technology in our guide.
Application Scenarios & Engineering Value
The specifications of the AUO G121EAN01.0 translate directly into tangible benefits across several key sectors:
- Industrial Automation & Control Panels: The WXGA (1280x800) resolution provides the screen real estate needed for complex SCADA interfaces and process diagrams. Its wide operating temperature range ensures reliable startup and operation in unconditioned factory environments, a common failure point for lesser displays.
- Medical Imaging & Patient Monitoring: In medical applications, color fidelity can be a matter of patient safety. The high color saturation and stable image quality of the AHVA panel provide the confidence clinicians need to make accurate assessments from diagnostic imagery or vital signs monitoring.
- Marine & Avionics Displays: The combination of high brightness and an anti-glare surface treatment ensures excellent readability in high ambient light conditions, such as a ship's bridge or an aircraft cockpit. Its robust build is designed to withstand the persistent shock and vibration common in these extreme operating environments.
Key Parameters Overview
This table provides at-a-glance data for system integration and initial design considerations. For complete specifications, always refer to the official datasheet.
| Parameter | Specification |
|---|---|
| Manufacturer | AUO (AU Optronics) |
| Model | G121EAN01.0 |
| Screen Size | 12.1 inch |
| Resolution | 1280 (RGB) × 800 (WXGA) |
| Display Technology | a-Si TFT-LCD, AHVA |
| Luminance | 500 cd/m² (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Contrast Ratio | 1000:1 (Typ.) |
| Signal Interface | LVDS (1 ch, 6/8-bit), 30 pins |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
Engineer's FAQ for the G121EAN01.0
Here are answers to common questions our engineers receive about integrating this specific display.
- Can this display be made sunlight-readable?While the native 500-nit brightness is strong for indoor and shaded outdoor use, true sunlight readability often requires 1000 nits or more. However, the G121EAN01.0 serves as an excellent base panel for enhancement through optical bonding and backlight modification to achieve higher brightness levels for challenging outdoor applications.
- What is the typical supply lifecycle for this panel?As one of AUO's industrial-focused products, the G121EAN01.0 is designed for long-term availability, typically 5-7 years from its launch. This stability is crucial for projects in the medical, military, and industrial sectors where product re-qualification is costly and time-consuming.
For detailed integration support or to discuss your specific project requirements for the G121EAN01.0, please contact our technical team for expert guidance.
