G121EAC01.0 AUO Industrial LCD HMI Panel Display Module

Content last revised on September 10, 2026

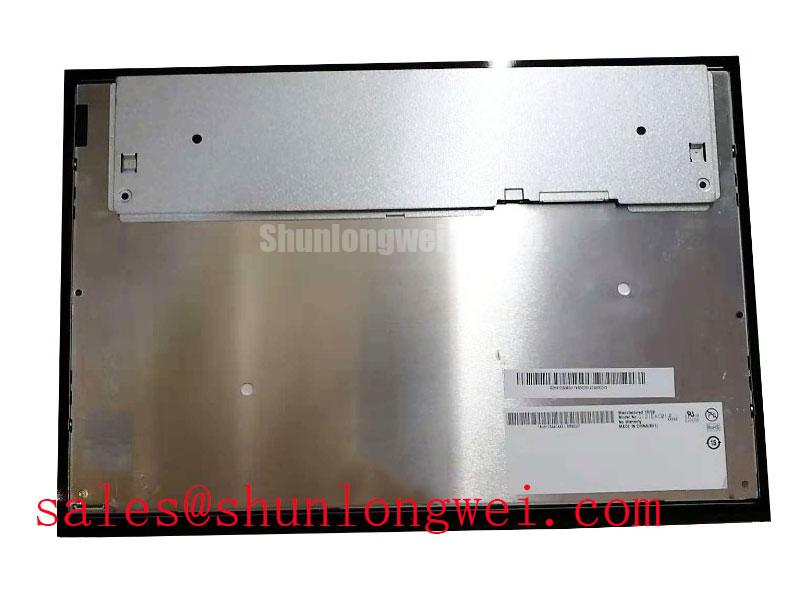

Incoming QA for the AUO G121EAC01.0 LCD Module

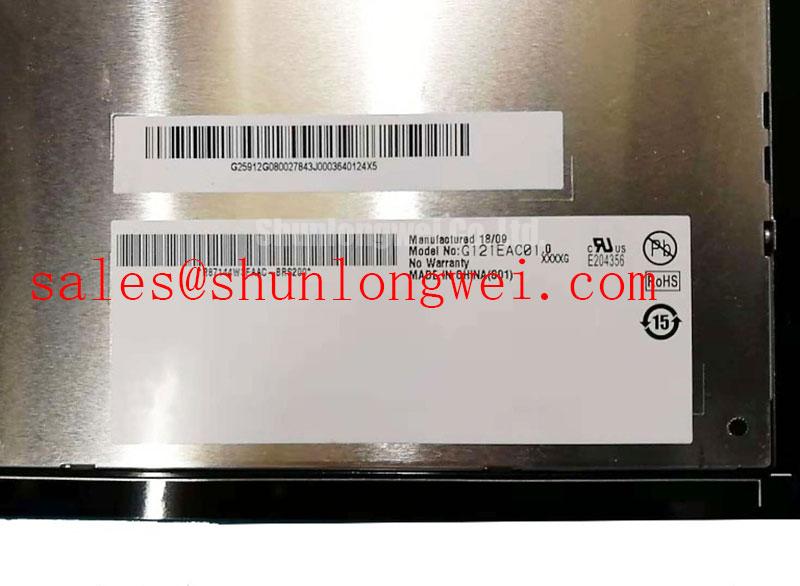

Begin incoming inspection by checking the AUO G121EAC01.0 label against the purchase record, then examine the TFT LCD Display Module for glass edge damage, frame deformation, connector contamination, and visible stress marks before applying power. Record the inspection condition and keep the panel protected from electrostatic discharge while handling the flexible connections.

The available factory information identifies this product as an Industrial Grade LCD/HMI Panel manufactured by AUO. Its package or construction description is TFT LCD Display Module, and its specification status is listed as Official Factory Spec Verified. The supplied product record does not confirm the panel resolution, active area, interface pinout, logic supply voltage, backlight type, brightness, contrast ratio, viewing angle, or operating temperature. Those values should therefore be checked against the original panel documentation before installation.

For equipment repair, the relevant question is not only whether the module produces an image. The replacement assessment should also cover connector orientation, cable reach, mounting clearances, image timing, backlight control, touch overlay compatibility where applicable, and the host system’s mechanical retention method. A panel with a similar diagonal size can still be electrically incompatible if the LVDS or TTL mapping, power sequence, enable logic, or backlight interface differs.

When the original unit is unavailable for comparison, photograph the host connector, cable route, mounting frame, and display surface before removal. Save the known-good display settings from the control board if the system permits this. For a railway passenger information system or cab signalling display, the integrator should also evaluate vibration exposure, enclosure sealing, glare, viewing position, and service access without assigning those characteristics to this AUO model unless they are confirmed in the applicable factory documentation.

Micro Twist Stress Checks and Primary Color Fault Isolation

Small mechanical twists during removal can create intermittent display faults that are difficult to reproduce on a repair bench. Place the module on a clean, level support and inspect the glass perimeter, connector stiffeners, and flexible cable entry points without pressing on the active area. The inspection should look for local discoloration, line defects, unstable sections of the image, or faults that change when the frame is gently repositioned. Do not flex the glass or apply pressure to the bonded connection area as a diagnostic shortcut.

A practical first test is a controlled three stage primary color sequence using full screen red, green, and blue images. Add black and white fields when checking for stuck pixels, open pixel lines, contamination, or uneven illumination. The purpose is to establish whether a defect follows a pixel location, a row or column, a signal region, or the illuminated background. Capture each result at the same camera angle and exposure so that a panel can be compared with the original unit without confusing photographic artifacts with display defects.

A 45 degree flashlight inspection can help separate an optical illumination problem from a driver line defect. With the display unpowered, use a low intensity flashlight at an oblique angle to inspect the surface for scratches, pressure marks, and localized reflections. With the display operating, compare the suspected region under a controlled dark room condition and then under normal ambient light. A dark region that remains fixed with the image pattern may require signal path investigation, while a bright or cloudy area that changes with viewing angle may require optical surface or backlight evaluation. This is an observation method, not a definitive failure signature.

Driver bonding areas should be treated as mechanically sensitive even when no internal bonding construction is specified for this model. Avoid twisting the module while tightening the frame, and route the flex cable so that the connector is not carrying the cable’s bending load. A connector that is not fully parallel during insertion can produce partial contact, image instability, or a display that starts correctly and fails after thermal movement.

Backlight control must be tested through the host system’s actual control circuit. The supplied factory data does not establish whether this unit uses a CCFL assembly, an LED assembly, a specific PWM input, or a particular dimming polarity. If the system applies PWM dimming, the engineer should verify the controller’s frequency range, duty cycle response, enable timing, and acoustic behavior against the original display documentation. A proposed 200 Hz to 1 kHz test window can be treated only as a system bench investigation range, not as an official rating for this model. Check brightness linearity with an optical meter rather than relying only on visual judgment.

💡 Bench Tip: Disconnect power before inserting or removing the display cable, use ESD protection, and engage the connector lock only after the flex cable is fully aligned and seated.

When a same size or similar resolution replacement is being evaluated, compare the complete interface and mechanical data rather than the product label alone. The G104VN01 V1 may be reviewed as a separate compatible device during repair planning, but the system integrator must verify its electrical, optical, and mechanical suitability independently.

Ambient Light, Surface Treatment, and Readability Evaluation

Inspect the front surface under the lighting conditions expected in service. Reflections from cab windows, overhead luminaires, instrument bezels, and protective covers can reduce readability even when the display image is electrically correct. Record the viewing direction, approximate ambient condition, and whether the defect is visible with the panel powered or unpowered. This helps distinguish surface reflection from luminance nonuniformity and image content problems.

The supplied product information does not confirm whether the G121EAC01.0 uses an anti glare etched surface, an anti reflective treatment, a clear cover glass, or another optical finish. These characteristics must not be inferred from the model number. If a replacement is installed behind a protective window, evaluate the combined panel and window because a cover can introduce secondary reflections, haze, or changes in perceived contrast.

Panel technology is also not confirmed in the supplied specification. TN, IPS, and MVA architectures can show different grayscale behavior and viewing angle characteristics, so the engineer should use the original panel documentation to identify the technology before making a direct comparison. Do not assign a symmetric viewing cone of 85°/85°/85°/85° to this model without a source specific to the unit. That figure can be used only as a comparison criterion when reviewing a documented alternative.

For high ambient illumination, test the display with representative white, gray, red, green, blue, and black fields. View it from the intended operator position and from practical off axis positions. Check whether dark details remain distinguishable, whether colors shift, and whether the surface produces a concentrated reflection that masks warning text. A contrast result such as greater than 500:1 at 50,000 lux must be treated as a target for a documented optical qualification, not as a confirmed factory parameter for the G121EAC01.0.

Brightness measurements should be made after the panel has reached a stable operating condition and with the same backlight setting used for the comparison unit. Take readings at the center and several edge locations, then compare the pattern rather than relying on a single peak value. If the host system uses automatic brightness control, disable or document that function during the comparison because changing drive conditions can be mistaken for panel nonuniformity.

Touch functionality requires a separate assessment. The available product record identifies an LCD/HMI panel but does not confirm a resistive or capacitive touch layer. If the assembly includes a touch overlay, verify its controller, cable, active area, glove response, water response, calibration data, and protective cover independently. For industrial control panels, test a dry finger, approved glove types, and controlled moisture only within the limits established by the touch supplier and the host equipment documentation.

Servo drives and switching equipment can create visible interference through cabling, grounding, or enclosure coupling. EMC evaluation is therefore a system level task. Route the display cable away from high current switching conductors where the enclosure permits, maintain the host manufacturer’s grounding arrangement, and verify the image while the relevant motor or converter operates through its normal cycle. The LCD module itself should not be described as independently certified to CISPR, EN 55011, or another complete equipment EMC standard.

LVDS or TTL Routing and Timing Verification

Before connecting the panel to a replacement controller, identify the interface from the original documentation and connector drawing. The supplied product record does not confirm whether G121EAC01.0 uses LVDS, TTL, or another signal arrangement. Do not assume a connector with the same number of contacts has the same pin assignment. Confirm signal names, ground positions, logic levels, backlight pins, enable signals, and cable orientation from the panel and controller documentation.

For an LVDS implementation, controlled differential routing is a design consideration because discontinuities in the cable, connector, and transition region can reduce signal margin. A nominal 100 ohm differential impedance is a common design reference for LVDS interconnects, but it is not a confirmed rating of this AUO module. The system designer should verify the controller output standard, cable construction, termination arrangement, and measured waveform at the panel connector. An oscilloscope comparison with a known good system can help identify ringing, excessive common mode movement, or timing instability without assigning a single cause to a split screen or intermittent image.

JEIDA and VESA data mapping are not interchangeable assumptions. Verify the color bit arrangement, clock polarity, lane order, and any reduced color mode selected by the controller. Incorrect mapping can produce color errors, misplaced image regions, or an apparently functional picture with incorrect grayscale. The panel documentation and controller settings must be checked together before changing firmware or replacing the display.

Power sequencing should be measured at the panel connector during a complete cold start and restart. The applicable logic supply voltage is not provided in the supplied factory record, so the system integrator should verify the required voltage from the original panel documentation rather than selecting between possible values. If a controller specification defines a power rise interval, measure that interval with the actual harness connected. A rise time described in a controller design, such as 0.5 ms to 10 ms, must not be presented as an official G121EAC01.0 requirement without model specific documentation.

When the image is split, unstable, or absent, inspect the sequence in a controlled order. Confirm supply presence at the panel connector, verify that grounds remain continuous under operation, check the clock and data activity, and compare the signal path with the original unit. Then inspect cable seating and mechanical strain. A fault may involve timing configuration, impedance discontinuity, connector contact, power sequencing, or the controller itself, so the observed symptom should guide measurements rather than dictate a single diagnosis.

Cold temperature testing requires additional care because liquid crystal response can change with temperature. The supplied data does not confirm a specific response time, GTG value, operating range, or heater requirement for this model. If the display is considered for a low temperature railway information or cab signalling enclosure, the integrator should measure startup behavior, grayscale transitions, image retention, and backlight response at the intended environmental limits. Any heater strip, thermostat, or enclosure warming method must be designed and validated by the system engineer, including condensation control and power budget.

The surrounding display architecture can include a dedicated interface or backlight control board. During topology review, engineers may examine the TCG121WXLPAPNN-AN20-S as a separate display related solution. Compatibility remains dependent on the actual connector, timing, power, and mechanical requirements of the equipment.

Backlight Condition and Retrofit Assessment

Evaluate the backlight separately from the image data path. Display a uniform white field and inspect the center, corners, and edges for dark zones, bright bands, color variation, or startup delay. Repeat the test at the host system’s normal brightness setting and during a cold start if the equipment environment requires it. A black screen does not by itself prove a backlight fault because the controller may also have disabled the panel or failed to transmit image data.

The supplied factory parameters do not identify the backlight technology for G121EAC01.0. Do not assume that the module is a CCFL unit or an LED unit, and do not apply a retrofit driver until the original electrical arrangement, connector wiring, current regulation method, enable logic, and mechanical clearances have been confirmed. A CCFL cold ignition value of 1500 to 1650 Vrms, constant current LED operation, or 1000:1 PWM dimming should be treated as equipment or driver specific information unless it appears in the applicable documentation.

For a CCFL based assembly, the service assessment should include the lamp circuit, inverter behavior, insulation clearances, connector condition, and audible operation. High voltage measurement requires equipment rated for the circuit and a controlled procedure. For an LED based assembly, check whether the host uses regulated current, fault feedback, open load detection, or a separate brightness command. The replacement engineer should compare the original driver output with the required panel input rather than adapting a driver based only on connector shape.

Optical aging should be documented through repeated luminance measurements at the same drive condition. The factory record supplied for this product does not provide a half life, MTBF, luminance decay curve, or guaranteed operating hours. Therefore, a statement such as 50,000 hours to 50 percent brightness cannot be assigned to this model without a source specific to the panel or backlight assembly. A maintenance team can still establish its own trend record by storing date, operating setting, ambient condition, and measured luminance for each inspection.

When comparing a proposed LED modernization path, check the entire optical and electrical assembly. The result can be affected by diffuser geometry, mounting distance, current regulation, thermal transfer, dimming response, and the host enclosure. The retrofit should be accepted only after checking brightness uniformity, color appearance, startup behavior, conducted noise, acoustic behavior, and connector temperature under the intended duty cycle.

For fault prevention, keep the backlight cable separated from sensitive display signal wiring where the equipment layout allows, and verify the controller’s enable and fault signals during switching events. If the panel is intended for a railway information display or cab signalling console, the enclosure designer should assess glare, vibration restraint, serviceability, and environmental sealing as system responsibilities. Supporting engineering context is available in Industrial Display & HMI Solutions, while model specific decisions should remain tied to the applicable AUO documentation and measured equipment results.
