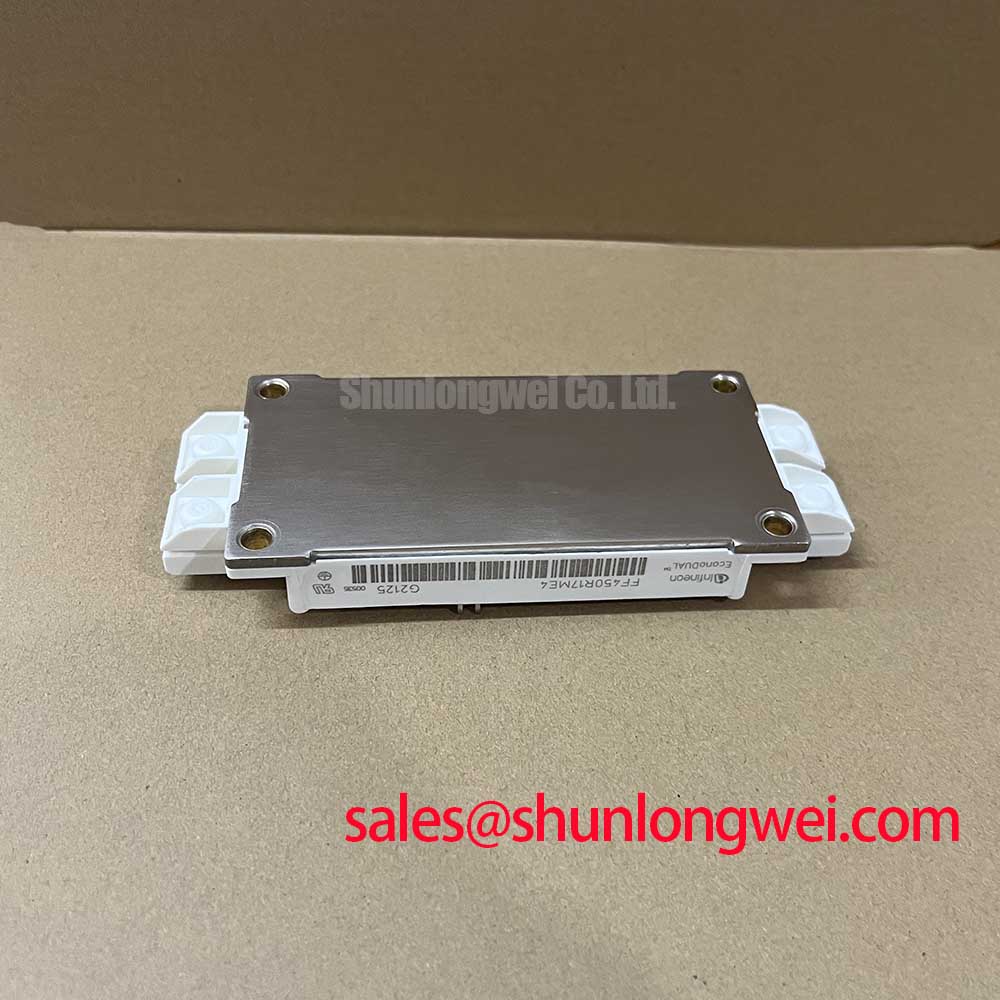

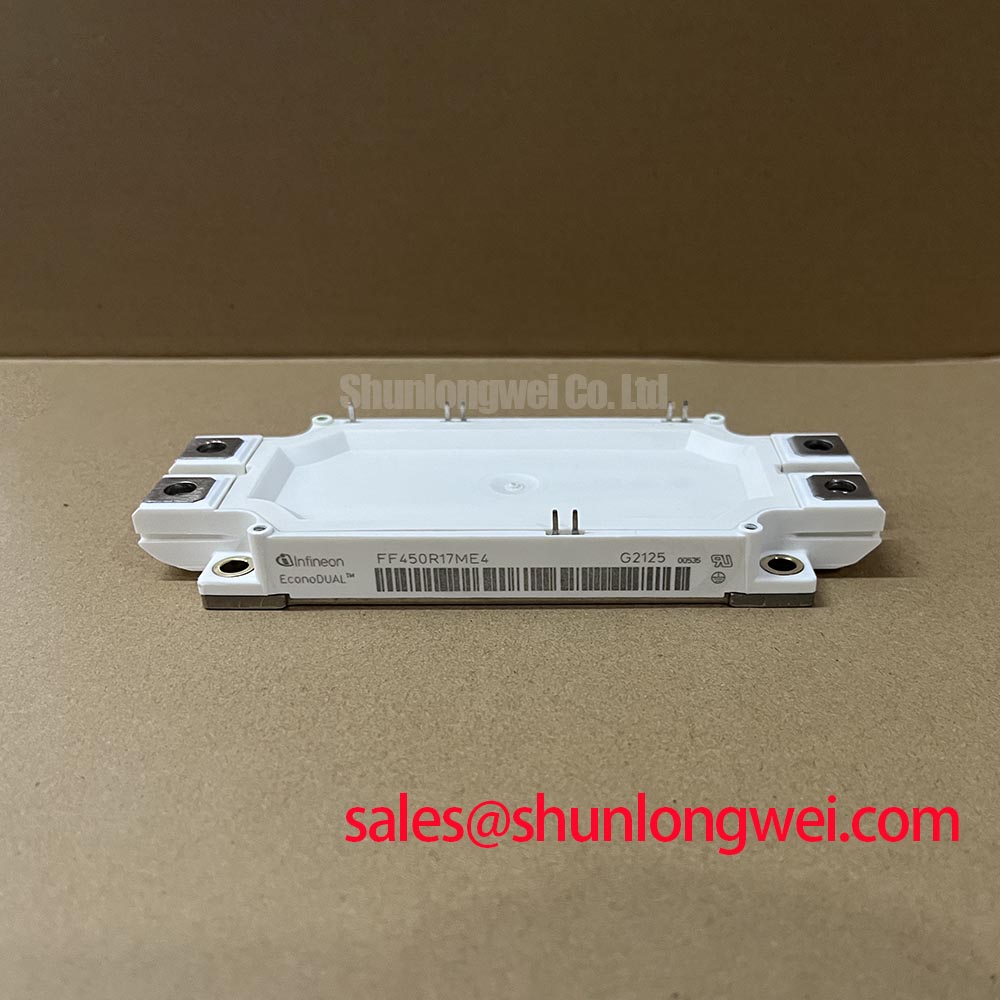

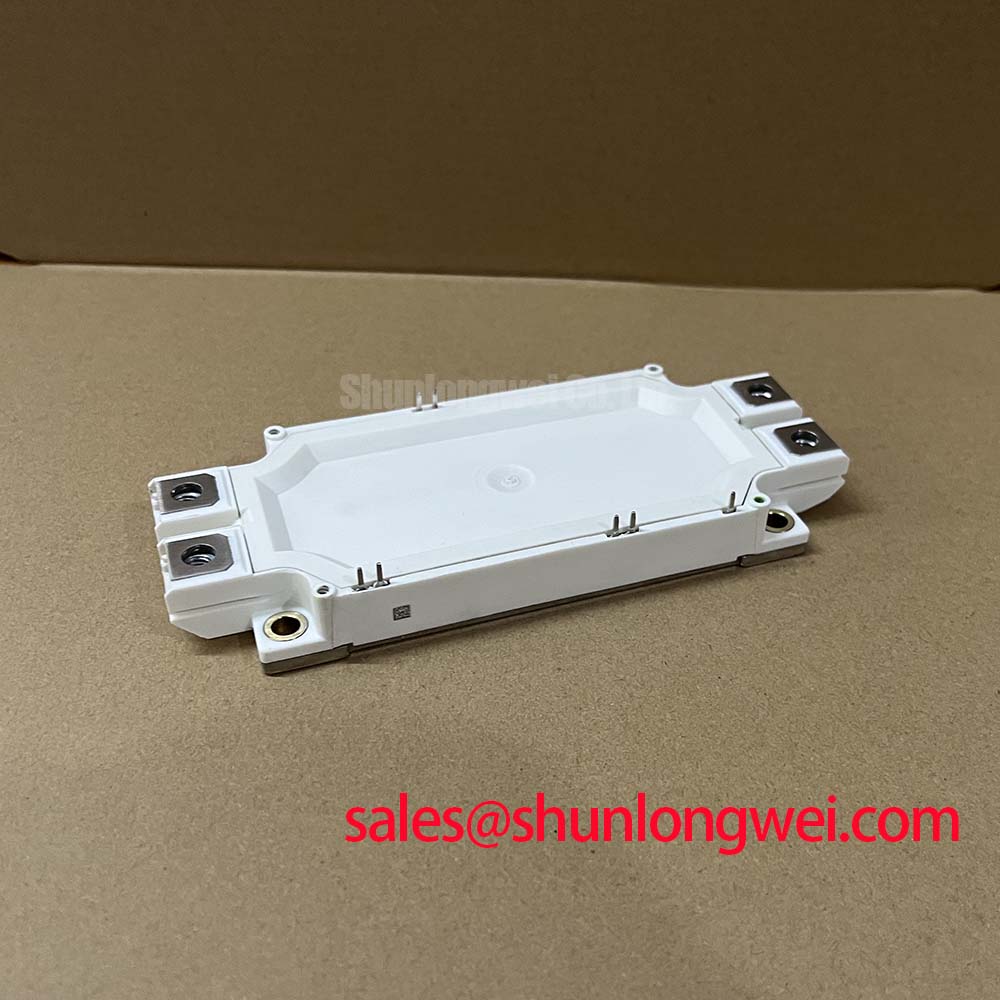

Infineon FF450R17ME4 1700V 450A EconoDUAL 3 IGBT Module
The FF450R17ME4, a flagship member of the Infineon EconoDUAL 3 family, is engineered to provide a superior thermal-electrical balance for high-voltage industrial applications. By utilizing TRENCHSTOP IGBT4 technology, this module offers engineers a robust solution for 1700V platforms, ensuring high power density and extended operational reliability in demanding environments.
UVP Statement: Optimized for high-voltage industrial grids, this module maximizes thermal headroom and switching efficiency to ensure 24/7 reliability in renewable energy and heavy-drive systems.
- Top Specs: 1700V | 450A | Tvj,op 150°C
- Key Benefits: Enhanced thermal cycling durability and minimized conduction losses for higher system efficiency.
A frequent technical challenge in 690V AC line-connected systems is the risk of overvoltage during grid fluctuations. The FF450R17ME4 substantially mitigates this risk by providing a 1700V blocking voltage, offering a critical safety margin that standard 1200V modules cannot provide. For 690V industrial drives prioritizing high thermal margin, this 1700V module is the optimal choice.
Application Scenarios & Value
Achieving System-Level Benefits in High-Voltage Power Conversion
Engineers often face the daunting task of scaling power output without increasing the physical footprint of the inverter cabinet. The FF450R17ME4 addresses this through its high current density EconoDUAL 3 package. In wind power inverters and solar central inverters, the ability to handle 450A at 1700V allows for a reduction in the number of parallel modules required, simplifying the busbar design and reducing parasitic inductance.
In traction drives and heavy industrial motors, the FF450R17ME4 excels due to its high Safe Operating Area (SOA). The module's TRENCHSTOP IGBT4 technology ensures low VCE(sat)—typically 1.95V at 125°C—which translates to lower heat generation during continuous operation. This directly impacts the longevity of the system by reducing the delta-T during load cycles. For engineers designing multi-level topologies, it is useful to note that for systems requiring higher current handling in similar voltage classes, the FF600R17ME4 offers a 600A rating in the same footprint.
This module is also a preferred component in Uninterruptible Power Supplies (UPS) and Static Var Compensators (SVC), where switching reliability is paramount. The integrated NTC thermistor provides real-time temperature monitoring, allowing the system controller to adjust switching frequencies or implement derating strategies before thermal limits are breached, thereby preventing catastrophic field failures. Further insights into optimizing these systems can be found in our guide on IGBT thermal management.
Technical Deep Dive
A Closer Look at Trenchstop 4 Technology for Long-Term Reliability
The core of the FF450R17ME4 performance lies in the IGBT4 chip architecture. To understand its value, think of the chip technology as a high-performance turbocharger: it allows the module to deliver more "power" (current) without needing a larger "engine" (package size), all while maintaining controlled "exhaust temperatures" (thermal losses). This technology incorporates a specialized trench-gate and field-stop structure that significantly reduces the carrier concentration near the collector, facilitating faster turn-off times and lower switching energy (Eoff).
Furthermore, the FF450R17ME4 utilizes Infineon’s Emitter Controlled 4 diode. This diode is specifically tuned to match the high-speed switching of the IGBT4, minimizing Reverse Recovery losses and electromagnetic interference (EMI). In high-frequency Variable Frequency Drives (VFD), this reduction in EMI simplifies the design of output filters. The module's packaging also plays a critical role; the EconoDUAL 3 design uses ultrasonic welding for internal connections, which is inherently more resistant to Power Cycling fatigue than traditional soldering. This structural integrity is explored in depth in our analysis of IGBT module packaging technologies.
Key Parameter Overview
Decoding the Specs for Enhanced Grid Stability
The technical specifications of the FF450R17ME4 are derived directly from the manufacturer's testing under stringent industrial conditions. The values below represent the operational boundaries essential for design-in. For more detailed switching loss curves and RBSOA characteristics, engineers should consult the official Infineon documentation.
| Parameter | Description | Typical Value |
|---|---|---|
| Vces | Collector-Emitter Voltage | 1700V |
| Ic | Continuous DC Collector Current (Tc=100°C) | 450A |
| Icrm | Repetitive Peak Collector Current | 900A |
| Vcesat | Collector-Emitter Saturation Voltage (Tvj=125°C) | 1.95V |
| Tvj,op | Maximum Operating Temperature | 150°C |
| Rthjc | Thermal Resistance (IGBT per Module) | 0.05 K/W |
| NTC | Integrated Temperature Sensor | Yes |
Download the FF450R17ME4 datasheet for detailed specifications and performance curves from the manufacturer's portal.
Frequently Asked Questions
How does the Tvj,op of 150°C impact the design of the cooling system?
The 150°C operating temperature limit provides a 25°C margin over older 125°C rated modules. This allows engineers to either use a smaller heatsink for a more compact design or maintain the same heatsink size to achieve a higher safety factor, significantly reducing the risk of thermal runaway during peak load conditions.
Why is the 1700V rating critical for 690V industrial line applications?
In a 690V system, the DC link voltage typically sits around 1100V. A 1200V IGBT Module offers almost no margin for voltage spikes. The 1700V rating of the FF450R17ME4 provides 600V of headroom, ensuring the module survives transients and inductive kickback common in heavy industrial environments.
What is the primary benefit of the integrated NTC thermistor in this module?
The NTC provides precise internal temperature data, allowing for advanced Thermal Management strategies. By knowing the actual module temperature rather than an estimated heatsink temperature, designers can push the module closer to its performance limits without compromising reliability.
Is the EconoDUAL 3 package compatible with existing industrial designs?
Yes, the EconoDUAL 3 is a standard industrial package footprint. It is designed for ease of integration with standard busbars and offers Kelvin Emitter terminals to improve switching accuracy and reduce gate-drive ringing.
How does the low Vce(sat) of 1.95V contribute to total cost of ownership (TCO)?
Lower Vce(sat) results in lower conduction losses, which directly translates to higher energy efficiency. Over the 10-20 year lifespan of a Solar Inverter or Wind Power system, these efficiency gains lead to significantly lower energy waste and reduced operational costs for the end-user.
As a specialized distributor, we provide technical data to empower engineering decisions. The FF450R17ME4 stands as a benchmark for 1700V power switching, combining the proven reliability of the EconoDUAL platform with the efficiency of IGBT4 silicon. For detailed procurement inquiries or technical comparisons with other 1700V solutions, please reach out to our engineering support team.
