Infineon FP50R12KE3 IGBT Module | A High-Efficiency CIB Solution

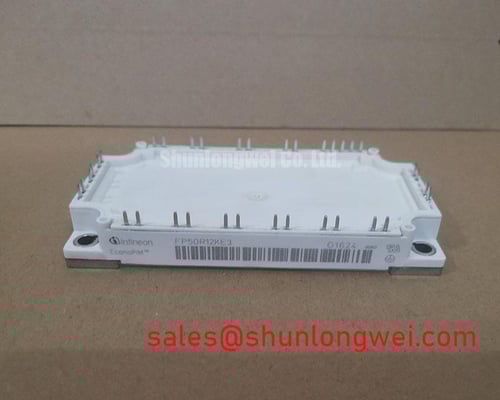

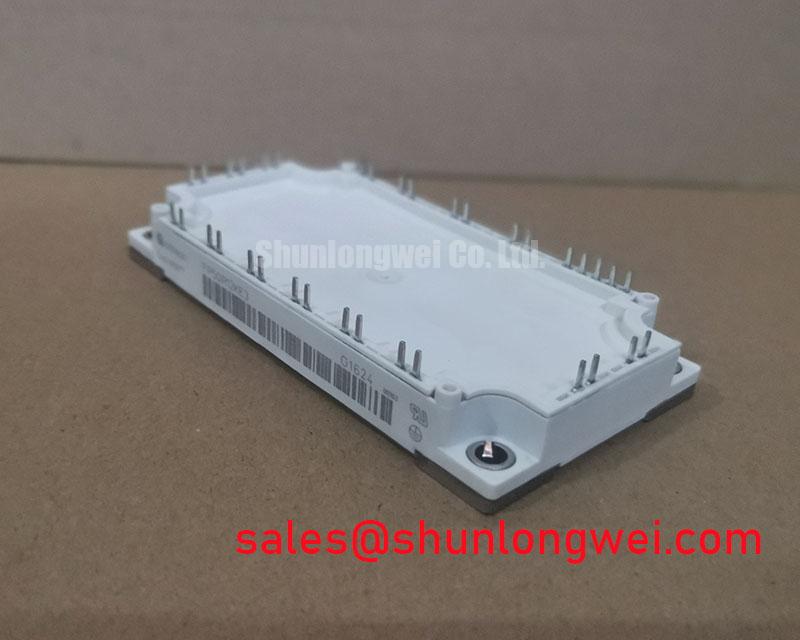

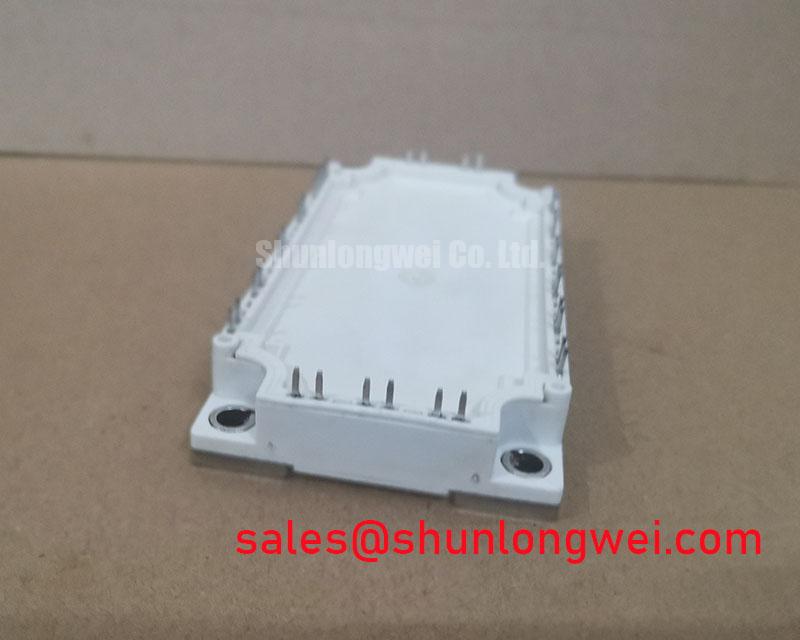

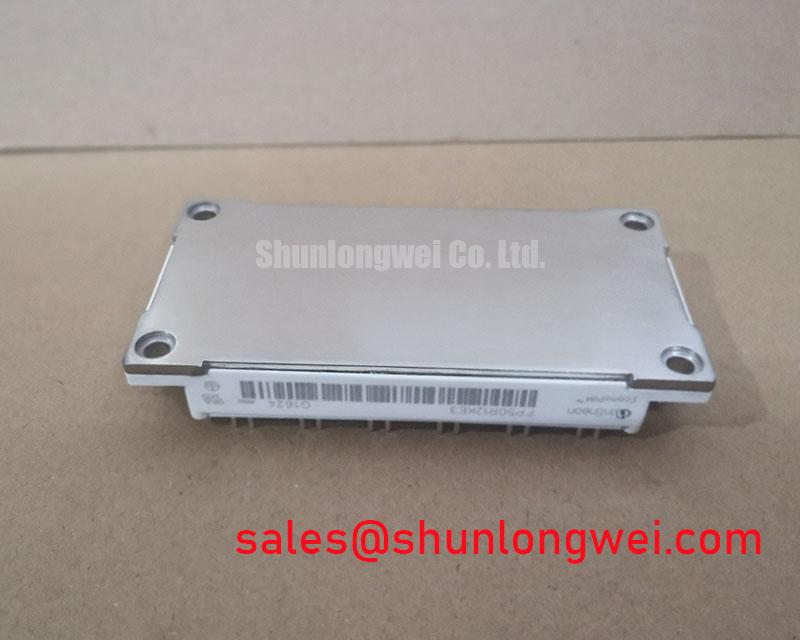

The Infineon FP50R12KE3 is a highly integrated Power Integrated Module (PIM) designed to streamline the development of compact and efficient power conversion systems. By housing a three-phase rectifier, a brake chopper, and a three-phase inverter in a single EconoPIM™ 3 package, this module offers a complete power stage solution, dramatically reducing system complexity and footprint for engineers building next-generation industrial drives.
Technical Deep Dive: IGBT4 and Integrated Topology
- IGBT4 Trench Field-Stop Technology: At the heart of the FP50R12KE3 lies Infineon's proven IGBT4 Trench Field-Stop technology. Unlike older planar IGBTs, this structure provides an optimized balance between conduction and switching losses. The low Vce(sat) minimizes power dissipation during on-state, directly translating to higher operational efficiency and reduced heatsink requirements. Furthermore, its "soft" switching characteristic helps to suppress voltage overshoots and minimize electromagnetic interference (EMI), simplifying the design of filter circuits.
- Converter-Inverter-Brake (CIB) Integration: The Converter-Inverter-Brake topology is a game-changer for space-constrained applications. Integrating these three critical functions into one module eliminates the need for multiple discrete components and complex busbar connections. This not only shrinks the overall system size but also significantly reduces stray inductance, leading to improved reliability and cleaner switching waveforms under heavy load conditions.
Where the FP50R12KE3 Excels: Application-Specific Value
- Compact Motor Drives: For variable frequency drives (VFDs), the FP50R12KE3's CIB design allows for a remarkably compact power stage. This enables the creation of smaller, more power-dense drive units, a critical advantage in crowded industrial cabinets. The integrated brake chopper efficiently manages regenerative energy from decelerating motors without requiring an external braking unit.
- Servo Control Systems: High-performance servo applications demand precision and rapid response. The fast and well-controlled switching of the IGBT4 technology within the FP50R12KE3 enables high-fidelity current loops, resulting in smoother motor operation and superior positioning accuracy.
- Uninterruptible Power Supplies (UPS): In UPS systems, reliability is paramount. The EconoPIM™ 3 package offers proven industrial-grade robustness. The module's integrated NTC thermistor provides essential real-time temperature feedback, allowing the system controller to implement thermal protection and prevent failures, ensuring maximum uptime.
- General Industrial Automation: Any application requiring a compact, all-in-one power conversion solution, such as pump controllers or HVAC systems, can benefit from the simplified design cycle and reduced assembly costs offered by this integrated IGBT module. Explore More IGBT Modules for your specific automation needs.
Infineon FP50R12KE3 at a Glance
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (V_CES) | 1200 V |
| Nominal Collector Current (I_C nom) | 50 A |
| Collector-Emitter Saturation Voltage (V_CE(sat), T_vj=125°C) | Typ. 1.85 V |
| Operating Junction Temperature (T_vj op) | -40 to 150 °C |
| Package | EconoPIM™ 3 |
For a complete list of electrical and thermal characteristics, please refer to the official FP50R12KE3 Datasheet.
Strategic Selection: FP50R12KE3 vs. Discrete Component Designs
Engineers often weigh the trade-offs between a fully integrated module like the Infineon FP50R12KE3 and a solution built from discrete components (e.g., a separate rectifier, brake IGBT, and a 6-pack inverter module). For applications in the sub-22kW range, the FP50R12KE3 typically presents a clear advantage. Its pre-optimized internal layout minimizes parasitic inductance—a common challenge in discrete designs that can lead to voltage overshoots and increased EMI. The single-module approach simplifies procurement, reduces assembly time, and offers a thermally optimized path to the heatsink. A discrete solution might offer more granular component selection for niche designs, but it comes at the cost of increased design complexity, larger PCB area, and higher assembly costs.
Frequently Asked Questions
- What is the primary benefit of the Press-Fit pins in the EconoPIM™ 3 package?Press-Fit pins enable a solder-free connection to the PCB. This simplifies and accelerates the manufacturing process, eliminates a high-temperature soldering step that can stress components, and makes module replacement much easier for field service.
- How does the integrated NTC thermistor improve system reliability?The NTC provides a direct, real-time temperature reading from the module's substrate. This allows the drive's control system to proactively manage heat by reducing output power or triggering a safe shutdown if a thermal limit is approached, preventing catastrophic failure and extending the operational life of the IGBT in motor drive applications.
If you are designing a power conversion system that demands high efficiency, reliability, and a compact footprint, the Infineon FP50R12KE3 IGBT module is an outstanding choice. For detailed pricing and availability, please Contact Us for a Quote.
