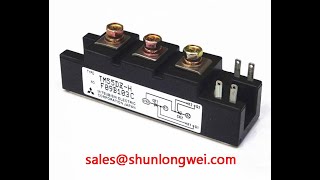

Mitsubishi TM55DZ-H Thyristor Module | Robust AC Power Control
The Mitsubishi TM55DZ-H is a 600V, 55A dual thyristor module engineered for reliable and precise control of AC power. This component is not just a switch; it's a cornerstone for building robust systems in demanding industrial environments. Designed for applications like motor soft starters, industrial heating, and high-power lighting control, the TM55DZ-H integrates two thyristors in a single, isolated package, simplifying design, enhancing thermal performance, and ensuring long-term operational stability.
Technical Deep Dive: Why the TM55DZ-H Excels in AC Control
The superior performance of the Mitsubishi TM55DZ-H stems from its purpose-built design features that directly address common engineering challenges in industrial automation and power conversion.
- Dual Thyristor Topology for Full-Wave Control: The module contains two SCRs (Silicon Controlled Rectifiers) configured in an anti-parallel arrangement. This intrinsic design allows for direct control over both the positive and negative halves of the AC waveform. For engineers, this translates to smooth and accurate phase-angle control, enabling precise power delivery to the load—a critical factor for applications requiring variable output, from gradual motor acceleration to exact temperature maintenance.
- Glass Passivated Junctions for Long-Term Reliability: At the heart of the TM55DZ-H are glass-passivated semiconductor junctions. This manufacturing process seals the sensitive high-voltage junction from ambient contaminants and moisture, preventing electrical degradation over time. The result is exceptionally stable blocking voltage characteristics and a significantly reduced risk of field failure, a key advantage for systems where uptime and minimal maintenance are paramount. This feature underlines its suitability for deployment in harsh industrial settings.
Application-Driven Performance: Solving Real-World Challenges
The theoretical advantages of the Mitsubishi TM55DZ-H translate into tangible benefits across several key applications. This isn't just a component; it's a problem-solver for your system.
- Motor Soft Starters: By gradually increasing the voltage to an AC induction motor, the TM55DZ-H effectively mitigates high inrush currents. This reduces severe electrical stress on the power grid and minimizes mechanical shock on gearboxes, belts, and couplings, thereby extending the lifespan of the entire electromechanical system.
- Industrial Heater & Furnace Control: Unlike simple on/off mechanical contactors, this thyristor module enables precise phase control. This allows for incredibly tight temperature regulation in industrial ovens and plastic molding equipment, leading to higher product quality, less material waste, and improved energy efficiency.
- High-Power Lighting Control: For theatrical stages, architectural lighting, or large industrial bays, the module provides flicker-free, continuous dimming control. It replaces bulky, noisy, and failure-prone mechanical contactors, offering a silent, solid-state solution with a vastly superior operational life.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Repetitive Peak Reverse Voltage (VRRM) | 600 V |
| Repetitive Peak Off-State Voltage (VDRM) | 600 V |
| Average On-State Current (IT(AV)) | 55 A |
| RMS On-State Current (IT(RMS)) | 86 A |
| Peak On-State Voltage (VTM) | 1.75 V (Max) |
| Isolation Voltage (Visol) | 2500 V (AC, 1 minute) |
For complete details, please refer to the official TM55DZ-H Datasheet.
Choosing the Right Tool: TM55DZ-H vs. Alternative Solutions
When designing an AC power control circuit, engineers often weigh different options. Here’s how the Mitsubishi TM55DZ-H compares:
- vs. Discrete Thyristors: While using two individual SCRs might seem cheaper initially, the TM55DZ-H offers a fully integrated, tested, and isolated solution. This drastically reduces assembly time, simplifies procurement, and eliminates guesswork in Thermal Management by providing a single, optimized thermal interface. The module approach minimizes parasitic inductance and ensures matched dynamic characteristics between the two internal thyristors.
- vs. Solid-State Relays (SSRs): SSRs provide a simple "black box" solution. However, the TM55DZ-H provides greater design flexibility, allowing engineers to customize the gate drive and protection circuitry for their specific load. It is often more robust in handling the severe current and voltage transients common in industrial environments compared to commercially available SSRs. Understanding the nuances of power semiconductor structures helps in making the right choice for your application's reliability needs.
By integrating key components into a single robust package, this module from Mitsubishi's power device portfolio accelerates development and enhances system reliability. If you are designing for robust, long-life AC control, the TM55DZ-H presents a compelling engineering advantage. Explore our full range of power modules or contact our technical team to discuss your specific project requirements.
