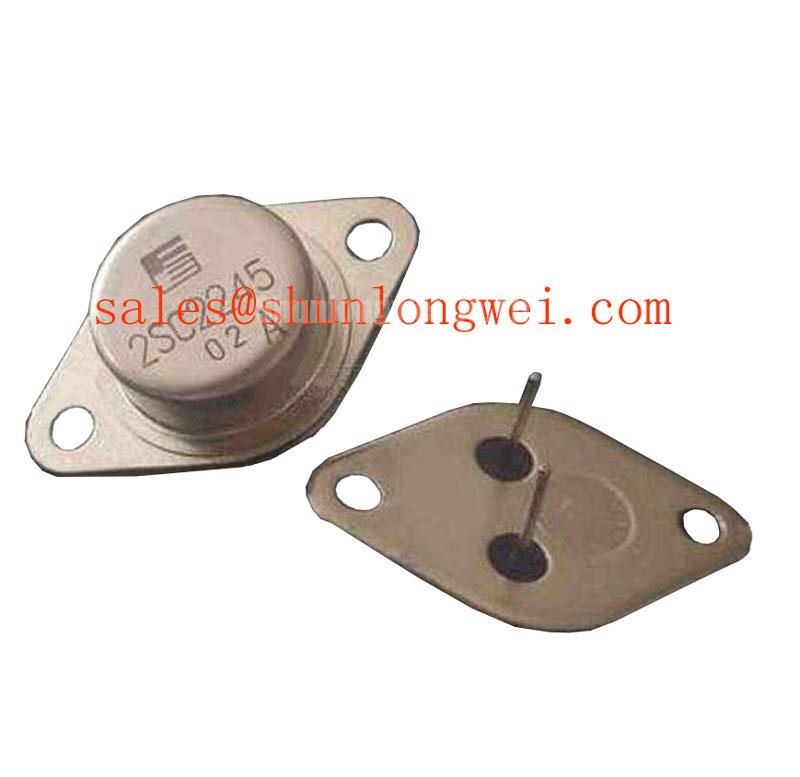

Features: High speed switching High reliability Applications: Switching regulators Utrasonic generators High frequency inverters General purpose power amplifiers Absolute maximum ratings(Ta=25°C ) Collector-base voltage VCBO: 500V Collector-emitter voltage VCEO: 400V Emitter-base voltage VEBO:7V Collector current IC:10A Collector Current-peak ICM: 3A Total power dissipation PC:80W Junction temperature TJ :150°C Thermal resistance from junction to mounting base Rth j-mb:1.0/W Suitable for 50KHz class switching fegulators.Allows transformers to be reduced in size
