Content last revised on April 15, 2025

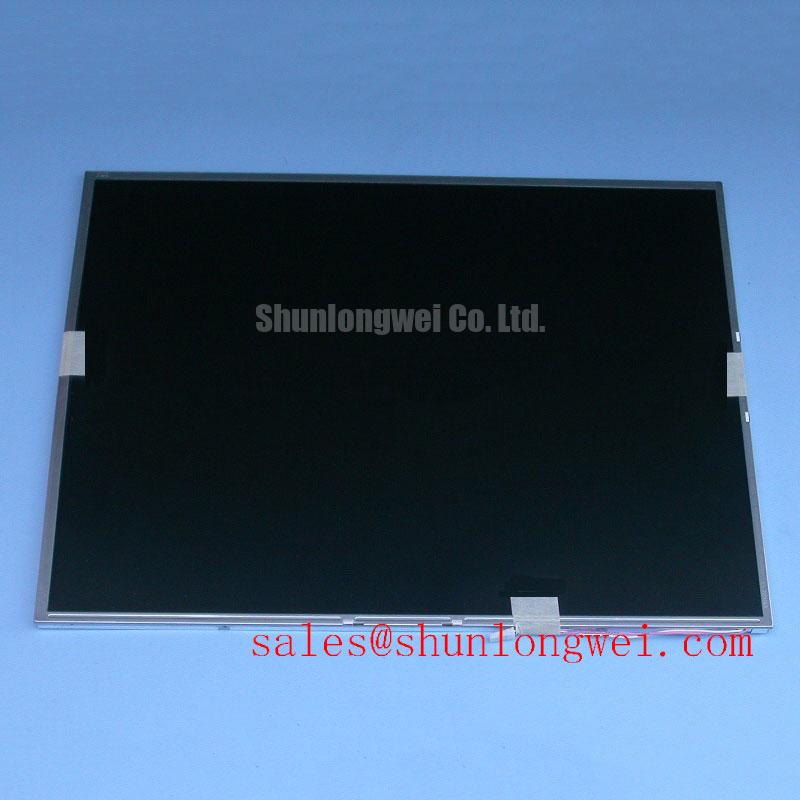

Brand AUO
Model B150XG02 V5
Diagonal Size 15.0 inch
Type a-Si TFT-LCD, LCM
Pixel Format 1024(RGB)×768 [XGA] 85PPI
Configuration RGB Vertical Stripe
Active Area 304.128(H)×228.096(V) mm
Outline Dim 317.3(H)×242(V) ×6.5(D) mm
Bezel Area 307.5(H)×231.5(V) mm
Treatment Antiglare (Haze 25%), Hard coating (3H), Reflection 4.3% (Typ.)
Luminance 160 cd/m² (Typ.)
Contrast Ratio 300:1 (Typ.) (TM)
View Direction 6 o'clock
Response Time 16/9 (Typ.)(Tr/Td)
Viewing Angle 42/42/20/45 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode TN, Normally White, Transmissive
Support Color 262K 44% NTSC
Light Source CCFL [1 pcs] , 10K hours , W/O Driver
Form Style Wedge (PCBA Bent, T≥5.2mm)
Designed For Laptop
Frame Rate 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Touch Panel Without
Interface Type LVDS (1 ch, 6-bit) , 30 pins Connector
Power Supply 3.3V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
