Content last revised on November 8, 2024
Brand CPT

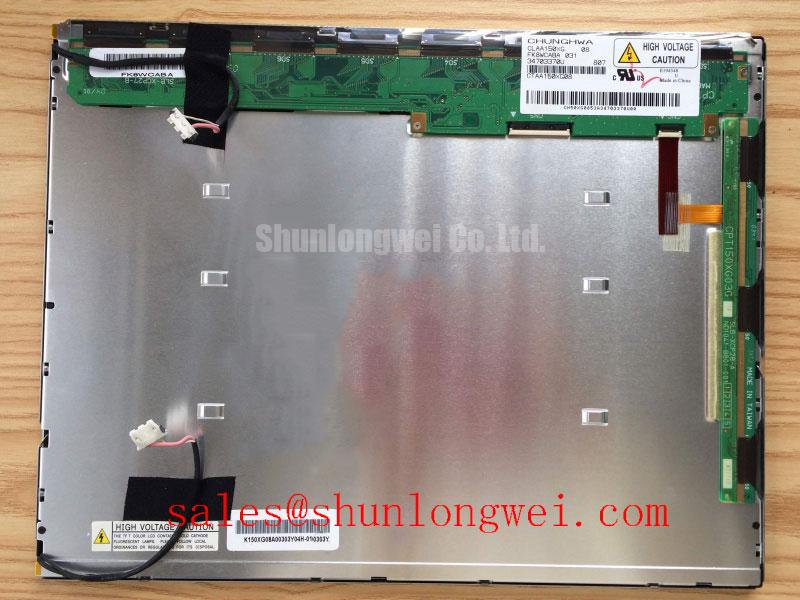

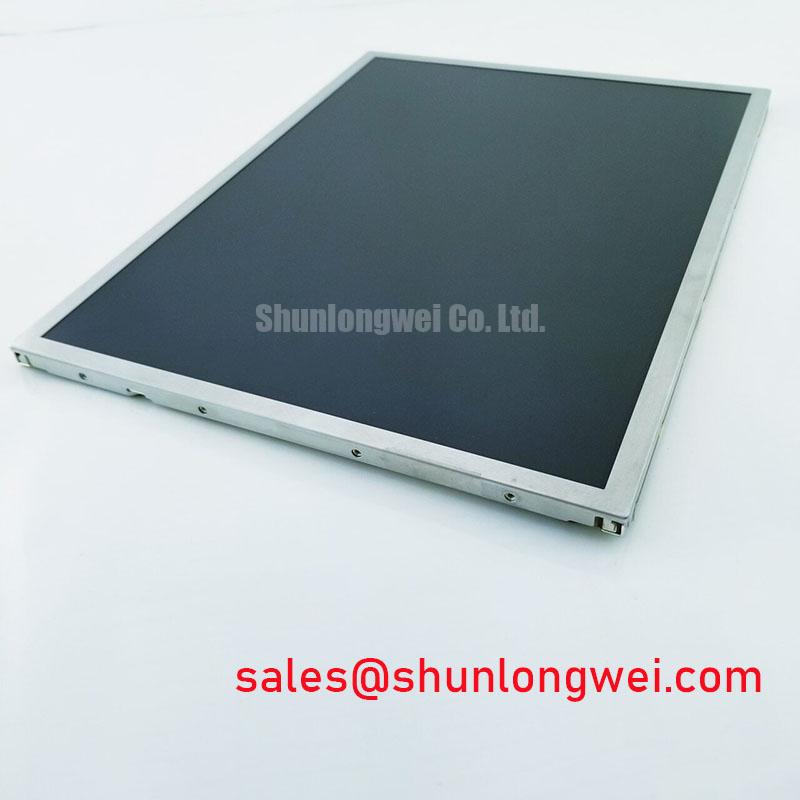

Model CLAA150XG04
Diagonal Size 15.0 inch
Type a-Si TFT-LCD, LCM
Pixel Format 1024(RGB)×768 [XGA] 85PPI
Configuration RGB Vertical Stripe
Active Area 304.128(H)×228.096(V) mm
Outline Dim. 326(H)×252(V) ×11.5(D) mm
Bezel Area 307.8(H)×231.8(V) mm
Treatment Antiglare
Luminance 250 cd/m² (Typ.)
Contrast Ratio 400:1 (Typ.) (TM)
View Direction 6 o'clock
Response Time 13/27 (Typ.)(Tr/Td)
Viewing Angle 60/60/45/55 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode TN, Normally White, Transmissive
Support Color 16.7M 50% NTSC
Light Source CCFL [2 pcs] , 25K hours , W/O Driver
Weight 1.10Kgs
Designed For Desktop Monitor
Frame Rate 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Touch Panel Without
Interface Type CMOS (2 ch, 8-bit) , 100 pins Connector
Power Supply 3.3/9.2/18.0V (Typ.)(VDD/VDDA/VDDG)
Environment Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
