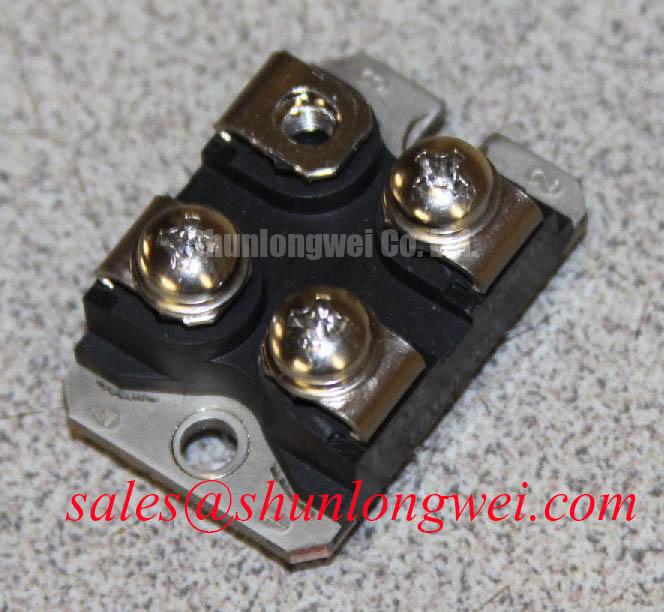

FB180SA10 IR 100V 180A SOT-227 Power MOSFET Module

Content last revised on April 14, 2026

FB180SA10 HEXFET Power MOSFET: Resolving Thermal Constraints in 100V High-Current Designs

How do you sustain 180A of continuous drain current without compromising the thermal integrity of your low-voltage power stage? The IR FB180SA10 (originally developed by International Rectifier), an industrial-grade HEXFET® Power MOSFET, is engineered to solve exactly this constraint. Housed in an isolated SOT-227 chassis-mount package, this module delivers an unparalleled combination of 100V blocking capability, 180A continuous current capacity, and a remarkably low junction-to-case thermal resistance of 0.26°C/W. By eliminating complex insulation hardware during heatsink mounting, it radically simplifies high-power thermal design. Why use the FB180SA10's SOT-227 package? It provides 2.5kV isolation and optimal heat transfer for 180A loads. For low-voltage traction or high-density SMPS prioritizing thermal margin, this 100V module is the optimal choice.

Frequently Asked Questions

Rapid Troubleshooting and Design Queries

• Why is the isolated SOT-227 package critical for the FB180SA10's 480W dissipation rating? The SOT-227 provides a 2.5kV AC-RMS isolated baseplate. This allows engineers to mount the device directly to a grounded heatsink without external thermal pads, maximizing heat transfer and enabling the 480W limit.
• How does the 0.0065Ω Rds(on) impact thermal management in continuous duty? This ultra-low on-resistance minimizes static conduction losses when pushing 180A, substantially reducing the necessary cooling payload and improving total system efficiency.
• What is the significance of the 5.7 V/ns dynamic dv/dt rating? It ensures the MOSFET's intrinsic body diode can withstand rapid voltage transitions without parasitic turn-on, an essential trait for high-frequency switching environments.
• Is the FB180SA10 fully avalanche rated for inductive load switching? Yes, the module features a single-pulse avalanche energy (EAS) rating of 700mJ, providing robust hardware-level protection against unsuppressed voltage spikes.
• Can this module be easily paralleled for applications exceeding 180A? The inherent positive temperature coefficient of the Rds(on) supports natural current sharing, simplifying parallel configurations in high-demand architectures.

Key Parameter Overview

Decoding the Specs for Enhanced Thermal Reliability

Evaluating this module requires looking beyond the headline current to understand how it behaves under severe thermal load.

Download the IR FB180SA10 datasheet for detailed specifications and performance curves.

Technical Deep Dive

A Closer Look at SOT-227 Architecture and Avalanche Ruggedness

The engineering superiority of the IR FB180SA10 lies in its intersection of Fifth Generation HEXFET silicon and ruggedized mechanical packaging. When dealing with continuous currents approaching 180A, thermal bottlenecks at the chip-to-baseplate interface often dictate system failure rates. The SOT-227 design acts much like a thermal "expressway" while simultaneously maintaining a strict electrical "firewall." Because the semiconductor die is electrically isolated from the mounting base, designers can bolt the module directly to an earth-grounded chassis. This structural choice drives the junction-to-case thermal resistance down to an aggressive 0.26°C/W. How does the 0.0065Ω Rds(on) improve performance? It drastically cuts static conduction losses, increasing overall efficiency.

Furthermore, in environments laden with parasitic inductance, voltage overshoots are inevitable. To handle this, the silicon architecture is fully avalanche rated. You can think of the 700mJ EAS (Single Pulse Avalanche Energy) as a heavy-duty "shock absorber" for the circuit. Instead of suffering immediate dielectric breakdown during an inductive kickback, the silicon harmlessly dissipates the transient energy as heat. By establishing this highly efficient thermal conduction path, the module mitigates the risks of localized hot spots. For a broader context on minimizing such losses, engineers often reference industry standards on MOSFET thermal design as well as comprehensive resources on Understanding MOSFET Avalanche Energy.

Application Scenarios & Value

Achieving System-Level Benefits in High-Current DC Conversion

The IR FB180SA10 excels in topologies where low conduction losses and high physical ruggedness are mandatory. One prominent scenario involves motor controllers in low-voltage traction systems, such as industrial forklifts and automated guided vehicles (AGVs). Engineers frequently face the challenge of managing immense stall currents when these heavy DC motors begin rotating. Because the module can handle a pulsed drain current (Idm) of up to 720A, it comfortably rides through these motor-starting transients without triggering catastrophic thermal limits.

Another critical deployment is within the synchronous rectification stages of high-power SMPS and enterprise battery management systems (BMS). In these applications, the extremely low internal inductance of the SOT-227 package—combined with low drain-to-case capacitance—ensures clean switching waveforms with minimal ringing. While this model is tailored for 100V systems, designs interfacing with higher industrial grid voltages might evaluate alternatives; for 600V infrastructure, the related 2MBI200VA-060 offers a proportional voltage baseline, whereas extreme megawatt-scale drives often rely on heavy-duty architectures like the 1MBI400N-120.

Ultimately, selecting this component is less about just meeting a current requirement and more about securing long-term operational stability. By offloading thermal stress through the optimized SOT-227 interface and relying on its documented avalanche ruggedness, power engineers can deploy validation-ready designs that withstand the physical and electrical abuses of continuous heavy-industry operation.
