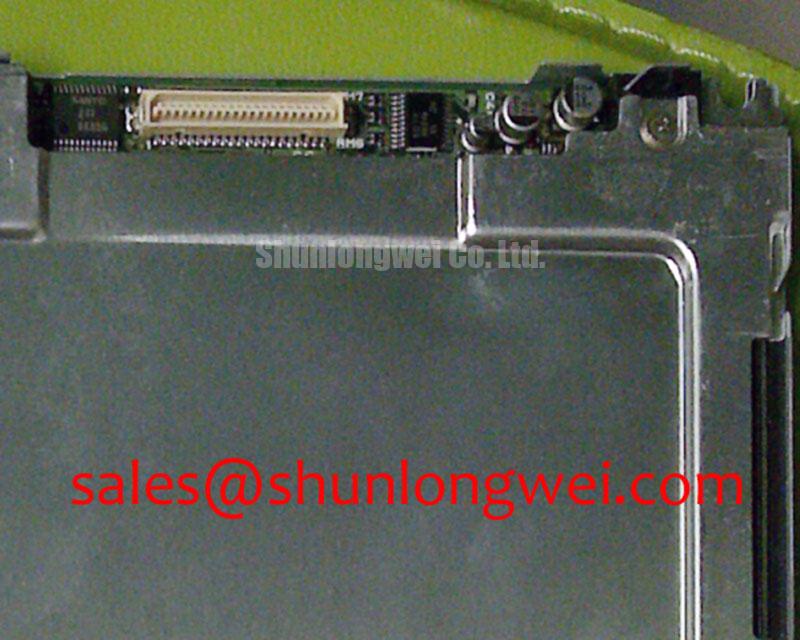

Tianma LMG9980ZWCC-01 | High-Contrast FSTN Display for Mission-Critical Interfaces
The Tianma LMG9980ZWCC-01 is an industrial-grade 5.2-inch FSTN (Film-compensated Super-twisted Nematic) monochrome liquid crystal display, engineered for applications where data clarity, reliability, and performance under demanding conditions are non-negotiable. This display is a workhorse component designed to deliver exceptional readability and a long operational lifespan, making it an ideal choice for a new generation of industrial and medical equipment.
Core Features at a Glance
- Superior Readability: Leverages FSTN technology to deliver a sharp, high-contrast black-and-white display (transmissive, negative mode) for crisp text and graphics.
- Quarter VGA Resolution: The 320 x 240 pixel matrix provides ample detail for GUIs, waveform displays, and complex data readouts.
- Industrial-Grade Durability: Built to operate reliably across a wide temperature range, ensuring stable performance on factory floors and in field instruments.
- Integrated Backlight: Features a long-life Cold Cathode Fluorescent Lamp (CCFL) backlight, providing bright and even illumination for consistent visibility.
Technical Deep-Dive: The Engineering Behind the Performance
While full-color displays dominate the consumer market, engineers in the industrial and medical fields understand that for many applications, monochrome clarity is a strategic advantage. The LMG9980ZWCC-01 is purpose-built around this principle, focusing on two key areas of engineering excellence.
Uncompromising Clarity with FSTN Technology
The core of the LMG9980ZWCC-01 is its FSTN display technology. Unlike standard STN displays, FSTN incorporates a retardation film layer between the STN glass and the rear polarizer. This film effectively cancels out color dispersion, eliminating the yellowish-green or bluish background common in older monochrome technologies. The result is a true black-and-white display with a very high Contrast Ratio. For an operator monitoring a CNC machine or a healthcare professional reading diagnostic data, this translates to unambiguous information, reduced eye strain, and faster interpretation of critical parameters.
Built for the Realities of Industrial Environments
Commercial-grade displays are not designed to withstand the thermal cycling and mechanical stresses of industrial settings. The LMG9980ZWCC-01 is constructed by Tianma to operate reliably from 0°C to 50°C, making it suitable for integration into equipment destined for environments without consistent climate control. This operational robustness ensures that the human-machine interface remains the most reliable part of the system, from a cool morning startup to peak afternoon operating temperatures. This focus on durability is essential for building equipment that minimizes downtime and service calls.
Key Specifications: LMG9980ZWCC-01
For detailed electrical and mechanical specifications, you can review the product datasheet. Download the LMG9980ZWCC-01 Datasheet for comprehensive information.
| Parameter | Specification |
|---|---|
| Display Technology | FSTN (Film-compensated Super-twisted Nematic) LCD |
| Screen Size (Diagonal) | 5.2 inches |
| Resolution | 320 x 240 pixels (QVGA) |
| Display Mode | Transmissive, Negative |
| Backlight | 1x CCFL with inverter |
| Active Area | 105.58(W) x 79.18(H) mm |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
Application Spotlight: Where the LMG9980ZWCC-01 Excels
The specific feature set of this display makes it a premier choice for several demanding applications:
- Industrial Control Panels: In environments with variable lighting and the need for at-a-glance information, the high-contrast display ensures machine parameters, alarms, and status messages are always legible.
- Test & Measurement Equipment: For oscilloscopes, spectrum analyzers, and network testers, presenting waveforms and measurement data in a crisp, artifact-free monochrome format is often superior to color for precision analysis.
- Medical Devices: Ideal for patient monitors, infusion pumps, and ventilators where critical vital signs and settings must be displayed without any ambiguity.
For designers of modern industrial HMI systems, selecting a display like the LMG9980ZWCC-01 is a deliberate choice for reliability and clarity over unnecessary complexity. If your application demands a robust, easy-to-read interface that prioritizes function over frills, this FSTN display is an exceptional candidate. To discuss your specific design requirements or explore our broader portfolio of industrial LCD displays, please contact our technical team for expert consultation.
