Content last revised on December 25, 2024
Panel Brand : Sharp

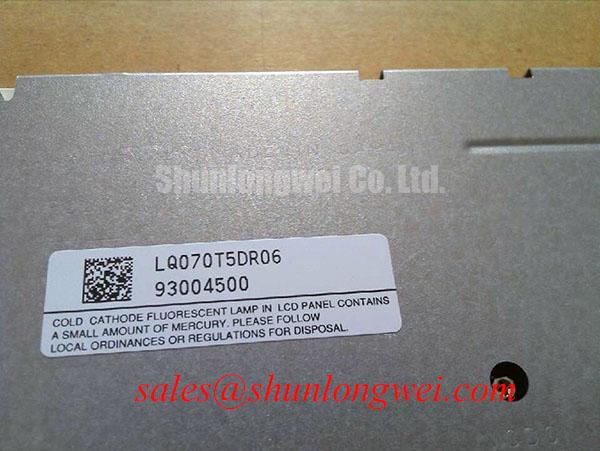

Panel Model :LQ070T5DR06
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 7.0 inch
Resolution : 480(RGB)×240 , WQVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 154.08×87 mm
Outline : 170.1×103.4 mm
Surface : Antiglare, Antireflection
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 100:1 (Min.)
Display Colors : 262K (6-bit)
Response Time : 30/50 (Typ.)(Tr/Td)
Viewing Angle : 65/65/40/65 (Typ.)(CR≥5) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 2 pcs CCFL
Signal Interface : Parallel RGB (1 ch, 6-bit)
Input Voltage : 5/10/-10V (Typ.)(VSH/VGH/VGL)
