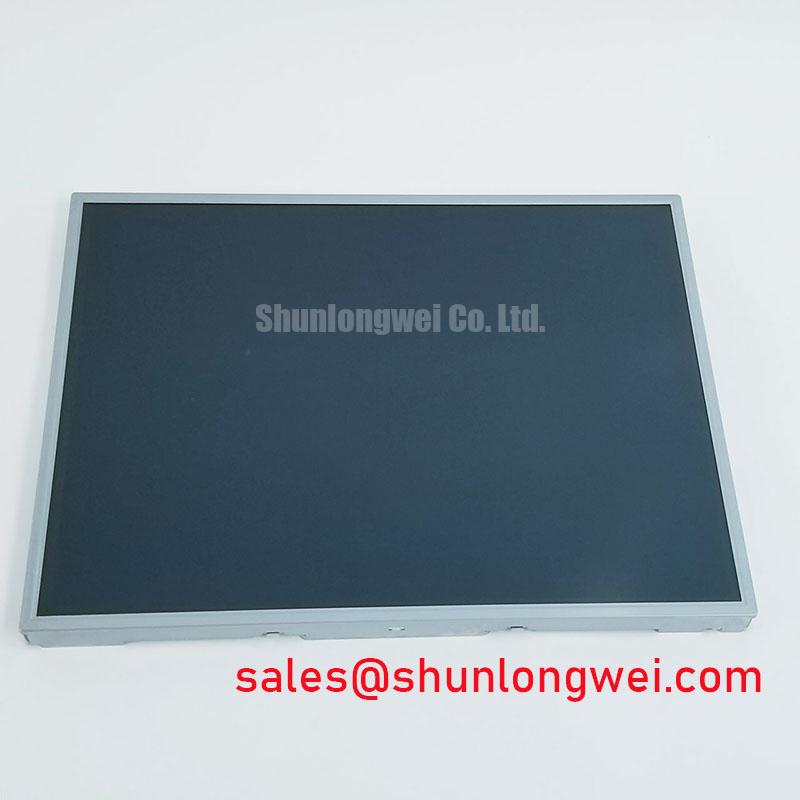

NEC NL160120BC27-09 LCD Display

Manufacturer NEC

Model Name NL160120BC27-09

Screen Size 21.3 inch

Screen Type LCM,   a-Si TFT-LCD

Pixel Number 1600(RGB)×1200   (UXGA)  94PPI

Arrangement RGB Vertical Stripe

Active Area(mm) 432 × 324 (H×V)

Outline(mm) 457 × 350 × 25.5 (H×V×D)

Bezel Area(mm) 438.2 × 330.0 (H×V)

Treatment Antiglare, Hard coating (2H)

Luminance 250 cd/m² (Typ.)

Contrast Ratio 450 : 1 (Typ.) (TM)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down

Response 9/11 (Typ.)(Tr/Td) ms

Good View at Symmetry

Work Mode SA-SFT, Normally Black, Transmissive

Color Depth 16.7M   72% NTSC

Backlight 6 pcs CCFL , No Driver

Mass 3.75/4.0Kgs (Typ./Max.)

Used for Desktop Monitor

Refresh Rate 60Hz

120Hz (60HZ Input) : Embedded MEMC Circuit

120Hz+120Hz : 120Hz Panel+120Hz Backlight

240Hz (60HZ Input) : Embedded MEMC Circuit

Touchscreen Without

Signal Type LVDS (2 ch, 8-bit) , Connector 40 pins

Voltage Supply 12.0V (Typ.)

Max. Ratings Storage Temp.: -20 ~ 60 °C    Operating Temp.: 0 ~ 55 °C
