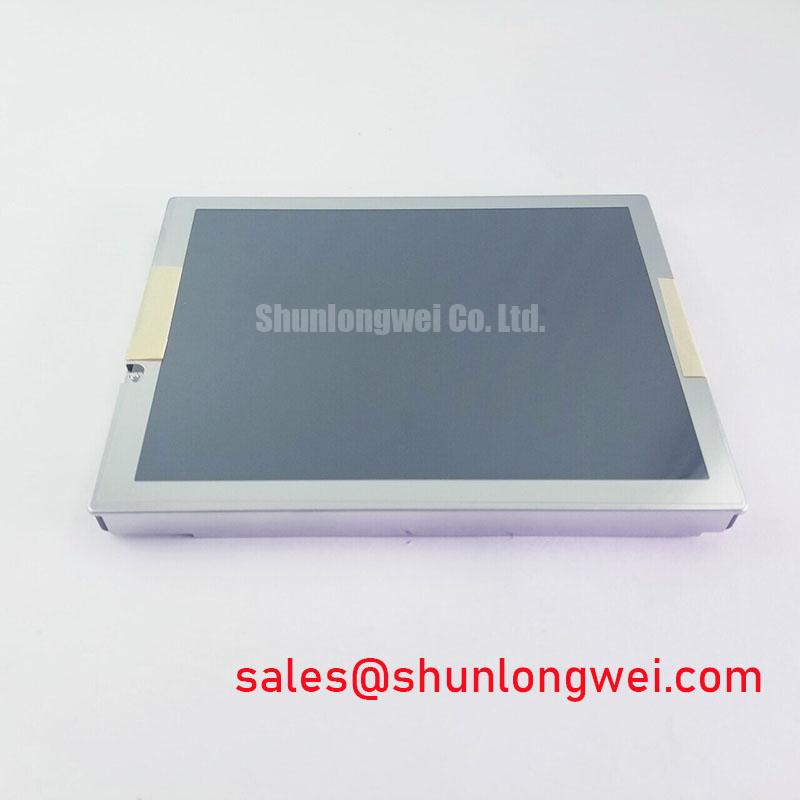

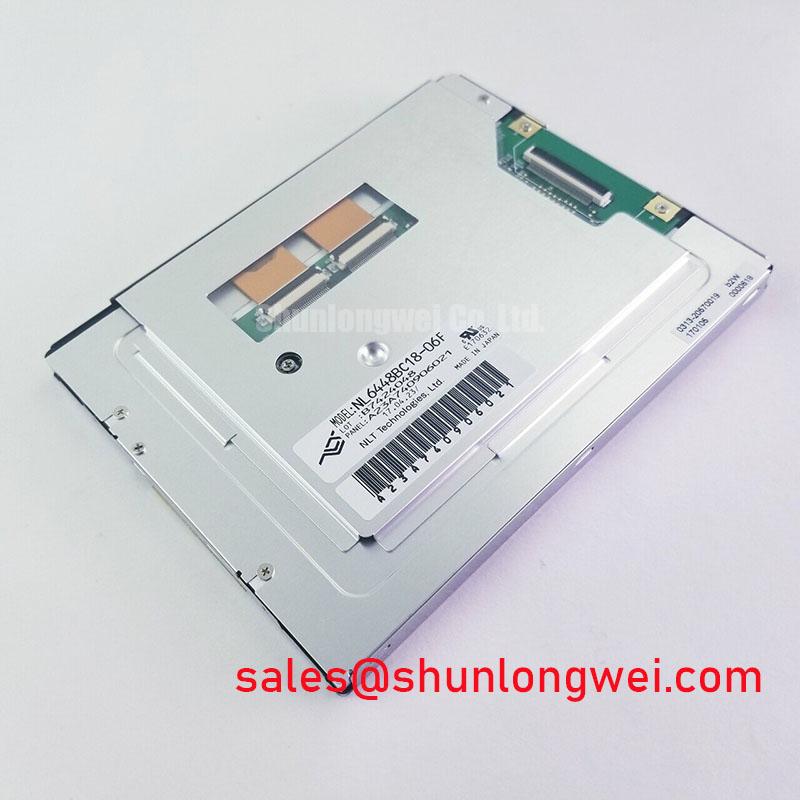

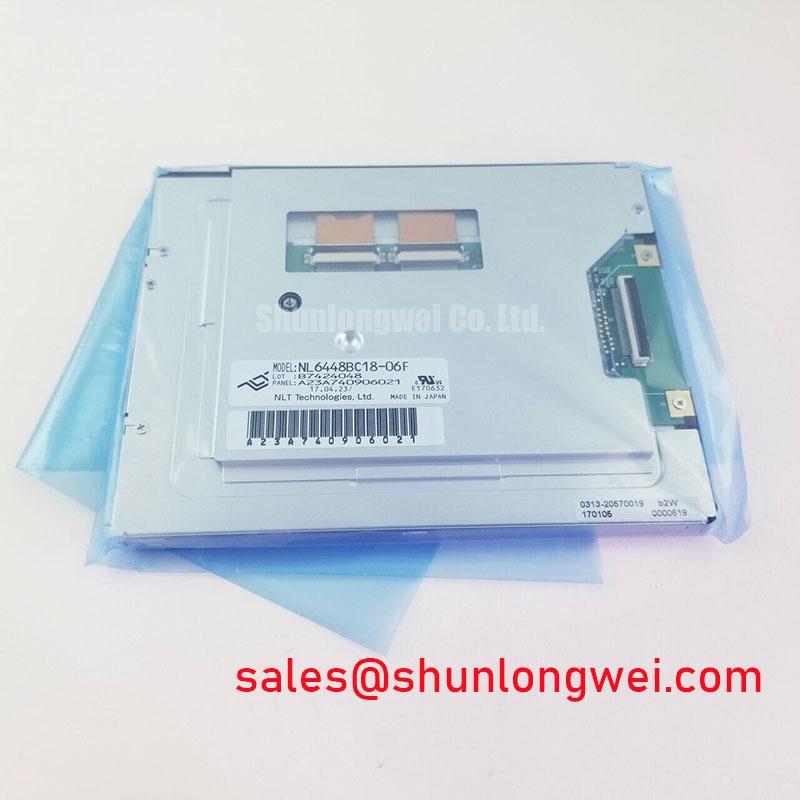

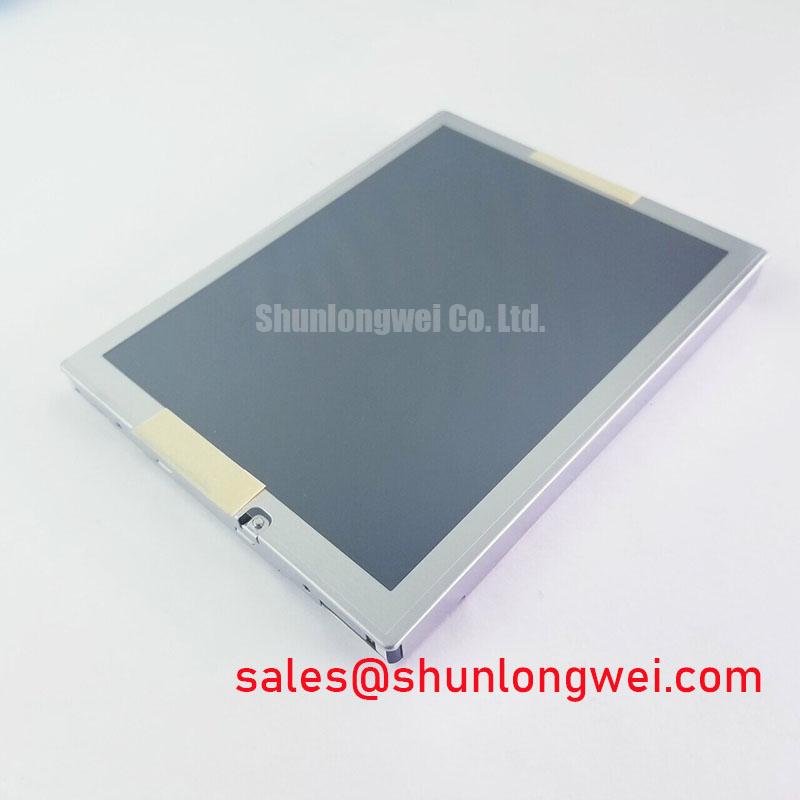

NL6448BC18-06F: Robust 5.7" VGA LCD for Industrial Use
A Technical Overview for Demanding Environments
While standard displays falter under environmental stress, the NEC NL6448BC18-06F is engineered for consistent operational integrity in challenging industrial settings. This 5.7-inch TFT-LCD module provides a dependable human-machine interface (HMI) solution where mechanical durability and stable performance are critical design requirements. With key specifications of 5.7" VGA (640x480) | -30°C to 80°C Operating Temp. | 780 cd/m² Brightness, it delivers extended operational life and clear readability. This design directly addresses how to achieve reliable display performance in harsh conditions by integrating a wide temperature range and durable construction from the component level up.
Frequently Asked Questions (FAQ)
Q: Can the NL6448BC18-06F be used in outdoor applications?
A: With a high brightness of 780 cd/m² and an extremely wide operating temperature range of -30°C to 80°C, this module is well-suited for deployment in sheltered or semi-outdoor environments. Its anti-glare surface treatment further improves viewability in high ambient light, though direct, prolonged sunlight exposure may require additional system-level considerations like optical bonding, a process detailed in resources like the definitive engineer's guide to sunlight-readable HMIs.
Q: What is the significance of the 6-bit Parallel RGB interface for this model?
A: The Parallel RGB (1 ch, 6-bit) interface is a standard, straightforward method for connecting to a wide array of embedded controllers and single-board computers. This simplifies system integration, allowing engineers to drive the display directly without requiring complex intermediary protocols like LVDS, which can reduce both development time and bill-of-materials (BOM) cost for many industrial control systems.
Operational Arenas for the NL6448BC18-06F
The engineering provisions of the NEC NL6448BC18-06F make it a prime candidate for applications where consumer-grade displays would exhibit premature failure. Its resilience is valuable across several sectors:
- Industrial Automation: As HMI panels on CNC machinery, process control units, and factory floor terminals, where temperature fluctuations and mechanical vibration are common. The specified 2.0G (19.6 m/s²) vibration resistance ensures data integrity is maintained.
- Transportation Systems: In-cab displays for construction vehicles, agricultural equipment, and railway systems that operate in unconditioned environments.
- Medical Devices: Portable diagnostic equipment and patient monitoring systems that require consistent, clear readability and can be subjected to movement and varied operating climates.
- Test and Measurement Equipment: Field-use instruments that need a dependable display that functions reliably from cold-start conditions to high-heat environments.
For HMIs in unheated or uncooled locations subject to moderate vibration, this display's -30 to 80°C operating temperature rating offers a superior reliability margin over typical commercial displays.
Data-Informed Decision Support
To support your design evaluation, consider how the NL6448BC18-06F compares to a generic commercial-off-the-shelf (COTS) display. While a COTS panel might offer a similar resolution, it typically falls short in key industrial metrics. The wide operating temperature, high brightness, and robust mechanical design of this module present a lower total cost of ownership, a concept explored further in our analysis of industrial versus consumer displays.
For systems that may require a different set of specifications, such as a higher resolution or different screen size, the NL6448BC33-71D offers alternative features for evaluation within a similar class of industrial displays.
Core Specifications for System Evaluation
The following table outlines the key performance indicators for the NL6448BC18-06F, based on the official manufacturer documentation. For complete details, including timing diagrams and mechanical drawings, please refer to the product datasheet.
| Feature Group | Parameter | Specification |
|---|---|---|
| Display Characteristics | Panel Size | 5.7 inches |
| Resolution | 640(RGB) x 480 [VGA] | |
| Display Technology | a-Si TFT, Normally White, Transmissive | |
| Optical Performance | Brightness | 780 cd/m² (Typ.) |
| Contrast Ratio | 850:1 (Typ.) | |
| Viewing Angle | 80/80/80/80 (U/D/L/R) (CR≥10) | |
| Surface | Hard coating (3H) | |
| Environmental & Reliability | Operating Temperature | -30 ~ 80 °C |
| Storage Temperature | -40 ~ 80 °C | |
| Backlight Lifetime | 50,000 hours (Min.) | |
| Vibration Resistance | 2.0G (19.6 m/s²) | |
| Interface & Electrical | Signal Interface | Parallel RGB (1 ch, 6-bit), 40 pins |
| Input Voltage (VCC) | 3.3V (Typ.) |
Field-Proven Resilience
Consider a portable diagnostic device used by field technicians. It's stored in a vehicle overnight where temperatures can drop below freezing, then used in an engine compartment approaching 80°C. The NL6448BC18-06F's operating temperature range of -30°C to 80°C is not just a specification; it is the enabler of functionality in this exact scenario. The 50,000-hour backlight lifetime translates to over 5.7 years of continuous 24/7 operation, minimizing the need for costly maintenance and maximizing device uptime in critical applications. This long-term stability is a cornerstone of its design.
Strategic Value in Modern Industrial Systems
In the context of Industry 4.0 and the increasing demand for automation, device uptime is paramount. Component failures, especially in HMIs, can halt production and lead to significant financial loss. The robust construction of the NEC NL6448BC18-06F, particularly its wide temperature tolerance and vibration resistance, directly contributes to a more resilient and reliable end-product. What defines its environmental resilience? A wide operating temperature range of -30°C to 80°C. This focus on durability helps OEMs build systems with longer service intervals and a lower lifecycle cost, providing a distinct competitive advantage.
Engineering for Longevity and Clarity
The performance of the NL6448BC18-06F is a result of specific technological choices. The foundation is an amorphous silicon thin-film transistor (TFT-LCD) panel, a mature and reliable technology for industrial applications. The impressive brightness and long life are achieved through a White LED (WLED) backlight system. Unlike older CCFL backlights, WLEDs offer better durability, lower power consumption, and do not require a high-voltage inverter. Is this display readable in bright light? Yes, its anti-glare surface enhances visibility in various lighting conditions. This combination of a stable LCD technology with a modern, long-life backlight is what underpins the module's value proposition for long-term industrial deployment.
Design and Decision Support
Evaluating the NL6448BC18-06F for your next project requires a thorough review of its technical capabilities. We encourage engineers and procurement specialists to download the official datasheet to analyze its full specifications, including interface timing and mechanical dimensions. For further technical inquiries or to discuss how this module aligns with your specific application requirements, our team is available to provide data-backed information to support your decision-making process.
