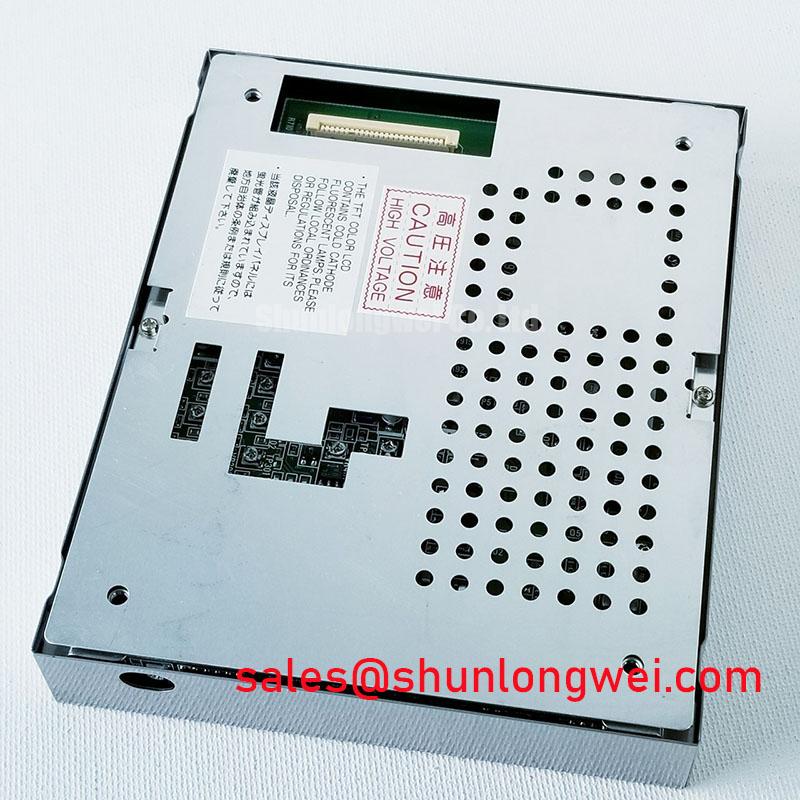

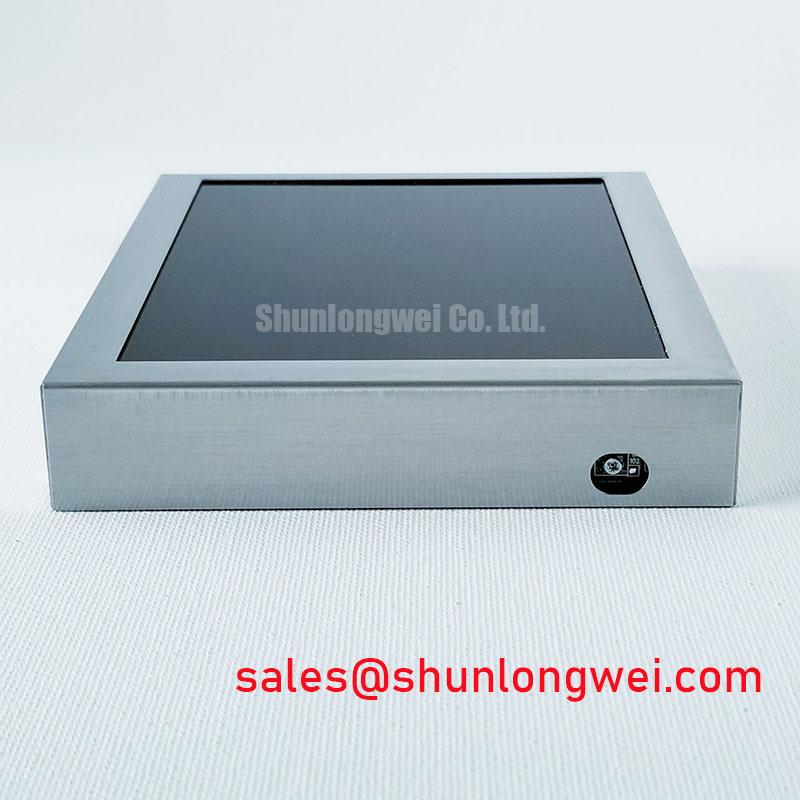

NL3224AC35-20: Engineering Analysis of a 5.5" Industrial QVGA LCD
A Robust Display Solution for Demanding Thermal Environments and Long-Lifecycle Systems
The NL3224AC35-20 is a rugged 5.5-inch QVGA color TFT-LCD engineered for long-term reliability in demanding industrial and medical applications. It delivers proven performance built on a foundation of thermal resilience and serviceability. Key specifications include: 320x240 Resolution | 400 cd/m² Brightness | -20°C to +70°C Operating Temperature. The design provides two core engineering benefits: superior thermal resilience for deployment in uncontrolled environments and a field-serviceable design that extends operational life. This module directly addresses the need for a compact Human Machine Interface (HMI) display that can operate flawlessly through significant temperature fluctuations, from cold starts to high-heat conditions. With its wide operating temperature range and replaceable backlight, this display is the optimal choice for industrial HMIs prioritizing uptime and serviceability.
Key Parameter Overview
Decoding the Specifications for High-Reliability Deployments
The technical specifications of the NL3224AC35-20 underscore its suitability for embedded systems where performance continuity is non-negotiable. The parameters are optimized for clarity, integration, and durability in challenging industrial settings.
| Parameter | Specification | Engineering Value |
|---|---|---|
| Display Technology | 5.5-inch Amorphous Silicon (a-Si) TFT | Provides a stable, proven platform for industrial user interfaces. |
| Resolution | 320 x 240 (QVGA) | Delivers clear and effective visualization for control data, status indicators, and simple GUIs. |
| Luminance | 400 cd/m² (Typical) | Ensures excellent readability in typical indoor industrial and factory floor lighting conditions. |
| Contrast Ratio | 350:1 (Typical) | Offers good differentiation between colors and shades for unambiguous data interpretation. |
| Operating Temperature Range | -20°C to +70°C | Critical for reliability in non-climate-controlled enclosures or equipment operating in harsh thermal cycles. |
| Storage Temperature Range | -30°C to +80°C | Enhances resilience during shipping, storage, and periods of non-operation in extreme conditions. |
| Backlight System | 1 CCFL, Replaceable | A key feature for maintainability, allowing for field replacement to extend the module's operational lifespan. |
| Interface | 18-bit Parallel RGB (6-bit per color) | A straightforward interface for direct connection to a wide range of microcontrollers and display drivers. |
| Touch Panel | Integrated Analog Resistive | Simplifies system integration by providing a pre-assembled HMI input solution. |
Download the NL3224AC35-20 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Industrial Control and Instrumentation
The NL3224AC35-20 is engineered for applications where reliability trumps cutting-edge resolution. Its robust design provides tangible value in environments where consumer-grade displays would falter. Consider the challenge of designing a control panel for a food processing line, which may be installed near ovens and freezers. The display must provide a consistent, readable interface from a cold start at -20°C to continuous operation at +70°C. The NL3224AC35-20's wide thermal range ensures operational continuity without requiring costly ancillary heating or cooling systems within the device's NEMA enclosure, directly reducing system complexity and potential points of failure.
Its application is ideal in legacy and new designs for:
- Industrial Automation: Operator panels for CNC machines, PLCs, and robotic controllers.
- Medical Instrumentation: Patient monitoring systems and diagnostic equipment where uptime and long service life are critical.
- Test and Measurement: Portable and benchtop equipment used in field service or on factory floors.
- Process Control Systems: HMIs for monitoring and controlling manufacturing and chemical processes.
The focus on serviceability makes it a strategic choice for equipment with an expected operational life of over a decade. For applications requiring a more compact footprint, the related NL2432HC22-25B offers similar QVGA resolution in a 3.5-inch form factor.
Frequently Asked Questions
Engineering Questions on Performance and Integration
How does the -20°C to +70°C operating temperature range impact system design?This wide range significantly simplifies thermal management. It allows the display to be integrated into sealed, fanless enclosures in environments with fluctuating ambient temperatures, reducing the need for heaters or cooling fans. This lowers overall system power consumption, cost, and audible noise while increasing the reliability of the end product.
What is the primary advantage of the replaceable CCFL backlight in the NL3224AC35-20?The key advantage is extended product life and reduced Total Cost of Ownership (TCO). Backlights have a finite lifespan and are often the first component to fail or degrade. A replaceable unit allows for simple field servicing, restoring the display to its original brightness without requiring a complete and costly replacement of the entire HMI module.
Is the integrated resistive touch panel suitable for industrial environments?Yes. Resistive touch technology is highly reliable in industrial settings because it can be activated by a gloved hand, a stylus, or any other object. It is also highly resistant to EMI/RFI and surface contaminants like dust and moisture, ensuring dependable input registration in challenging conditions.
What type of controller is required for the 18-bit parallel RGB interface?This display requires a display controller or a microprocessor with an integrated TFT driver that can support a parallel RGB interface. The 18-bit (RGB 6-6-6) data format is a standard supported by a vast ecosystem of graphics controllers, making software and hardware integration a straightforward process for embedded system designers.
Technical Deep Dive
A Closer Look at Design Choices for Long-Term Operational Stability
The specifications of the NL3224AC35-20 are a result of deliberate engineering choices aimed at maximizing uptime and operational life. The wide temperature range is not merely a feature of the liquid crystal material itself; it reflects the careful selection of all constituent components, including polarizers, driver ICs, and adhesives, that are validated to withstand repeated thermal cycling without delamination or performance degradation. This holistic approach is fundamental to mitigating field failures in systems deployed outdoors or in harsh factory settings.
Furthermore, the inclusion of a replaceable CCFL backlight is a strategic decision rooted in a philosophy of serviceability. While modern LED backlights offer long lifespans, the replaceable CCFL design acknowledges that for mission-critical equipment intended to operate for 10-15 years, component degradation is inevitable. What is the benefit of a replaceable backlight? It transforms the most common display failure mode—backlight dimming—from a catastrophic, unit-ending event into a scheduled, low-cost maintenance task. This design choice is analogous to specifying serviceable tires for a heavy-duty vehicle; you don't replace the entire vehicle when the tread wears thin. This prioritizes asset longevity and makes the NEC NL3224AC35-20 a sound investment for long-lifecycle industrial products.
A Strategic Component for Reliable Systems
For engineering teams developing new systems or maintaining existing ones that require a compact, environmentally robust, and serviceable display, the NL3224AC35-20 presents a compelling technical case. Its design prioritizes the practical realities of industrial deployment—thermal stress, the need for clear readability, and long-term maintainability—over headline specifications. This focus makes it a dependable building block for creating user interfaces that are built to last.
