NL6448CC33-30: A Robust 10.4-inch VGA TFT-LCD for Demanding Industrial Environments
Engineered for Longevity and Clarity in Control Systems
A Deep Dive into its Industrial-Grade Design and Optical Performance

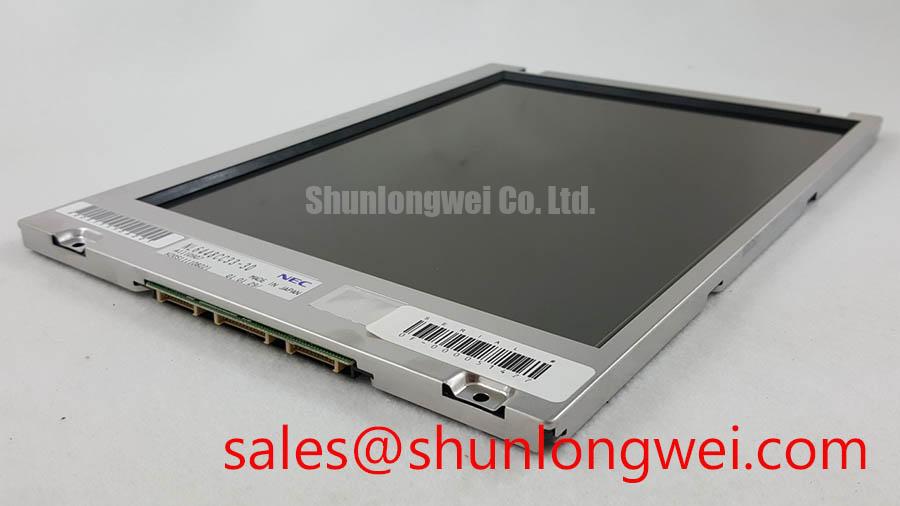

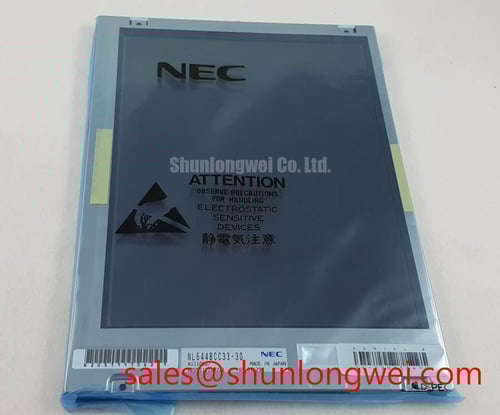

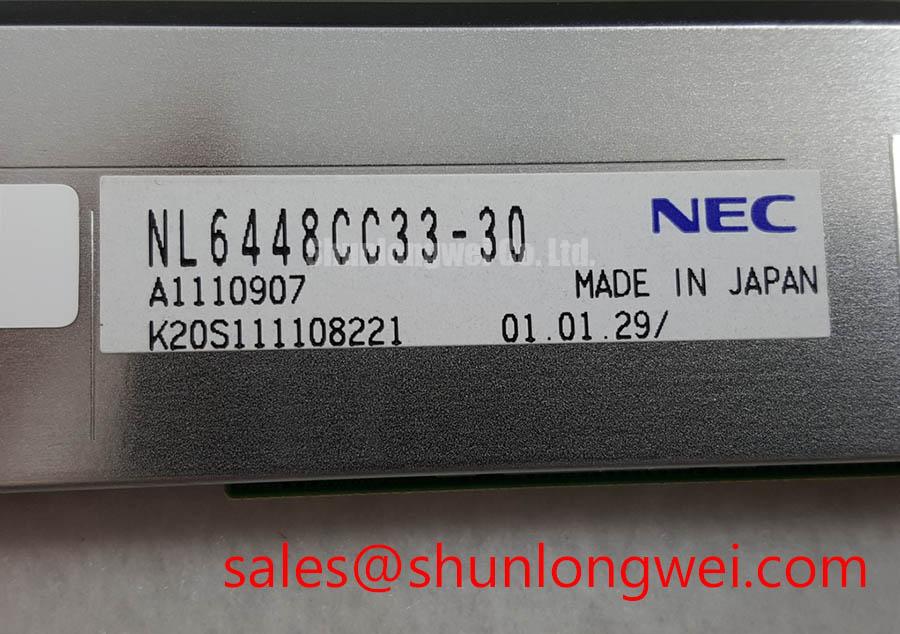

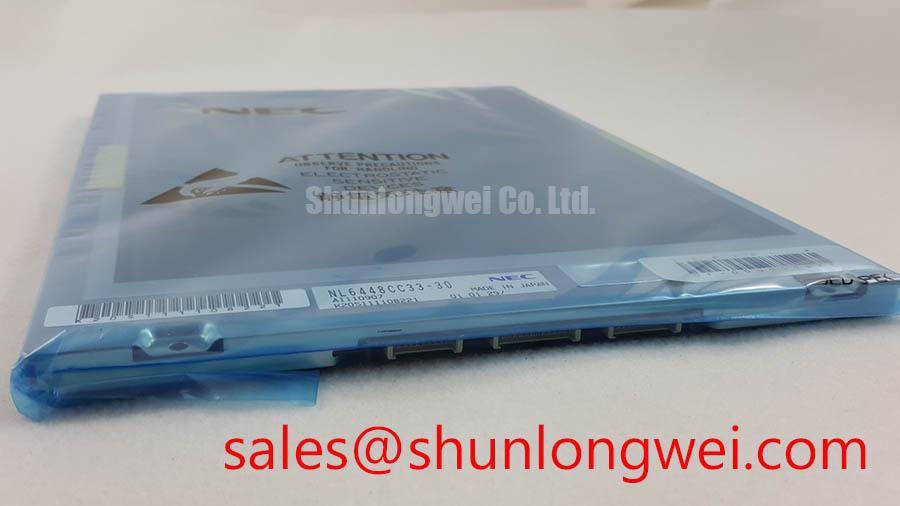

The NL6448CC33-30 is a 10.4-inch a-Si TFT-LCD module engineered by NEC, delivering robust, reliable VGA resolution performance for industrial applications. Its core value lies in its exceptional operational temperature range and durable construction, ensuring consistent readability in environments where consumer-grade displays would fail. With key specifications of 640x480 resolution, a 6-bit Parallel RGB interface, and an expansive operating temperature from -10°C to 70°C, this display is built for sustained industrial use. It provides a stable, long-term solution for process controllers and HMI systems, answering the critical engineering need for a display that withstands harsh conditions without compromising performance. For legacy industrial HMIs requiring a robust VGA display with consistent long-term performance, the NL6448CC33-30 is an ideal engineering choice.
Application Scenarios & Value
Delivering System-Level Reliability in Industrial Automation and Control
The NL6448CC33-30 is optimized for environments where operational uptime and data integrity are paramount. Its most significant engineering value is derived from its wide operating temperature range (-10°C to 70°C) and vibration resistance of 2.0G (19.6 m/s²). Consider a CNC machine controller on a factory floor, where ambient temperatures can fluctuate significantly and persistent mechanical vibration is the norm. In this scenario, a standard display could suffer from image artifacts, delayed response, or even premature failure. The robust thermal and mechanical design of the NL6448CC33-30 directly addresses this challenge, ensuring the operator has a clear, stable interface for critical machine inputs and monitoring, thereby enhancing both safety and productivity. The standard VGA resolution is perfectly suited for legacy control systems and industrial PCs that do not require high-definition output but demand maximum reliability. While this model provides a solid VGA foundation, for systems needing higher resolution in a similar form factor, the NL10276AC30-42D offers XGA resolution for more data-intensive applications.
Key Parameter Overview
Decoding the Specifications for Industrial Integration
The technical specifications of the NL6448CC33-30 are tailored for seamless integration into industrial equipment. The parameters below highlight its core capabilities, grouped by function for clear evaluation.
| Parameter | Specification | Engineering Significance |
|---|---|---|
| Optical Characteristics | ||
| Screen Size | 10.4 inches | Standard size for a wide range of industrial panels and enclosures. |
| Resolution | 640(RGB) x 480 (VGA) | Ensures compatibility with a vast installed base of industrial hardware and software. |
| Display Mode | TN, Normally White, Transmissive | Provides fast response times suitable for dynamic control interfaces. |
| Contrast Ratio | 150:1 (Typ.) | Offers clear differentiation between active and inactive pixels for straightforward data reading. |
| Color Depth | 262K (6-bit) | Sufficient color representation for typical industrial HMI graphics and status indicators. |
| Mechanical & Environmental | ||
| Outline Dimensions | 264.0(W) x 187.8(H) x 8.8(D) mm | A slim profile that facilitates integration into space-constrained designs. |
| Active Area | 211.2(W) x 158.4(H) mm | Provides a generous viewing area for the 4:3 aspect ratio. |
| Operating Temperature | -10°C to 70°C | A critical feature enabling deployment in non-climate-controlled factory floors, outdoor enclosures, or vehicle cabins. |
| Storage Temperature | -30°C to 85°C | Demonstrates high resilience to extreme conditions during transport and storage. |
| Vibration Resistance | 2.0G (19.6 m/s²) | Withstands mechanical stress typical in manufacturing, transportation, and heavy machinery applications. |
| Interface & Electrical | ||
| Signal Interface | Parallel RGB (1 ch, 6-bit) | A straightforward, widely supported interface that simplifies system integration and reduces development time. |
| Supply Voltage (VCC) | 3.3V / 5.0V (Typ.) | Flexible power supply options accommodate different system logic levels. |
| Power Consumption | 1.0W (Typ.) | Low power draw from the logic board simplifies thermal management within the HMI enclosure. |
Technical Deep Dive
The Engineering Behind its Environmental Resilience
The NL6448CC33-30's resilience is not accidental; it is a direct result of design choices focused on industrial reliability. The operating temperature range of -10°C to 70°C is a key differentiator from consumer-grade displays. This is achieved through the careful selection of liquid crystal fluid and other materials that maintain stable electro-optical properties across a wide thermal spectrum. Think of it like the oil in a car's engine; a standard oil thickens in the cold and thins in the heat, impairing performance. The specialized liquid crystal in this display is like an all-season synthetic oil, maintaining its viscosity and responsiveness whether the environment is near-freezing or exposed to significant heat soak from other machinery. This intrinsic stability prevents the sluggish pixel response or contrast degradation that plagues lesser displays in extreme conditions, a crucial factor for applications where visual clarity is tied directly to operational safety.
Frequently Asked Questions (FAQ)
What is the primary benefit of the Parallel RGB interface in an industrial context?
The Parallel RGB interface is a direct, low-latency connection that minimizes processing overhead. For industrial control systems, this means a more immediate and deterministic display response to user inputs or machine status changes, which is critical for real-time process monitoring and control. For a deeper understanding of display interfaces, explore this guide to TFT-LCD technology.
How does the 150:1 contrast ratio impact usability in a factory setting?
In a factory, ambient lighting can be inconsistent. A 150:1 contrast ratio ensures that text, numbers, and status indicators are clearly legible against their background, reducing the risk of operator error. It provides sufficient clarity for the distinct, often simple graphical elements found on an HMI, ensuring that critical alerts and data points are not missed.
To assess the suitability of the NL6448CC33-30 for your specific design constraints, it is recommended to review the full datasheet and consult with application engineers. This ensures that all system-level requirements, from mechanical fit to electrical integration, are thoroughly addressed for optimal performance and longevity.
