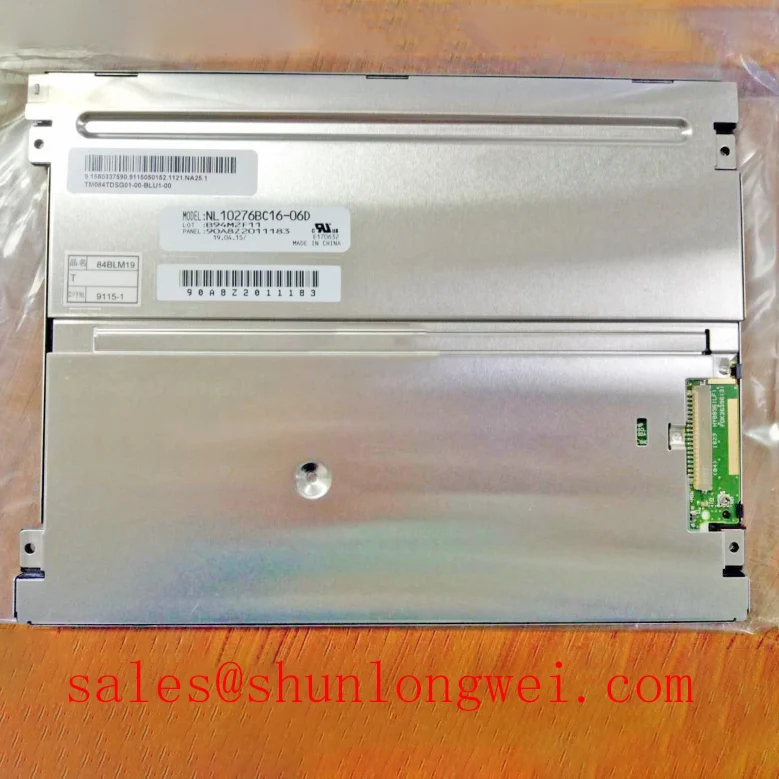

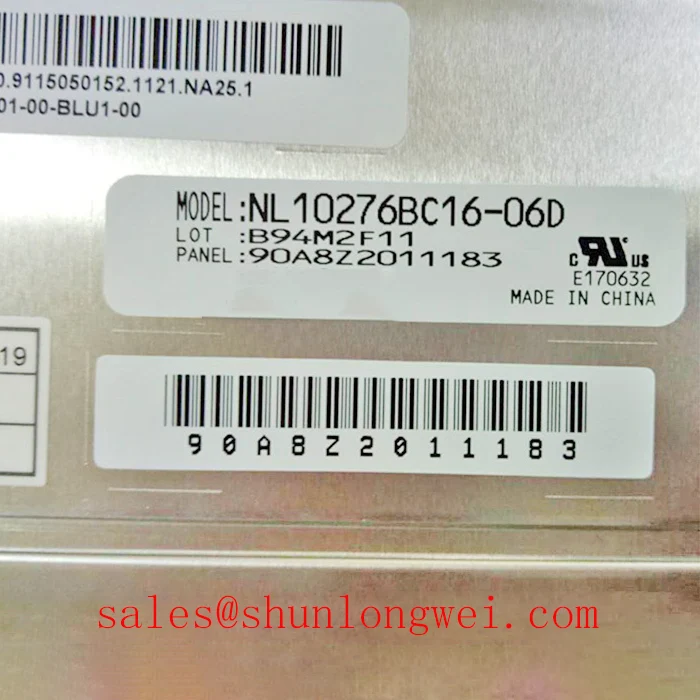

NL10276BC16-06D: 8.4-inch XGA TFT Display Engineered for Industrial-Grade Clarity and Reliability
Introduction: A Synthesis of Performance and Endurance
The NL10276BC16-06D is an 8.4-inch a-Si TFT-LCD module engineered for exceptional visual performance and long-term reliability in demanding industrial and medical environments. It delivers high-fidelity imaging through a combination of key specifications: 1024x768 XGA | 600 cd/m² | -20 to 70°C Operating Range. This display provides superior image stability and an extended operational lifespan. It addresses the critical need for consistent, clear visuals in environments where temperature fluctuation and off-axis readability are primary design challenges. For systems requiring robust, high-brightness displays in a compact 8.4-inch form factor, the NL10276BC16-06D offers a premier solution validated for industrial applications.
Key Parameter Overview
Decoding the Specs for Environmental Resilience and Visual Performance
The technical specifications of the NL10276BC16-06D are optimized for high-performance industrial applications where both visual quality and durability are non-negotiable. The combination of high brightness, a wide operating temperature, and advanced display technology ensures consistent performance.
| Feature | Specification | Engineering Significance |
|---|---|---|
| Display Technology | 8.4-inch UA-SFT (a-Si TFT-LCD) | UA-SFT (Ultra-Advanced Super Fine TFT) technology provides ultra-wide viewing angles, making it ideal for control panels and medical instruments where data must be readable from multiple perspectives without color shift. |
| Resolution | 1024(RGB)×768 (XGA) | Delivers crisp, detailed imagery and sharp text, essential for complex graphical user interfaces in industrial HMIs and diagnostic equipment. |
| Luminance | 600 cd/m² (Typ.) | Ensures excellent readability in high ambient light conditions, a critical requirement for factory floors or field service applications. |
| Contrast Ratio | 1000:1 (Typ.) | The high contrast ratio provides deep blacks and vibrant colors, improving image depth and reducing operator eye strain during long shifts. |
| Viewing Angle | 88/88/88/88 (U/D/L/R) (Typ.) | Symmetrical and extremely wide viewing angles ensure that the display is perfectly legible from nearly any direction, a key feature for collaborative or multi-personnel workstations. |
| Operating Temperature | -20 to 70°C | Allows for deployment in unconditioned environments, from cold storage facilities to outdoor kiosks, without requiring additional heating or cooling systems. |
| Interface | LVDS (1 ch, 6/8-bit) | The standard LVDS Interface simplifies system integration with a wide range of industrial motherboards and single-board computers, reducing design complexity. |
| Backlight Lifetime | 100,000 hours (Typ.) | This exceptionally long backlight life translates to over 11 years of continuous operation, significantly reducing total cost of ownership and maintenance requirements. |
Download the NL10276BC16-06D datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Industrial Automation and Medical Instrumentation
The NL10276BC16-06D is engineered to thrive where standard consumer displays fail. Its robust feature set delivers tangible value in specialized applications.
High-Fidelity Engineering Scenario: Human-Machine Interface (HMI) for CNC Machining Centers
An engineer designing an HMI for a CNC machine faces several challenges: the operator needs to view complex schematics and toolpath data from various standing positions, often in a workshop with fluctuating temperatures and bright, direct lighting. The NL10276BC16-06D directly solves these issues. Its 88/88/88/88 viewing angle, a hallmark of its UA-SFT technology, ensures the screen's color and contrast remain true, whether the operator is standing directly in front or off to the side. The 600-nit brightness cuts through ambient glare, and the -20 to 70°C operating range guarantees reliable startup and performance, even in a non-climate-controlled factory on a cold morning or hot afternoon.
This module is also highly suitable for:
- Medical Diagnostic Equipment: Where precise color reproduction (71% NTSC gamut) and wide viewing angles are critical for multiple clinicians to view patient data simultaneously and accurately.
- Marine and Avionics Displays: The combination of high brightness and rugged temperature tolerance makes it a strong candidate for bridge control systems and cockpit displays.
- Outdoor Kiosks and Ticketing Systems: Provides the necessary durability and sunlight readability for public-facing interactive systems.
For applications demanding a larger screen size with similar industrial-grade features, the NL10276AC30-42D provides a 15-inch alternative to consider within your design evaluation.
Frequently Asked Questions (FAQ)
What is the primary benefit of the UA-SFT technology in the NL10276BC16-06D?
UA-SFT (Ultra-Advanced Super Fine TFT) is a proprietary technology similar to IPS (In-Plane Switching), delivering superior color fidelity and image consistency across extremely wide viewing angles of 88 degrees in all directions. This eliminates the color shifting and contrast degradation common in standard TN panels when viewed off-axis.
How does the 100,000-hour backlight lifetime impact the total cost of ownership (TCO)?
A 100,000-hour lifetime is equivalent to over 11 years of 24/7 operation. For industrial systems designed for longevity, this drastically reduces maintenance cycles and replacement costs, making it a more economical choice over the product's lifespan compared to displays with shorter-lived backlights.
Is the WLED backlight replaceable on this model?
Yes, the datasheet indicates the WLED backlight unit is replaceable. This is a significant feature for extending the service life of the entire display assembly, particularly in mission-critical applications where minimizing downtime is paramount.
Can this display be used in a system that outputs 6-bit color data?
Absolutely. The LVDS interface is configurable for either 6-bit (262,144 colors) or 8-bit (16.7 million colors) RGB data, providing flexibility for integration with various controllers and legacy systems without requiring external signal conversion.
Technical Deep Dive
A Closer Look at the Engineering Behind its Wide Viewing Angle
The standout performance of the NL10276BC16-06D is fundamentally tied to its UA-SFT panel technology. Unlike conventional Twisted Nematic (TN) displays where liquid crystals twist perpendicularly to the screen, SFT technology aligns the crystals horizontally. When voltage is applied, these crystals rotate in the same plane—hence the term "in-plane switching."
Think of it like opening and closing a set of Venetian blinds. In a TN panel, the "slats" twist open, which can distort the view from an angle. With SFT, the slats slide sideways. This simple change in movement mechanism is profound. It ensures that light is blocked or passed through more uniformly, regardless of the viewing direction. The engineering result is a stable, consistent image with minimal color distortion, which is indispensable for applications in industrial automation and control, where misinterpreting a value due to color shift could have operational consequences.
Strategic Advantage
Investing in Long-Term Operational Integrity
Selecting a display like the NL10276BC16-06D is a strategic decision that prioritizes long-term operational integrity over initial component cost. In the context of the growing demand for smarter, more autonomous industrial systems, the reliability of the Human-Machine Interface is a critical link in the chain of command. This display's certified performance across wide temperature ranges, its extended backlight life, and its superior optical characteristics provide the engineering foundation needed to build systems that are not only powerful but also exceptionally dependable in the field. This focus on durability and performance ensures a lower total cost of ownership and greater end-user confidence. You can explore more about the importance of industrial-grade components in our guide on The Ultimate Guide to TFT-LCD.
