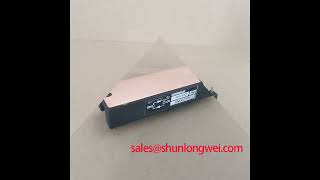

PAH200N8 Cosel 1200V 200A Power Module

Content last revised on September 11, 2026

Transient Dynamics and Electrical Design: Assessing FIT and SEB Exposure on PAH200N8

With the cabinet isolated and discharged, first compare the cold terminal resistance and diode paths of the installed unit against the equipment schematic before fitting a PAH200N8. This Cosel power module is rated at 1200.0 V and 200.0 A, with Power Module construction, as stated in the official datasheet specifications. Confirm that terminal designations, mechanical footprint, control connections, and the DC bus operating envelope match the original assembly documentation before any replacement decision.

The 1200.0 V voltage rating defines an important electrical boundary, but it does not by itself establish a safe operating margin for a complete inverter, welding power source, or induction heating supply. The installed DC bus level, switching overshoot, regenerative events, cable inductance, clamp network response, and control timing must all be assessed at system level. Engineers should capture collector-to-emitter voltage during representative switching events and compare the observed peak with the module rating under the actual operating load.

No manufacturer-specific terrestrial neutron, Single Event Burnout, altitude derating, or Failures in Time data are included in the stated official parameter set for PAH200N8. A numerical FIT calculation would therefore not be a valid product claim. At locations above 2000 m, the equipment designer should review enclosure cooling, air insulation spacing, contamination level, and local installation requirements rather than applying an assumed module derating rule.

For field troubleshooting, inspect whether repeated trips occur during load transients, output short-circuit events, or abrupt current changes. Oscilloscope evidence should include the DC bus, gate-to-emitter signal, collector-to-emitter waveform, and controller fault output measured with appropriate isolated techniques. A recurring peak-voltage event may indicate excess commutation inductance, insufficient clamping response, degraded DC-link capacitors, or an altered gate-drive path. Each possibility should be checked against a known-good phase or a verified reference waveform.

Keep the power loop physically compact where the system layout permits, maintain designed clearance around high-voltage conductors, and inspect busbar joints for heat discoloration or loss of fastening force. Metal-oxide varistors and other surge-suppression elements should be evaluated as part of the complete protection network. Their role is system dependent, and their clamping behavior must be verified against the actual DC-bus transient rather than assumed from a nominal marking.

For broader maintenance and switching assessment methods, technicians can use The Ultimate IGBT Knowledge Base as a practical reference alongside the original equipment documentation.

Assembly Integrity and Layout Architecture: Preventing Overvoltage Trips with PAH200N8

Before mounting the PAH200N8, clean the heatsink contact area and inspect the module base interface for trapped debris, residue, corrosion, or uneven thermal compound. A contaminated mounting plane can raise thermal resistance and create unequal stress across the assembly. The module should sit flat before terminal hardware is tightened, and power conductors should not impose a bending load on the package terminals.

⚠️ Maintenance Note: Periodically monitor terminal temperature rise and confirm that the heatsink airflow path remains free of dust accumulation and moisture-related deposits.

In inverter systems that include a braking branch, the braking switch and resistor are selected from the measured regenerative energy, DC-link voltage behavior, repetition pattern, resistor thermal capability, and protective trip sequence. This is an engineering recommendation, not a PAH200N8 factory specification. The braking device must be checked as a coordinated circuit with its gate driver, current sensing, resistor enclosure, wiring route, and controller response. A resistor that is electrically intact may still be unsuitable if its thermal mounting or ventilation has deteriorated.

For industrial inverter welders and medium-frequency induction heating equipment, switching frequency and cooling airflow affect the loss distribution of the complete power stage. The stated 200.0 A current rating should not be treated as an unconditional operating current at every switching frequency or enclosure temperature. When integrating the module, designers should validate current waveform, heatsink temperature, airflow condition, and switching behavior under the actual duty cycle. Inspection should include fan condition, blocked ducts, aged thermal interface material, and loose busbar hardware.

When hardware substitution is being evaluated, MBM200JS12EW can be reviewed as a separate replacement candidate. Its terminal arrangement, electrical characteristics, thermal interface, gate-drive requirements, and protection coordination must be verified against the original equipment design before use.

PAH200N8 Thermal Electrical Optimization: Static and Dynamic Current Distribution

Parallel power paths require more than matching nominal current capability. Static current distribution can be influenced by the positive temperature coefficient associated with IGBT conduction behavior in applicable operating regions, while dynamic distribution is strongly affected by gate-loop symmetry, individual stray inductance, driver propagation timing, and differences in power-path resistance. The design should treat these as separate checks because acceptable static sharing does not prove balanced switching current.

For an installed PAH200N8 assembly, compare phase conductor length, busbar geometry, gate-return routing, and driver connection quality before attributing unequal heating to the module itself. A visibly hotter parallel path may be associated with contact resistance, unequal cooling, timing variation, a damaged gate resistor, or a measurement location that does not represent the semiconductor junction condition. Thermal imaging is useful when correlated with current probes and switching waveforms, but it should not be used as the only diagnostic basis.

The interface between the module and heatsink deserves scheduled attention during preventive maintenance. Replace dried or displaced thermal compound according to the equipment service procedure, keep the contact surface clean, and tighten mounting hardware evenly in the specified sequence. General industry mounting torque guidance cannot replace the original module mechanical documentation because screw size, washer arrangement, baseplate design, and heatsink material are system specific.

Power module thermal performance also depends on substrate and package design, which should not be inferred from external appearance. For background on ceramic substrate technologies used in power electronics, see Kyocera Silicon Nitride Substrates for Power Modules. That resource provides general technology context and does not define the internal construction of PAH200N8.

Transient Dynamics and Electrical Design: Dynamic Gate Impedance Control for PAH200N8

Gate-drive behavior should be verified at the module terminals, not only at the controller output connector. Long driver leads, shared return paths, loose terminal hardware, and poorly controlled routing can alter the actual gate waveform during high-current switching. In a bridge arrangement, rapid collector-voltage movement can couple through device capacitances and encourage unintended turn-on of the opposite switch. Dedicated active Miller-clamp functions and negative gate bias are common design considerations where supported by the selected driver architecture, but the required voltage, impedance, timing, and clamp arrangement must be established through system testing and the applicable driver documentation.

During fault investigation, inspect gate resistors, driver-supply stability, isolation barriers, connector seating, and the relationship between command timing and measured gate voltage. A gate waveform that differs from a known-good channel may indicate impedance imbalance, a driver fault, or interference from the power loop. Verify the waveform with suitable probes and compare it during both normal loading and controlled transition conditions.

Maintain separation between sensitive control conductors and high-current switching paths where the cabinet architecture allows. Check for condensation, conductive dust, and damaged insulation around gate-drive connectors, especially after seasonal temperature changes or prolonged equipment shutdown. The PAH200N8 rating of 1200.0 V and 200.0 A remains the official module specification, while cross-conduction prevention remains a responsibility of the complete gate-drive, protection, layout, and commissioning process.
