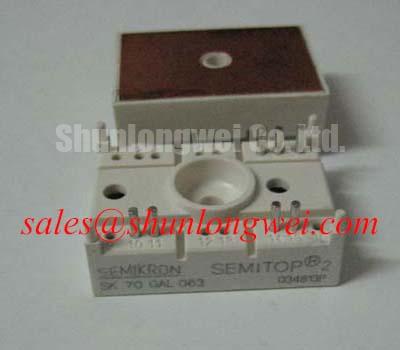

SK70GAL063 Features .Eompact design .One screw mounting .Heat transfer and isolation through direct copper bonded aluminium oxide ceramic (DCB) .High short circuit capability .Low tail current with low temperature dependence Typical Applications* .Switching(not for linear use) .Inverter .Switched mode power supplies .UPS Maximum ratings and characteristics .Absolute maximum ratings (Tc=25°C unless without specified) Collector-Emitter voltage Vces:600V Gate-Emitter voltage VGES:±20V Collector current Ic:81A Collector current Icp:200A Collector-Emitter voltage VCES:2500V Operating junction temperature Tj:+150°C Storage temperature Tstg :-40 to +125°C Semikron IGBT Module200A/600V/±20V
