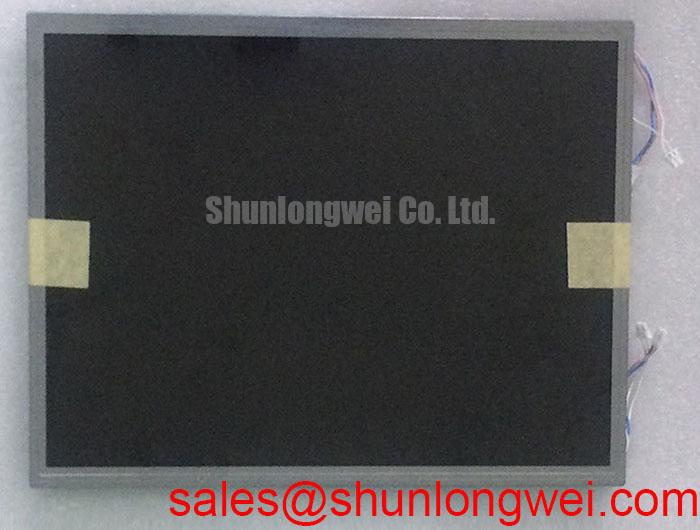

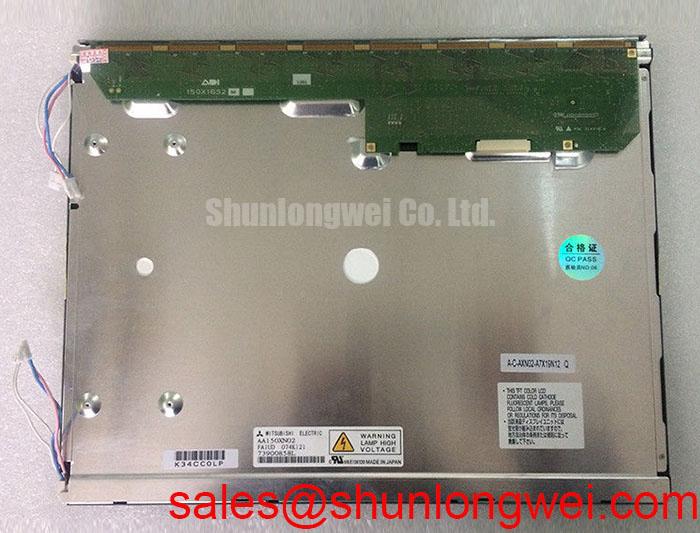

#Mitsubishi, #AA150XN01, #LCD_Display, #LCD, Mitsubishi 15 inch LCM 1024×768 250 450:1 75/75/50/60 262K/16.7M CCFL LVDS
Manufacturer: MitsubishiModel
Name: AA150XN01 Compatible Model 1 Compatible
Screen Size: 15.0 inch
Screen Type: LCM, a-Si TFT-LCD
Pixel Number: 1024(RGB)×768 (XGA) Arrangement RGB Vertical Stripe
Active Area(mm): 304.128 × 228.096 (H×V)
Outline(mm): 326 × 255 × 16.4 (H×V×D)
Bezel Area(mm):308.1 × 232.1 (H×V)
TreatmentAntiglare, Hard coating (3H)
Luminance: 250 cd/m² (Typ.)
Contrast Ratio: 450 : 1 (Typ.) (TM)
Viewing Angle: 75/75/50/60 (Typ.)(CR≥10) Left / Right / Up / Down
Mass: 1.29Kgs (Typ.) Used for Industrial Application
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Signal Type LVDS (1 ch, 6/8-bit) , Connector , 20 pins
Voltage Supply: 3.3V (Typ.)
Max. Ratings Storage Temp.: -20 ~ 80 °C Operating Temp.: -20 ~ 70 °C
