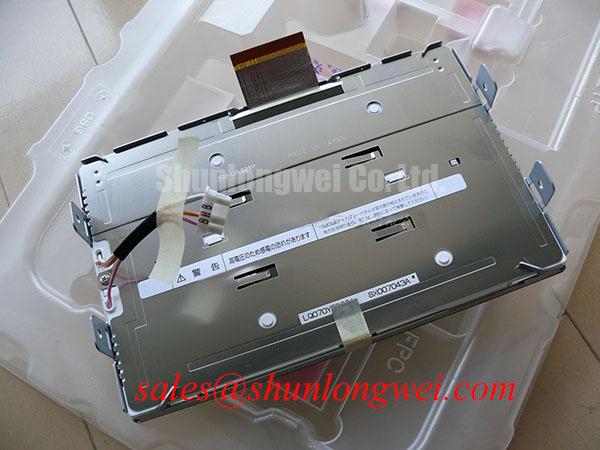

Sell LQ070Y5DG01 Sharp LCD Display

#Sharp, #LQ070Y5DG01, #LCD_Display, #LCD, Sharp LQ070Y5DG01 SHARP 7.0inch Panel 800×480 250:1 262K CCFL TTL

· Categories: LCD Display

· Manufacturer: Sharp

· Price: US$

· Date Code: 2022+

. Available Qty: 702

Pin It

Email: sales@shunlongwei.com

Whatsapp: 0086 189 2465 1869

Tags:

-- OR --

LQ070Y5DG01 Specification

Sell LQ070Y5DG01, #Sharp #LQ070Y5DG01 Stock, Sharp LQ070Y5DG01 SHARP 7.0inch Panel 800×480 250:1 262K CCFL TTL, #LCD_Display, #LCD, #LQ070Y5DG01

Email: sales@shunlongwei.com
URL: https://www.slw-ele.com/lq070y5dg01.html

Panel Brand : Sharp

Panel Model : LQ070Y5DG01

Resolution : 800(RGB)×480 , WVGA

Display Mode : TN, Normally White, Transmissive

Active Area : 152.4×91.44 mm

Outline : 172.2×110.5×10.15 mm

Surface : Antiglare, Antireflection

Brightness : 530 cd/m² (Typ.)

Contrast Ratio : 250:1 (Typ.)

Display Colors : 262K (6-bit)

Response Time : 10/20 (Typ.)(Tr/Td)

Viewing Angle : 60/60/35/50 (Typ.)(CR≥10) (L/R/U/D)

Frequency : 60Hz

Lamp Type : 2 pcs CCFL

Signal Interface : Parallel RGB (1 ch, 6-bit)

Input Voltage : 5.3/3.3/13.0/-11.7/-13.7/-17.0V (Typ.)(VLS/VSH/VDD/VEE/VCC/VSS)

LQ070Y5DG01 inverter, LQ070Y5DG01 power supply, LQ070Y5DG01 electronic board, LQ070Y5DG01 VGA board, LQ070Y5DG01 touchscreen available.
