SKIIP32NAB12T49: Integrated 1200V IPM for High-Reliability Motor Drives
Executive Summary: Key Engineering Features
A Compact Power Core for Demanding Inverter Applications

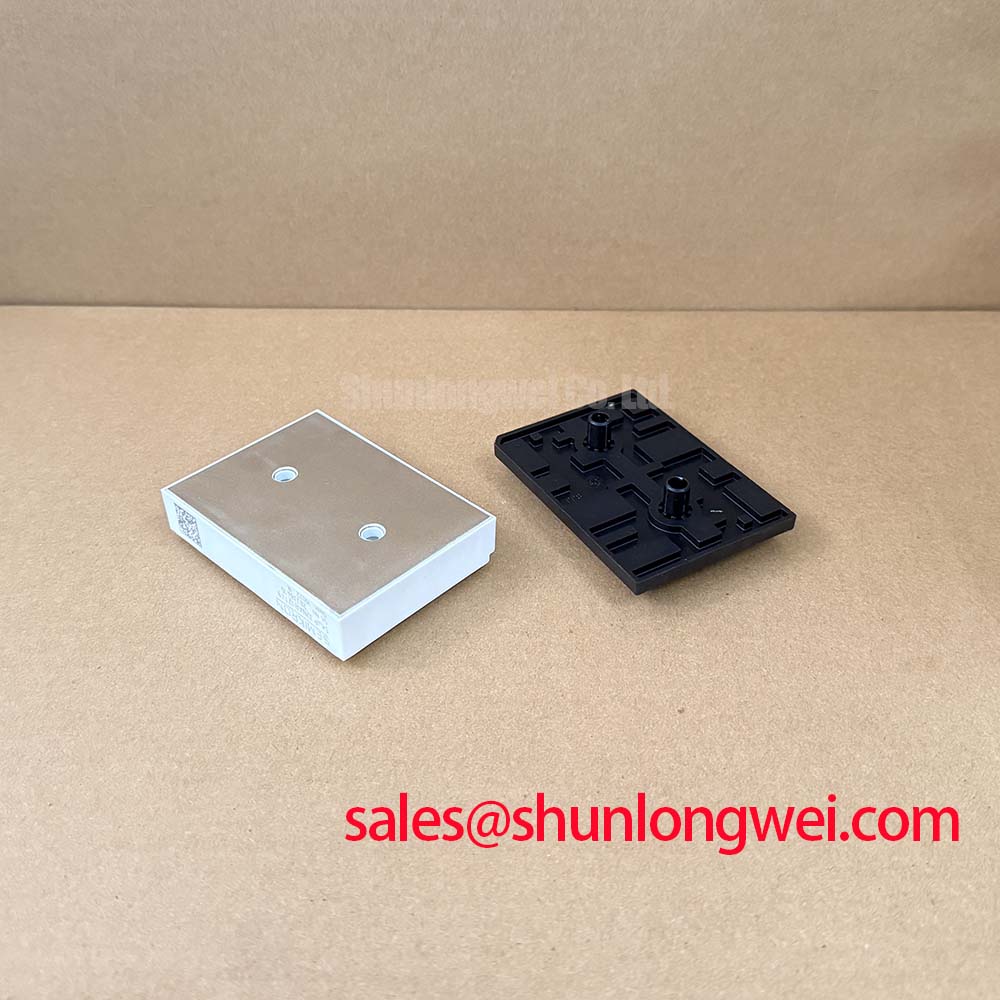

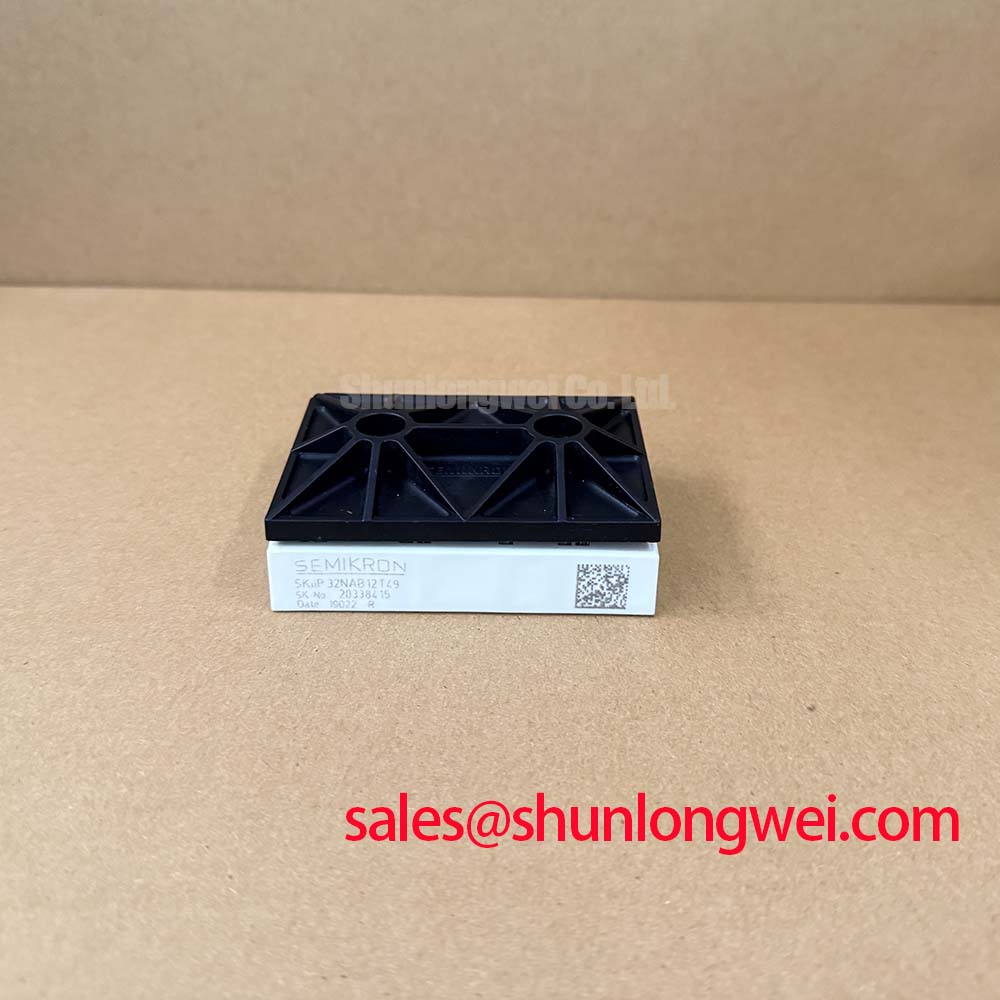

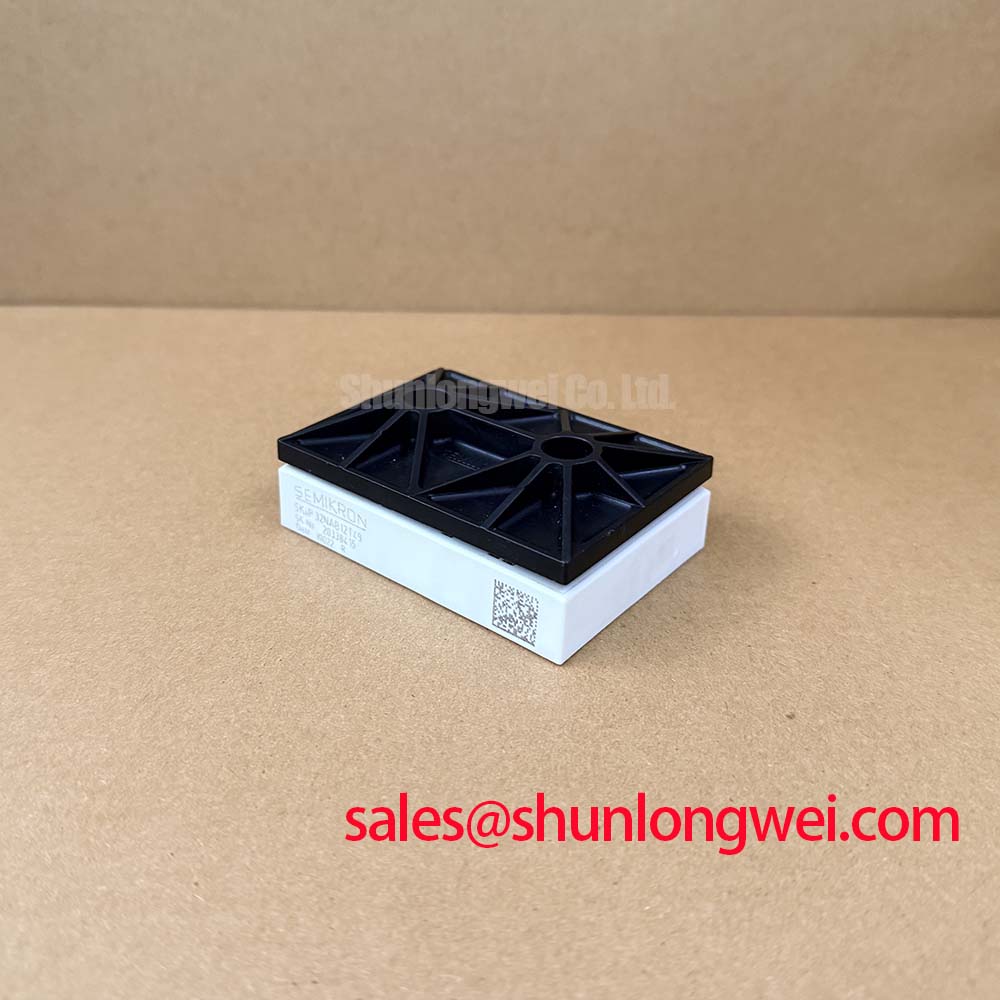

The SEMIKRON SKIIP32NAB12T49 is an intelligent power module (IPM) that delivers a fully integrated power stage for three-phase inverter applications. It provides a robust solution for engineers seeking to accelerate design cycles while enhancing system reliability. With core specifications of 1200V and 50A (nominal), this module integrates a three-phase rectifier, a braking chopper, and a three-phase inverter with Trench Field-Stop IGBT4 technology into a single, compact package. Key engineering benefits include simplified thermal management due to a baseplate-less design and optimized switching performance thanks to an integrated gate driver. This module directly addresses the challenge of reducing parasitic inductance and simplifying assembly in modern, power-dense Variable Frequency Drive (VFD) systems. For applications requiring a different current or voltage rating, SEMIKRON's SKiiP portfolio offers various alternatives, such as the SKiiP35NAB12T4V1 for higher current needs.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
The technical specifications of the SKIIP32NAB12T49 are tailored for efficiency and robust operation in industrial environments. The parameters below highlight the module's capability to minimize losses and manage heat effectively, which are critical factors for long-term operational reliability.
| Parameter | Symbol | Value | Conditions |
|---|---|---|---|
| Collector-Emitter Voltage | VCES | 1200 V | Tj = 25 °C |
| Continuous Collector Current | IC | 49 A | Ts = 70 °C |
| Peak Collector Current | ICRM | 100 A | tp < 1 ms |
| Gate-Emitter Voltage | VGES | ±20 V | |
| Collector-Emitter Saturation Voltage | VCE(sat) | 1.9 V (typ.) | IC = 50 A, Tj = 125 °C |
| Operating Junction Temperature | Tj | -40 to +150 °C |
Note: The parameters listed are summary values. It is imperative to consult the official datasheet for comprehensive specifications and performance curves under all operating conditions.
Application Scenarios & Value
Achieving System-Level Benefits in Compact Motor Drives
The SKIIP32NAB12T49 is engineered for applications where power density, reliability, and ease of integration are paramount. Its primary value is realized in the design of compact and efficient AC and DC servo drives, uninterruptible power supplies (UPS), and general-purpose industrial motor inverters.

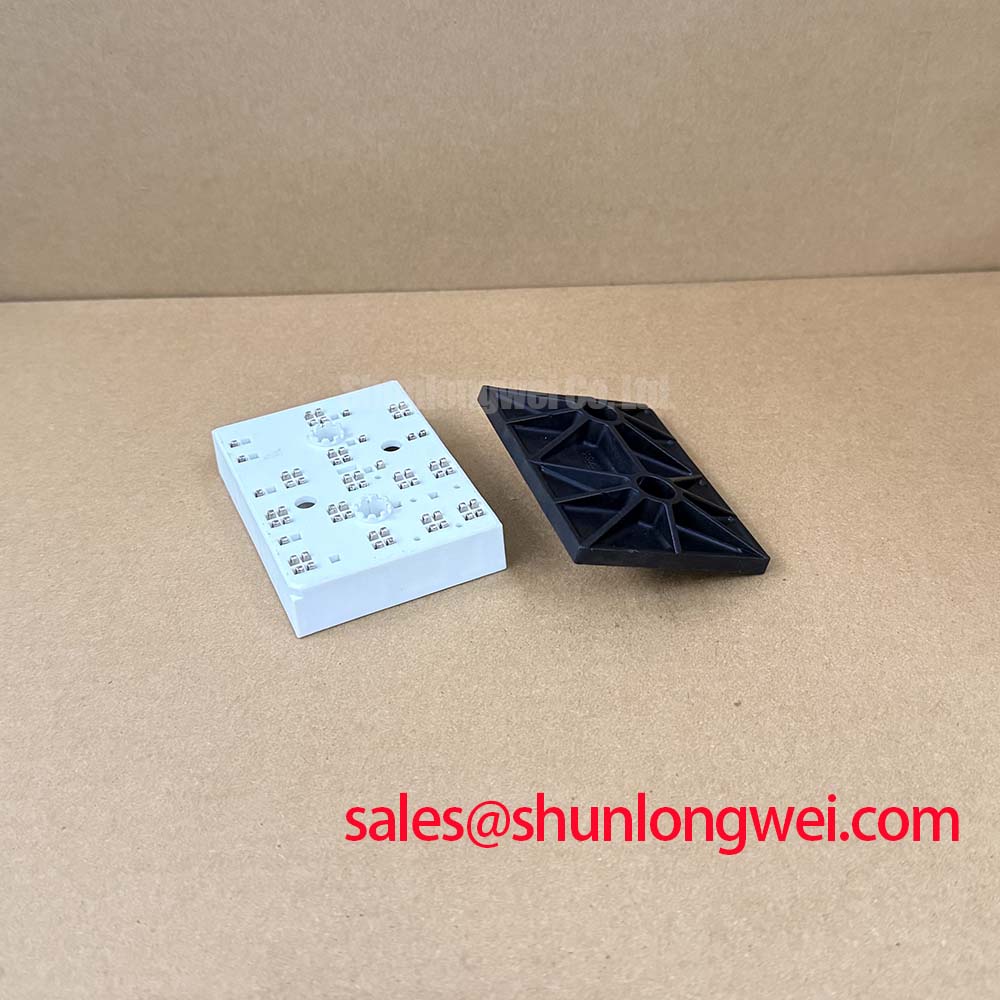

A high-fidelity engineering scenario for this module involves the development of a next-generation servo drive for automated CNC machinery. The challenge is to increase power output without enlarging the drive's physical footprint, which is often constrained within the machine's chassis. The SKIIP32NAB12T49's integrated nature is a key enabler here. By incorporating the gate driver and protection circuits, it eliminates the need for multiple discrete components and complex gate drive layout, significantly reducing PCB real estate. Furthermore, its pressure contact technology provides a direct and efficient thermal path to the heatsink. This superior thermal interface, compared to traditional baseplate modules, allows engineers to manage heat more effectively, enabling higher power dissipation in a smaller volume and improving the system's overall power cycling capability.
Frequently Asked Questions (FAQ)
What is the primary benefit of the integrated gate driver in the SKIIP32NAB12T49?
The integrated gate driver is performance-matched to the IGBTs, which minimizes parasitic inductances in the gate loop. This ensures cleaner, more reliable switching, reduces voltage overshoots, and simplifies the design process by removing the need for external driver development and qualification.
How does the pressure contact technology enhance thermal performance?
The baseplate-less pressure contact design eliminates a layer of thermal resistance typically found in conventional modules (the baseplate-to-heatsink interface). This creates a more direct and efficient path for heat to transfer from the semiconductor chips to the heatsink, resulting in lower operating junction temperatures and enhanced reliability under thermal cycling stress.
What does the "T4" in the part number signify?
The "T4" generally refers to the use of Trench Field-Stop IGBT4 technology. This generation of IGBTs is optimized for a balance between low collector-emitter saturation voltage (VCE(sat)) to reduce conduction losses and moderate switching speeds to control EMI, making it well-suited for motor drive applications that typically operate at frequencies up to 20 kHz.
Is the SKIIP32NAB12T49 suitable for high-frequency applications?
While optimized for motor drive frequencies (typically 2-16 kHz), its suitability for higher frequencies depends on the specific thermal management system and acceptable loss budget. The IGBT4 technology offers a good trade-off, but for applications requiring significantly higher switching frequencies, a detailed loss calculation using the datasheet's performance curves is essential to ensure the junction temperature remains within its Safe Operating Area (SOA).
Strategic Outlook
Integrating a complete CIB (Converter-Inverter-Brake) topology into a single, thermally efficient module like the SKIIP32NAB12T49 aligns with the industry's push towards more compact, reliable, and energy-efficient power conversion systems. For design teams, adopting such an integrated platform is a strategic move that can reduce assembly complexity and improve time-to-market. This approach allows engineering resources to be focused on higher-level system software and control algorithms, rather than on the intricacies of power stage layout and component matching. For systems requiring even higher integration, the 6MBP25VAA120-50 provides an alternative IPM solution.
