Content last revised on May 4, 2024

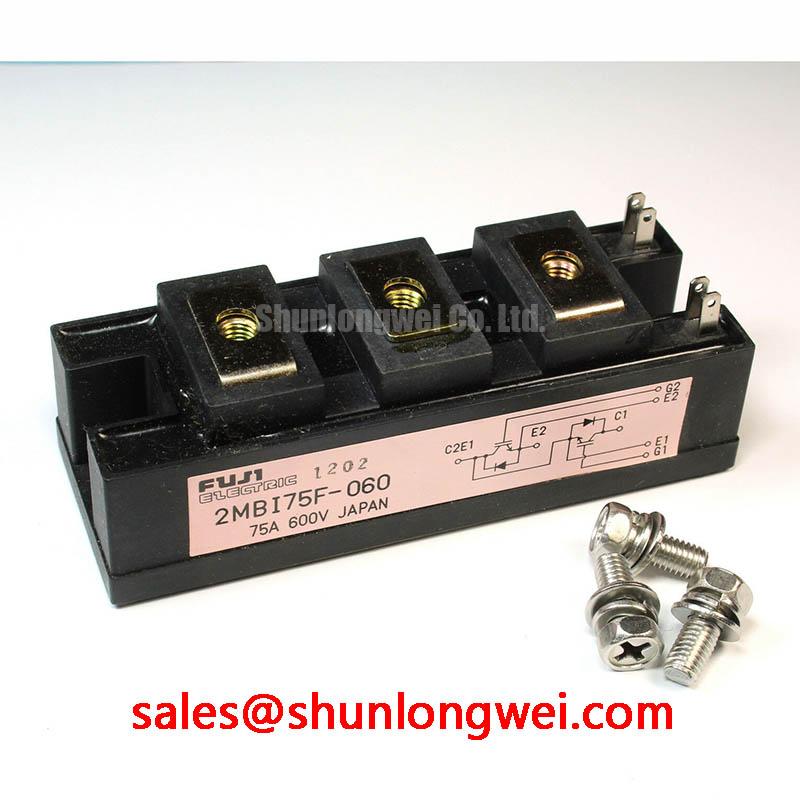

Manufacturer Part Number: 2MBI75F-060
Ihs Manufacturer: COLLMER SEMICONDUCTOR INC
Package Description: FLANGE MOUNT, R-XUFM-X7
Pin Count: 7
Manufacturer: Fuji Electric Co Ltd
Risk Rank: 5.84
Collector Current-Max (IC): 75 A
Collector-Emitter Voltage-Max: 600 V
Configuration: SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE
JESD-30 Code: R-XUFM-X7
Number of Elements: 2
Number of Terminals: 7
Package Body Material: UNSPECIFIED
Package Shape: RECTANGULAR
Package Style: FLANGE MOUNT
Polarity/Channel Type: N-CHANNEL
Qualification Status: Not Qualified
Surface Mount: NO
Terminal Form: UNSPECIFIED
Terminal Position: UPPER
Transistor Application: POWER CONTROL
Transistor Element Material: SILICON
Insulated Gate Bipolar Transistor 75A I(C) 600V V(BR)CES N-Channel M218 7 PIN
