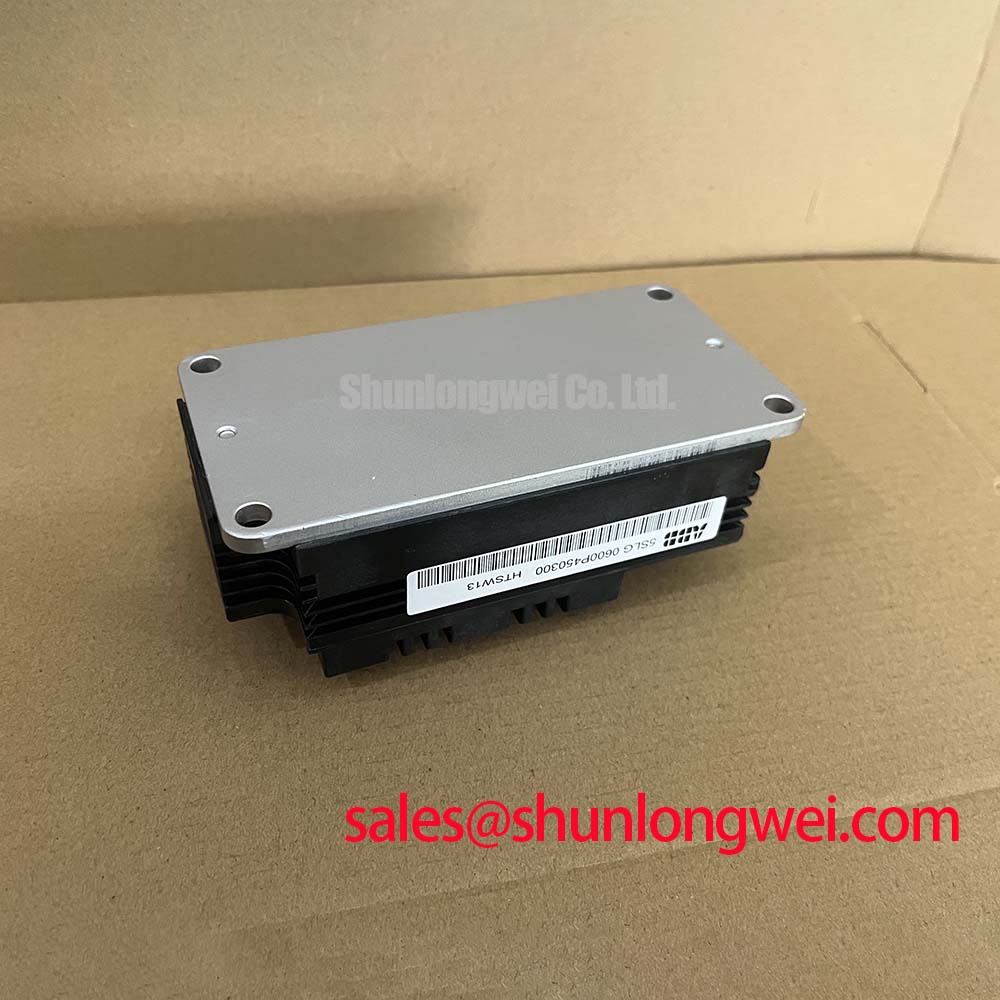

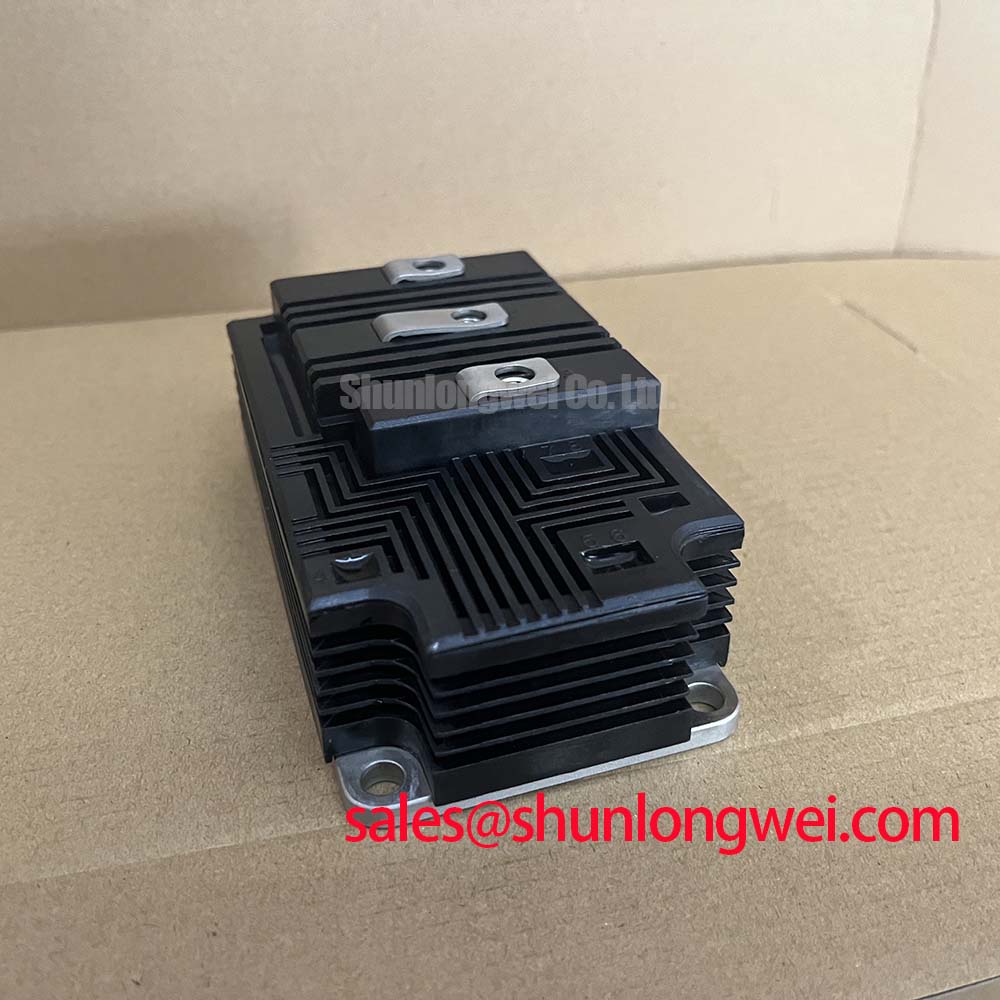

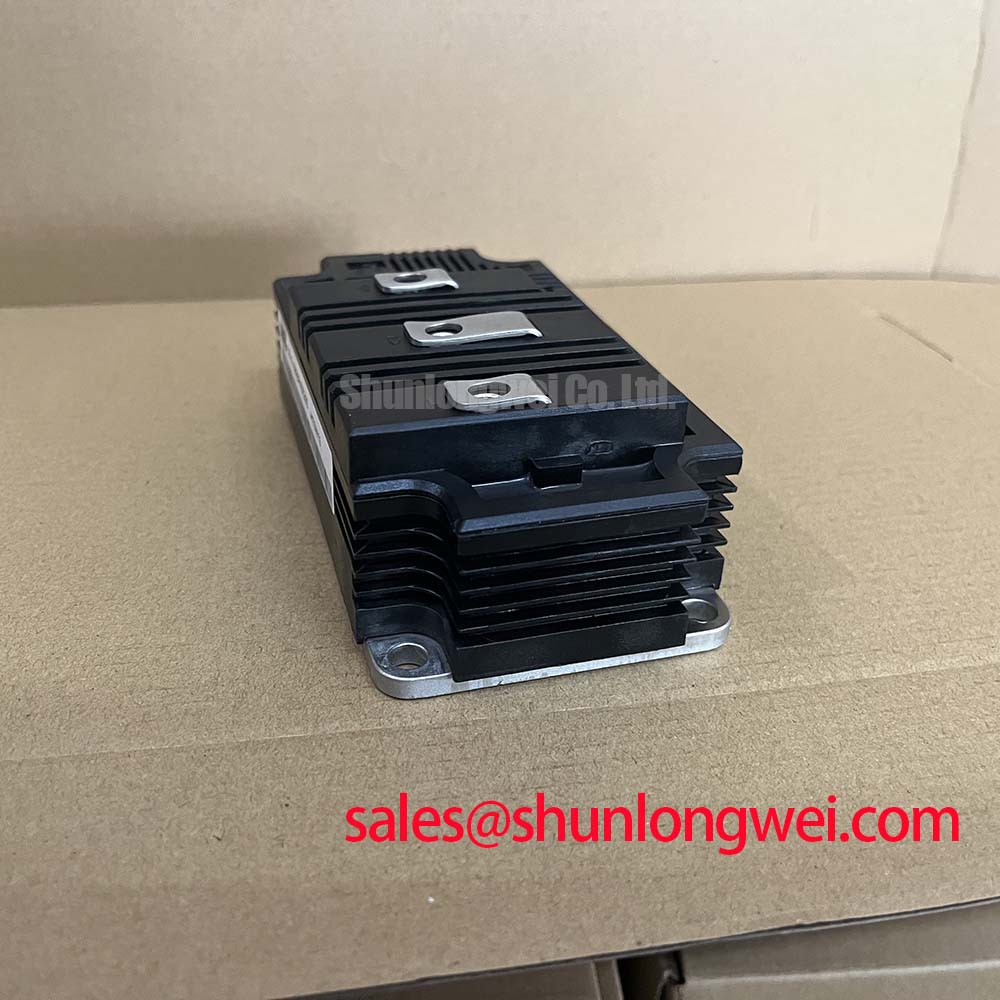

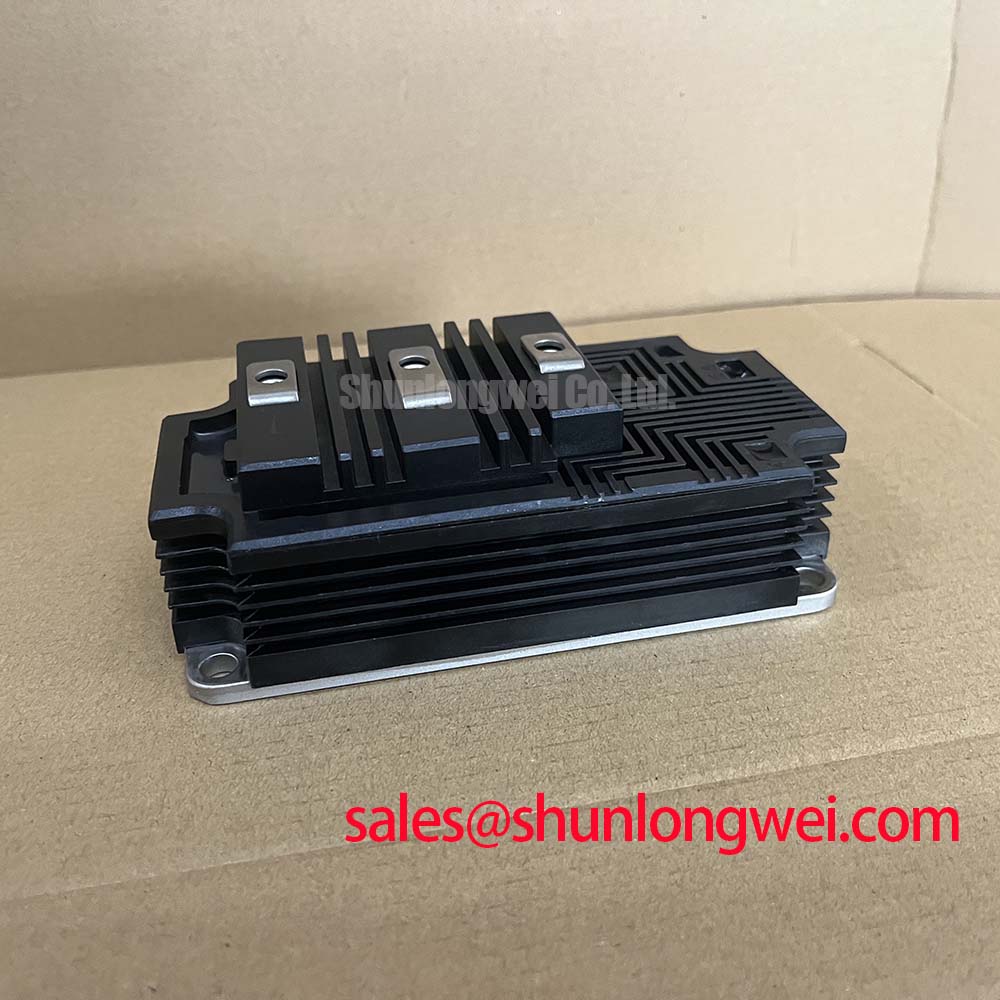

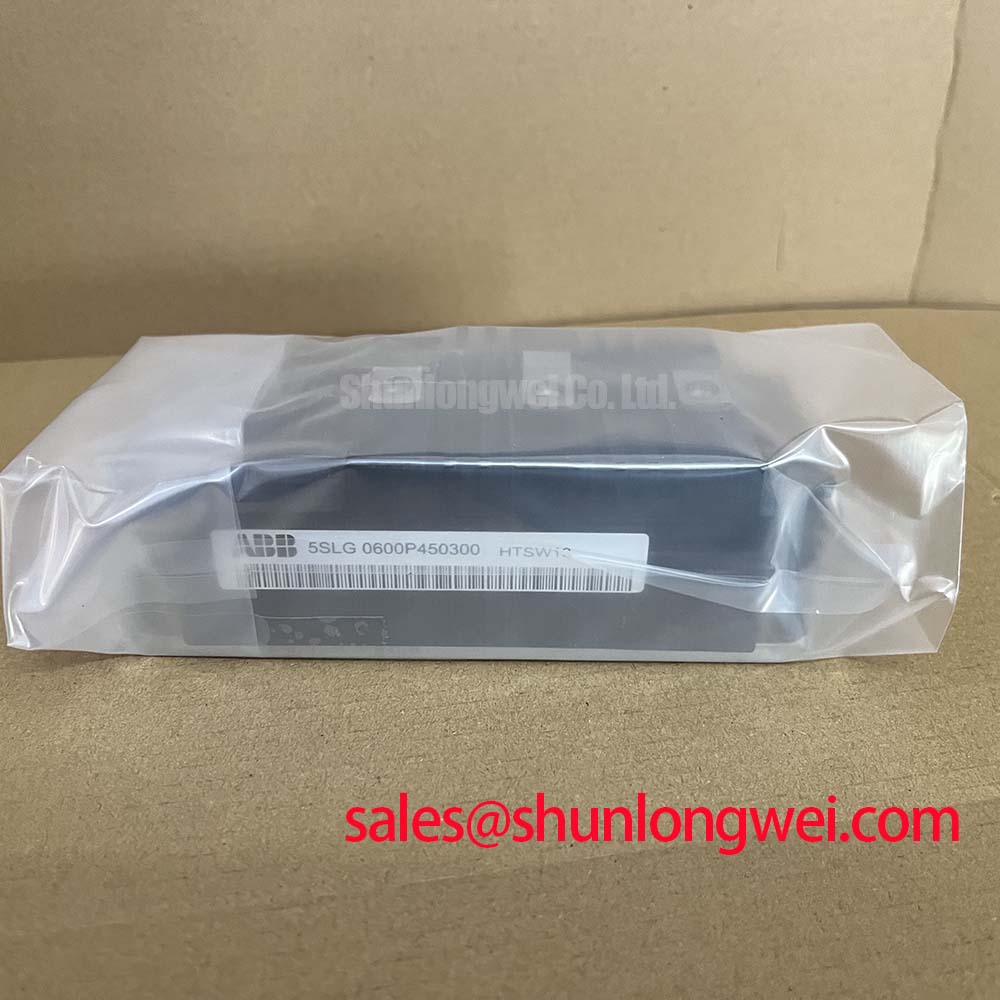

5SLG 0600P450300 | 4.5kV 600A Asymmetric IGCT for High-Efficiency Medium-Voltage Converters
Executive Summary: An Engineer's Overview
The 5SLG 0600P450300 is an asymmetric IGCT engineered to maximize power conversion efficiency and long-term reliability in demanding medium-voltage applications. This device leverages an advanced HPT+ platform and a robust press-pack design to deliver benchmark performance. Key specifications include: 4500V | 600A ITGQM | 6.5kA ITSM. The primary engineering benefits are maximized power density and a superior operational lifetime. Optimized specifically for Voltage Source Converter (VSC) topologies, its asymmetric structure allows for significantly reduced on-state losses without compromising forward blocking performance. For medium-voltage converters demanding maximum efficiency and operational lifetime, the 5SLG 0600P450300 IGCT is the definitive choice.
Application Scenarios & Value
System-Level Gains in Grid-Tied and Industrial Drive Applications
The 5SLG 0600P450300 IGCT is engineered for high-power, medium-voltage systems where efficiency and reliability are not just design goals, but critical operational and financial metrics. Its technical characteristics translate directly into tangible system-level advantages across several key sectors.
A prime engineering scenario is in the heart of a multi-megawatt Medium Voltage Drive (MVD) controlling a critical industrial process, such as a large pump or compressor. The challenge is twofold: minimizing the drive's energy losses to reduce operating expenditures and ensuring near-constant availability to prevent costly downtime. The 5SLG 0600P450300 addresses this directly. Its exceptionally low on-state voltage (VT0 = 1.55 V) and turn-off switching losses (Eoff) significantly reduce the thermal load, enabling designers to specify smaller, more cost-effective cooling systems and achieve higher overall drive efficiency. This directly impacts the total cost of ownership over the system's lifespan.
Furthermore, this IGCT is a cornerstone component for modern grid infrastructure, including:
- Grid-Tied Inverters: Essential for connecting large-scale renewable energy sources like wind and solar farms to the grid, where its high efficiency maximizes energy yield.
- FACTS Devices: In applications like a STATCOM (Static Synchronous Compensator), its fast switching and high reliability contribute to improved grid stability and power quality.
For applications demanding even higher current handling within the same voltage class, the related 5SNA1200G450300 offers an increased current rating.
Key Parameter Overview
Engineering Specifications for System Performance and Reliability
The performance of the 5SLG 0600P450300 is defined by a set of specifications optimized for high-power switching. The following parameters are critical for design engineers evaluating this device for their specific application.
| Key Electrical & Thermal Parameters | |
|---|---|
| Blocking Characteristics | |
| Repetitive Peak Off-State Voltage (VDRM) | 4500 V |
| On-State Characteristics | |
| Max. Turn-off Collector Current (ITGQM) | 600 A |
| Surge Non-Repetitive On-State Current (ITSM) | 6.5 kA (tp = 10 ms, Tj = 125°C) |
| On-state Threshold Voltage (VT0) | 1.55 V |
| On-state Slope Resistance (rT) | 1.55 mΩ |
| Thermal Characteristics | |
| Thermal Resistance, Junction-to-Case (Rth(j-c)) | 8.0 K/kW (Double-sided cooling) |
| Operating Junction Temperature (Tj op) | -40 to 125 °C |
Note: The parameters listed above are highlights. Engineers must consult the official datasheet for complete specifications and operating curves.
Download the 5SLG 0600P450300 datasheet for detailed specifications and performance curves.
Technical Deep Dive
The Engineering Advantage of the Hermetic Press-Pack Construction
A critical, yet often overlooked, aspect of power semiconductor performance is its packaging. The 5SLG 0600P450300 utilizes a hermetic press-pack housing, a design that offers fundamental advantages in reliability and thermal performance over conventional soldered modules. This construction is a key enabler for achieving long operational lifetimes in demanding applications.
Comparing a press-pack IGCT to a standard soldered module is like comparing a bolted structural beam to a welded one in a bridge that constantly flexes. The weld (solder) is a rigid point that can develop micro-cracks and eventually fail under repeated thermal expansion and contraction—a phenomenon known as solder fatigue. The bolted connection (press-contact), however, is designed to handle this stress, ensuring a reliable connection throughout the structure's lifetime. This inherent robustness is critical for improving the overall Power Cycling Capability.
This design also facilitates superior thermal management. By allowing for double-sided cooling, heat can be extracted from both the top and bottom surfaces of the device simultaneously. This significantly lowers the junction-to-case thermal resistance (Rth(j-c)), enabling the junction to run cooler for a given power dissipation or allowing for higher power throughput at the same junction temperature. What is the primary benefit of its press-pack design? Enhanced long-term reliability by eliminating solder fatigue.
Frequently Asked Questions (FAQ)
Design and Application Clarifications
How does the asymmetric blocking capability of the 5SLG 0600P450300 benefit inverter design?
This IGCT is optimized for modern Voltage Source Converter (VSC) topologies that utilize an anti-parallel freewheeling diode. By providing the full required forward blocking voltage (4500V) with only minimal reverse blocking capability, the silicon can be engineered to perfection for its primary task: achieving extremely low on-state conduction and switching losses. This specialization results in higher overall inverter efficiency compared to a symmetrical device in the same application.
What is the significance of the 6.5 kA ITSM rating for a grid-tied application?
The high surge current rating is a critical survivability metric. It ensures the device can withstand significant, short-duration fault currents, such as those from a nearby short-circuit on the electrical grid, without suffering catastrophic failure. This robustness is essential for system availability and reduces the risk of cascading failures in high-value assets like a STATCOM or a wind turbine's power converter.
What are the primary considerations for the mechanical mounting of a press-pack IGCT?
Proper mounting is paramount to performance and reliability. A specific, uniform clamping force must be applied across the device's pole-faces using a calibrated mounting clamp. This precise force, detailed in the datasheet, ensures optimal thermal and electrical contact between the IGCT and the heatsink. Deviating from the specified force can lead to increased thermal resistance or, in extreme cases, mechanical damage to the silicon. For a more general overview of power modules, an IGBT Module technology page can provide context.
Technical Support and System Integration
Your Engineering Partner
Integrating a high-performance component like the 5SLG 0600P450300 requires careful consideration of gate drive design, mechanical assembly, and thermal management. For detailed technical inquiries, application notes, or to discuss how this asymmetric IGCT can be integrated into your next high-power design, please contact our technical sales team for engineering support.
