Content last revised on November 29, 2024

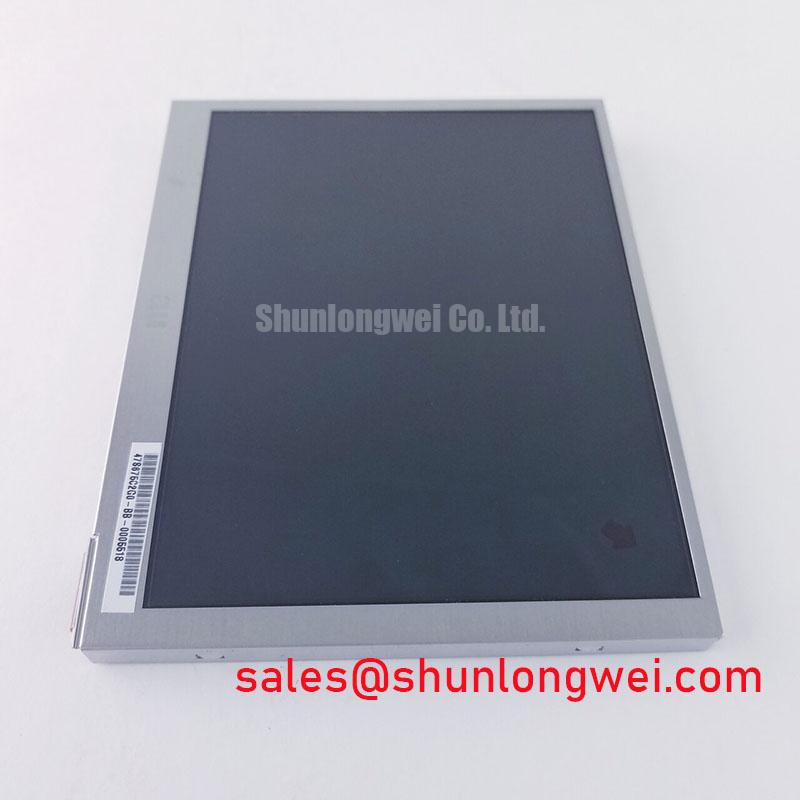

Panel Brand AUO
Panel Model A056DN01 V2
Panel Size 5.6 inch
Panel Type a-Si TFT-LCD, LCM
Resolution 320(RGB)×234, 71PPI
Pixel Format RGB Vertical Stripe
Display Area 113.28(W)×84.708(H) mm
Bezel Opening 116.08(W)×87.51(H) mm
Outline Size 126.5(W)×100(H) mm
Brightness500 cd/m² (Typ.)
Contrast Ratio 250:1 (Typ.) (TM)
Viewing Angle 50/50/30/50 (Min.)(CR≥10) Left / Right / Up / Down
Display Mode TN, Normally White, Transmissive
Best View on 6 o'clock
Response Time 15/20 (Typ.)(Tr/Td)
Display Colors Full color
Lamp Type1 pcs CCFL , 15K hours , Without Driver
Touch Screen Without
Panel Weight 145±10g
Application Digital Photo Frame Video Door Phone

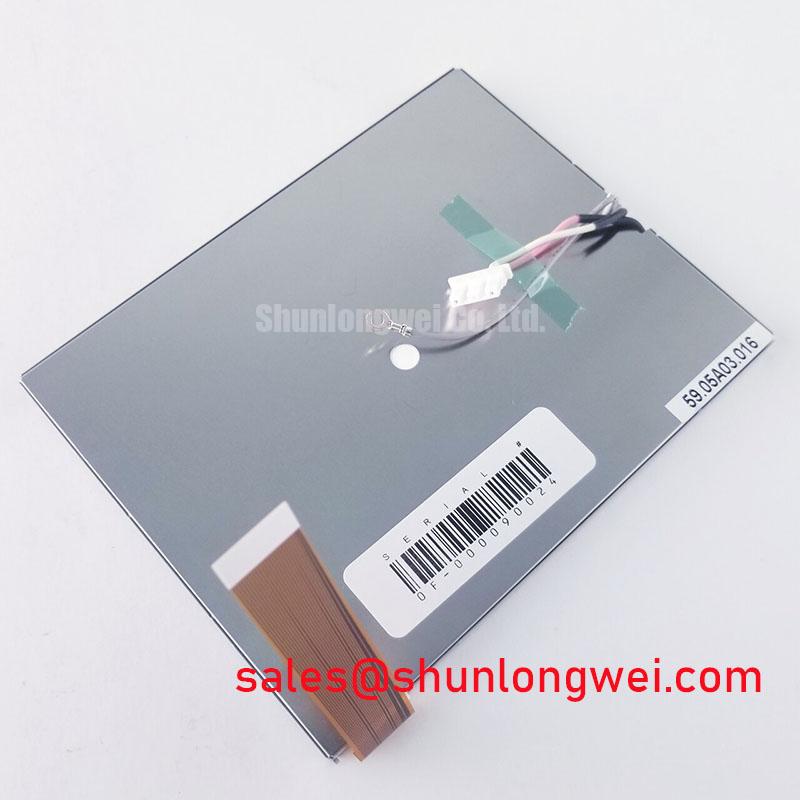

Signal Interface TFT Specific Analog RGB , 26 pins FPC
Input Voltage 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL)
Environment Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -25 ~ 60 °C
