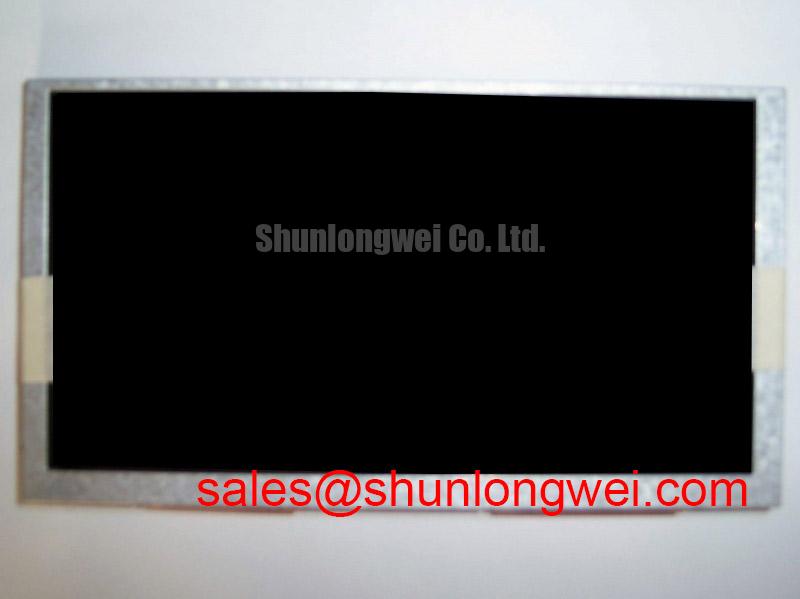

AUO A061VW01 V0 LCD Display

AUO A061VW01 V0: Rugged 6.1" industrial display. Engineered for extreme -30~85°C operation and wide-view AMVA clarity in demanding applications.

· Categories: LCD Display
· Manufacturer: AUO
· Price: US$
· Date Code: 2022+
. Available Qty: 633
Like
Tweet
Pin It
4k
Email: sales@shunlongwei.com
Whatsapp: 0086 189 2465 1869
Tags:

Contact us To Buy Now!

A061VW01 V0 Specification

AUO A061VW01 V0 | Extreme Temperature & Wide-View Industrial Display

The AUO A061VW01 V0 is a 6.1-inch industrial TFT-LCD engineered for applications where reliability and visual clarity are non-negotiable. It stands apart by delivering exceptional performance across an extreme temperature range and providing superior image consistency from any viewing angle. This makes the A061VW01 V0 a premier choice for demanding environments such as automotive dashboards, outdoor kiosks, and critical industrial control systems.

Technical Deep Dive: Unpacking the A061VW01 V0's Core Strengths

Advanced MVA Technology for Uncompromised Viewing Angles

  • Technical Principle: The A061VW01 V0 utilizes Advanced Multi-domain Vertical Alignment (AMVA) technology. Unlike standard TN panels where liquid crystals twist horizontally, AMVA aligns them vertically in multiple domains within each pixel. When a voltage is applied, the crystals tilt, creating a clear light path. This multi-domain structure ensures that light is distributed evenly in all directions.
  • Application Value: This translates directly to exceptionally wide viewing angles (80/80/80/80) with minimal color shift. For operators viewing a control panel from the side or for passengers in a vehicle, the display remains perfectly legible and color-accurate. This is crucial for applications where misinterpreting data can have serious consequences. Learn more about the advantages of wide viewing angle LCD technologies.

Built for Extremes: -30°C to 85°C Operational Range

  • Technical Principle: Achieving this broad operating temperature range involves more than just the liquid crystal itself. The A061VW01 V0 incorporates specially formulated polarizers, robust driver ICs, and a durable WLED backlight system, all designed to withstand thermal stress without degradation in performance or lifespan.
  • Application Value: This solves a critical engineering challenge for devices deployed outdoors or in unconditioned industrial settings. It eliminates the need for costly and complex heating or cooling subsystems, thereby reducing the overall bill of materials (BOM), simplifying system design, and removing potential points of failure. This capability is a hallmark of a true industrial LCD module.

Application Scenarios: Where the A061VW01 V0 Excels

  • Automotive & Transportation: Ideal for in-dash clusters, infotainment systems, and diagnostic tools that must function reliably from a cold start in winter to peak summer heat inside a parked vehicle. The high contrast and wide viewing angles ensure driver clarity and safety.
  • Industrial Automation: A perfect fit for Human-Machine Interfaces (HMIs) on factory floors where ambient temperatures fluctuate and machinery generates significant heat. The display’s immunity to temperature-induced image lag ensures real-time process monitoring.
  • Marine & Avionics: In cockpits and on ship bridges, reliable operation across a wide temperature spectrum is paramount. The AMVA panel ensures that critical navigation and system data are clearly visible to multiple crew members from different positions.
  • Outdoor Payment & Vending Systems: Guarantees consistent operation and screen readability in unattended kiosks exposed to the elements, from freezing winters to direct summer sunlight, enhancing user experience and machine uptime.

Key Technical Specifications

ParameterValue
ModelA061VW01 V0
Resolution480(RGB)×234
Brightness330 cd/m² (Typ.)
Contrast Ratio600:1 (Typ.)
Viewing Angle80/80/80/80 (Typ.)(CR≥10)
Operating Temperature-30 ~ 85 °C
Storage Temperature-40 ~ 95 °C
Interface TypeAnalog RGB + Composite Video (NTSC/PAL)
BacklightWLED
DatasheetA061VW01 V0 Datasheet

Selecting the Right Display: A061VW01 V0 vs. Standard TN Panels

While standard TN (Twisted Nematic) panels may suffice for basic, cost-sensitive indoor applications, they fall short in professional and industrial contexts. A TN panel suffers from severe color inversion and brightness loss when viewed off-axis, and its narrow temperature range makes it unsuitable for harsh environments. The AUO A061VW01 V0, with its AMVA technology and industrial-grade temperature range, is the definitive choice for any system where data integrity, reliability, and superior visual performance are required. Investing in the A061VW01 V0 mitigates risks associated with display failure and ensures a long, dependable service life for your product.

FAQ: Common Questions about the A061VW01 V0

  • What is the benefit of the Analog RGB + Composite interface?This dual-mode interface provides excellent flexibility for both legacy and modern systems. The composite video input (NTSC/PAL) is perfect for integrating camera feeds or analog video sources, while the analog RGB offers a straightforward connection for many embedded graphics controllers without the complexity of digital interfaces.
  • Can this display be customized with a touch panel?Absolutely. The robust construction and stable optical properties of the A061VW01 V0 make it an ideal candidate for integration with industrial-grade resistive or projected capacitive (PCAP) touch panels. This creates a durable and responsive HMI solution. Contact Us for a Quote to discuss custom assembly options.

For systems demanding uncompromising performance in challenging conditions, the A061VW01 V0 offers a proven and reliable solution. Explore more of our industrial LCD modules to find the perfect display for your next project.
