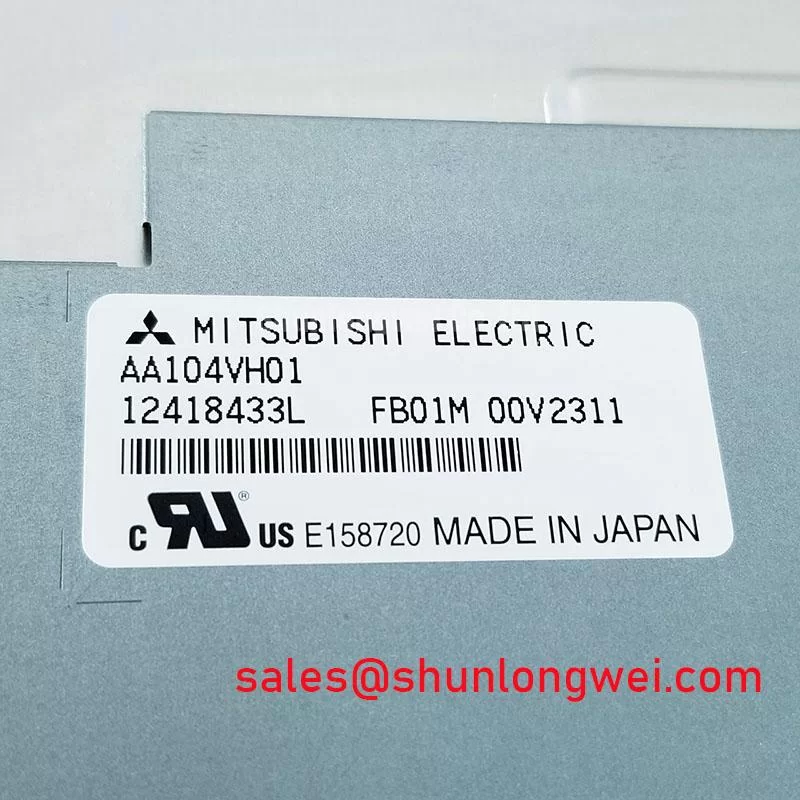

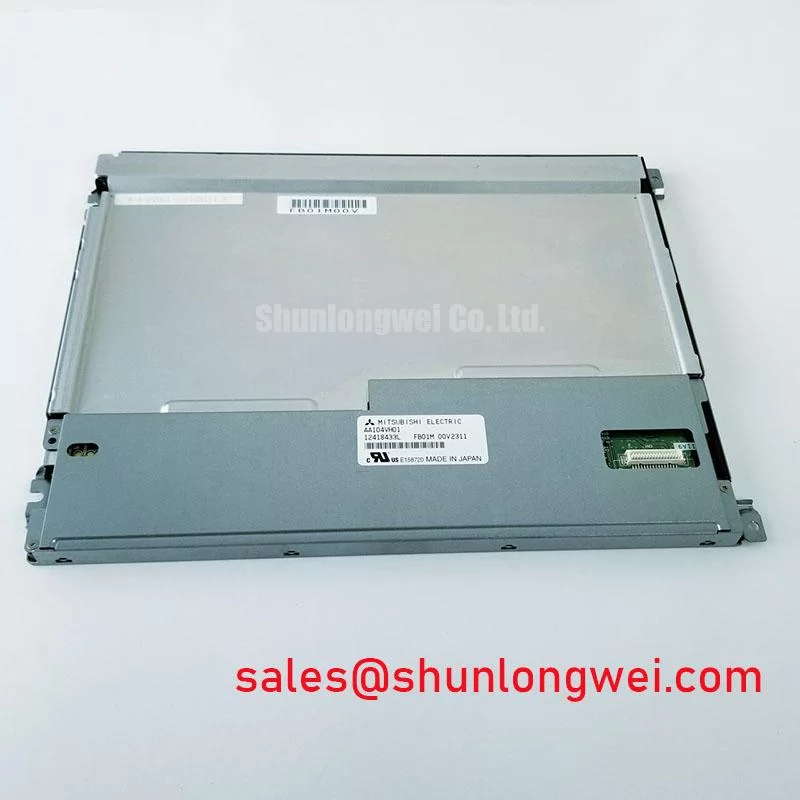

Mitsubishi AA104VH01 | High-Brightness 10.4” Display for Uncompromised Visual Clarity
The Mitsubishi AA104VH01 is a 10.4-inch SVGA TFT-LCD module engineered not just to display information, but to deliver it with exceptional clarity and reliability in the most demanding industrial environments. Designed for longevity and performance, this display is the definitive choice for next-generation Human-Machine Interfaces (HMIs), medical diagnostic equipment, and precision instrumentation where visual accuracy is non-negotiable. It moves beyond standard specifications to solve real-world challenges of glare, extreme temperatures, and long-term operational demands.
Technical Deep-Dive: Where Performance Meets Durability
The true value of the Mitsubishi AA104VH01 lies in its core technologies that directly address common industrial pain points.
- Superior Luminance and Contrast: Boasting a high brightness of 700 cd/m² and a 700:1 contrast ratio, this panel cuts through the ambient glare of factory floors, outdoor kiosks, or brightly lit medical labs. This isn't just about being bright; it's about maintaining crisp, legible text and accurate color representation, which is critical for reducing operator error and ensuring correct diagnostic interpretation. The integrated LCD backlight system is optimized for both high output and an exceptional 100,000-hour lifetime.
- Wide Operating Temperature Range: Standard displays often fail when exposed to the temperature extremes found in industrial settings. The AA104VH01 operates flawlessly from -20°C to +70°C. This robustness is achieved through the use of specialized liquid crystal fluid and durable electronic components, making it a reliable HMI solution for unheated warehouses, outdoor control panels, or heat-generating industrial machinery without requiring complex and costly climate control systems.
Diverse Applications, Consistent Value
The advanced features of the AA104VH01 translate into tangible benefits across various sectors, making it a versatile and powerful Industrial LCD module.
- Industrial HMIs and Process Control: In a manufacturing plant, this display provides operators with a consistently clear view of process data, alarms, and controls, regardless of shifting light conditions. Its durability ensures minimal downtime, enhancing overall equipment effectiveness (OEE).
- Medical Imaging and Diagnostics: For medical devices, color accuracy and wide viewing angles are paramount. The AA104VH01 allows multiple clinicians to view patient data from different positions without color distortion, supporting collaborative and accurate diagnoses.
- Test and Measurement Instruments: Precision instruments demand a display that can render complex graphs and fine data points without ambiguity. The high resolution and contrast of this panel ensure that engineers and technicians can trust the data they see.
- Transportation and Marine Systems: In vehicle or marine bridge consoles, readability under direct or reflected sunlight is a safety-critical feature. This display's high brightness makes it an ideal component for such demanding applications.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model | AA104VH01 |
| Screen Size | 10.4 inch |
| Resolution | 640(RGB)×480, SVGA |
| Brightness | 700 cd/m² |
| Contrast Ratio | 700:1 |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) |
| Operating Temperature | -20 ~ 70 °C |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins |
| Backlight | WLED, 100K hours, With LED Driver |
| Datasheet | Download AA104VH01 Datasheet |
Product Comparison and Selection Advice
Mitsubishi AA104VH01 vs. Standard Commercial Displays
While a commercial-grade 10.4" display might seem like a cost-effective alternative, the AA104VH01 provides a significantly lower total cost of ownership in professional applications. A key differentiator is its industrial build quality. Commercial panels typically have a narrow operating temperature range (e.g., 0~50°C) and a much shorter backlight lifespan (~20,000 hours). The Mitsubishi AA104VH01 is engineered for 24/7 operation in harsh conditions, backed by Mitsubishi's commitment to long-term product availability, which mitigates the risk of costly redesigns due to component obsolescence. For any serious industrial, medical, or long-life instrumentation project, the AA104VH01 is the superior engineering choice.
To integrate this high-performance display into your system or to discuss your specific application needs, please contact our technical team. For other high-reliability display solutions, explore our full range of industrial LCD modules.
