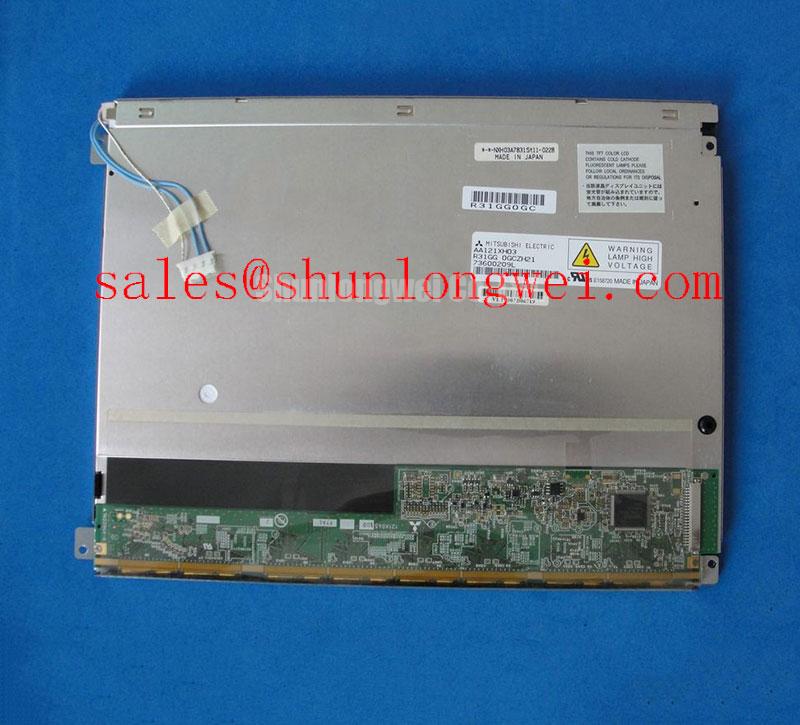

Brand Mitsubishi Model AA121XH03 Compatible Model 1 Compatible Diagonal Size 12.1 inch Type a-Si TFT-LCD, LCM Pixel Format 1024(RGB)×768 [XGA] 105PPI Configuration RGB Vertical Stripe Active Area 245.76(H)×184.32(V) mm Outline Dim .280(H)×210(V) ×12.5(D) mm Bezel Area 249.0(H)×187.5(V) mm Treatment Antiglare, Hard coating (3H) Luminance 320 cd/m² (Typ.) Contrast Ratio 550:1 (Typ.) (TM) View Direction 6 o'clock Response Time 6/19 (Typ.)(Tr/Td) Viewing Angle 65/65/45/75 (Typ.)(CR≥10) Left / Right / Up / Down Operating Mode TN, Normally White, Transmissive Support Color 262K/16.7M 40% NTSC Light Source CCFL [2 pcs] , 50K hours , W/O Driver Weight 720g (Typ.) Designed For Industrial Frame Rate 60Hz 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit Touch Panel Without Interface Type LVDS (1 ch, 6/8-bit) , 20 pins Connector Power Supply 3.3V (Typ.) Environment Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C AA121XH03 inverter, AA121XH03 power supply, AA121XH03 electronic board, AA121XH03 VGA board, AA121XH03 touchscreen available.
